MCP-Airflow-API

Use Claude, OpenWebUI, and other MCP clients to inspect and operate Apache Airflow through its REST API.

What is MCP-Airflow-API?

MCP-Airflow-API turns plain-language requests into Apache Airflow REST API calls. One server supports Airflow 2.x API v1 and Airflow 3.x API v2, selected with AIRFLOW_API_VERSION.

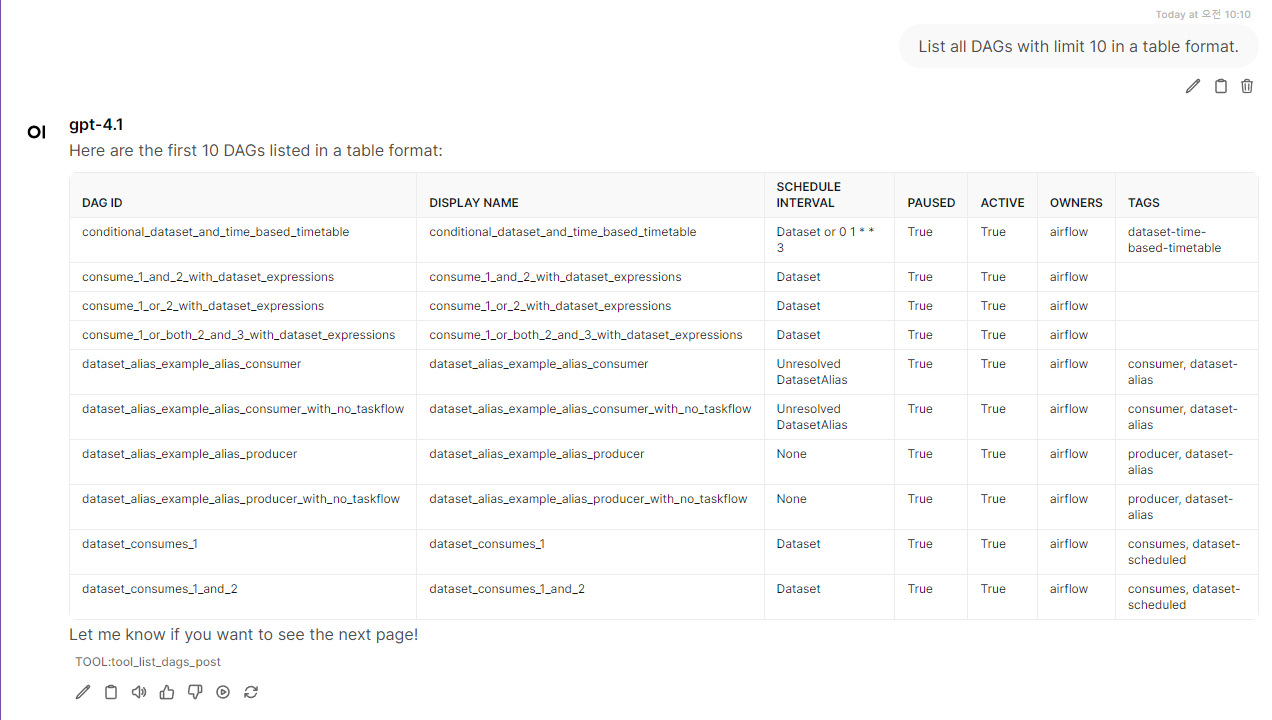

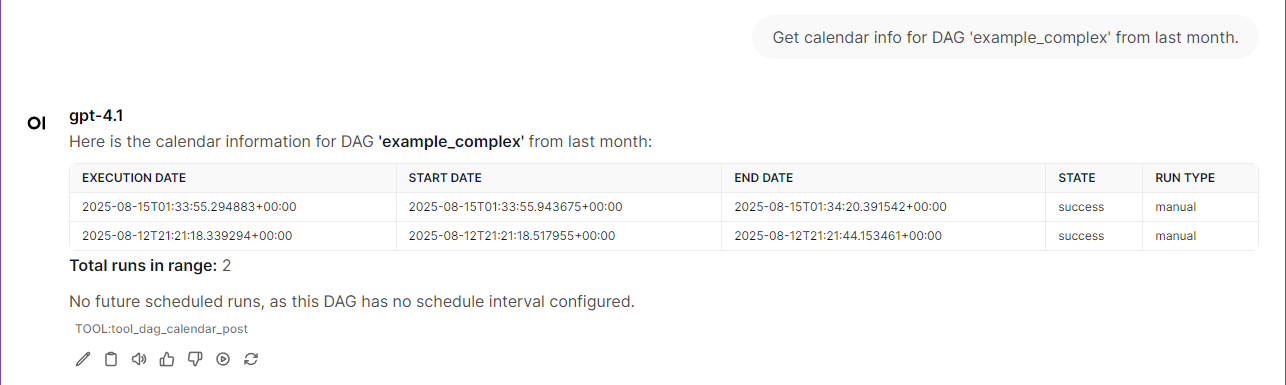

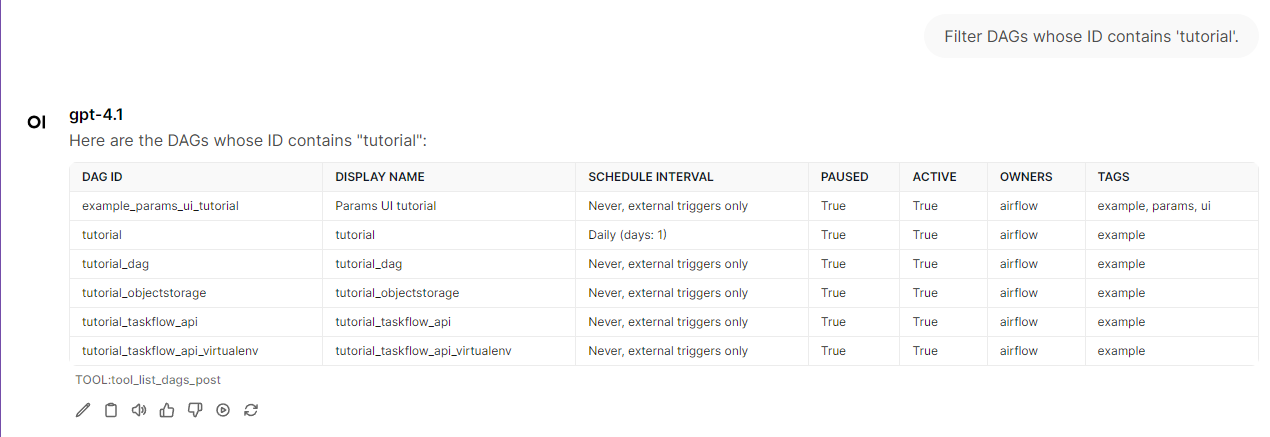

• Inspect DAGs, DAG runs, task instances, pools, variables, connections, and cluster health.

• Trigger, pause, and manage supported Airflow resources using the permissions of the configured Airflow account.

• Use local stdio or Streamable HTTP transport.

• Run with Claude Desktop, OpenWebUI, any MCP client, or the optional MCPO OpenAPI compatibility proxy.

Example requests:

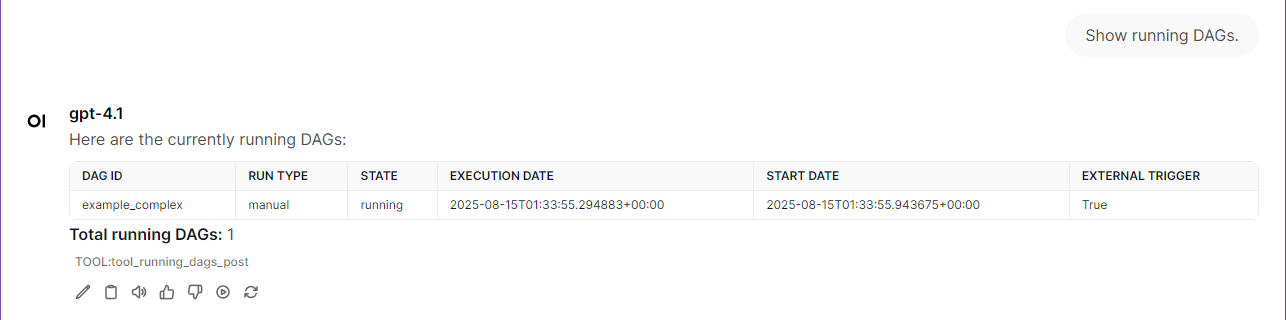

Show the currently running DAGs.

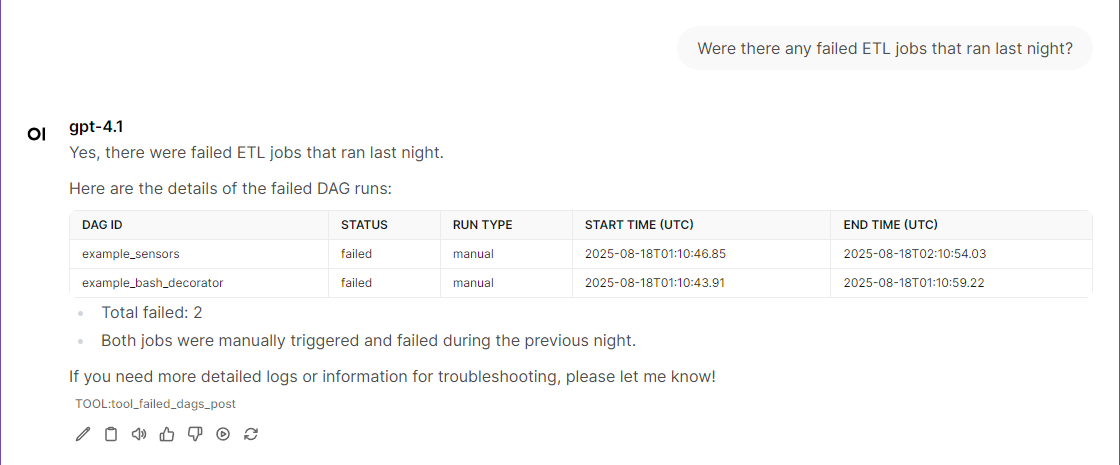

List failed task instances from the last 24 hours.
Trigger the example_etl DAG with today's processing date.
Show assets updated by data_ingestion.  # Airflow 3.x only

More requests to try: see Example queries by area for DAGs, task instances, XComs, pools, variables, configuration, monitoring, assets, datasets, users, plugins, and providers.

Related MCP server: mcp-airflow

Quick Start

Choose one path. Both require an Airflow account and network access to its API. For a test cluster, see Airflow-Docker-Compose.

Option A: Claude Desktop with MCPB

1. Download mcp-airflow-api-<version>.mcpb from the latest GitHub Release.

2. In Claude Desktop, open Settings → Extensions → Advanced settings → Install Extension… and select the bundle.

3. Choose API v1 for Airflow 2.x or v2 for Airflow 3.x, then enter the API base URL, user name, and password.

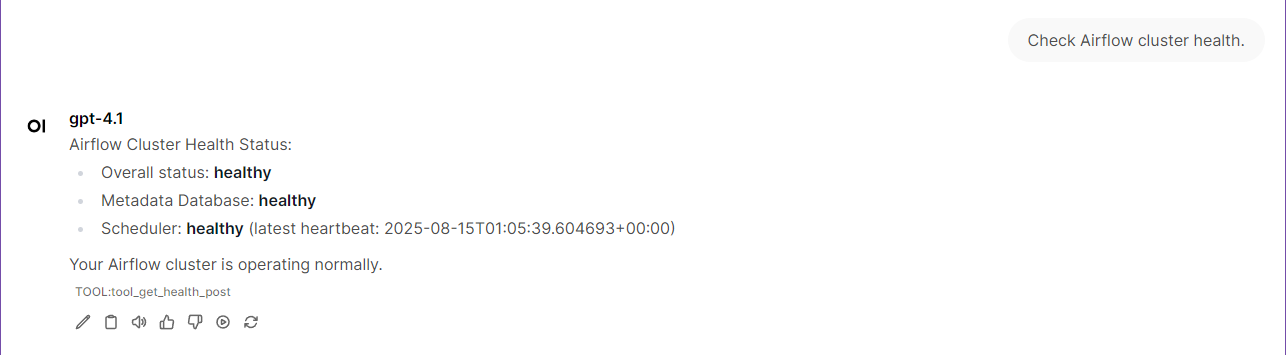

4. Ask: Show the health of my Airflow cluster.

The base URL excludes the version suffix, for example http://localhost:8080/api. See the Claude Desktop guide for uvx, source, and remote alternatives.

Option B: OpenWebUI with Docker Compose

Requirements: Git, Docker with the Compose plugin, and a model provider for OpenWebUI whose model supports tool calling.

1. Configure

git clone https://github.com/call518/MCP-Airflow-API.git
cd MCP-Airflow-API
cp .env.example .env
cp mcp-config.json.http mcp-config.json.http.local
chmod 600 mcp-config.json.http.local
openssl rand -hex 32   # use the output as WEBUI_SECRET_KEY
vi .env                # set WEBUI_SECRET_KEY and the AIRFLOW_* values

2. Start

docker compose up -d
docker compose ps      # wait until mcp-server is healthy

The default stack exposes only localhost:

• OpenWebUI: http://localhost:3002

• MCP server: http://localhost:18002/mcp

• Optional MCPO/OpenAPI proxy: http://localhost:8002

3. Connect a model provider

These steps apply to both the direct MCP connection and MCPO.

1. Open http://localhost:3002 and create the administrator account.

2. Under Settings → Admin → Connections, add an OpenAI connection with URL https://api.openai.com/v1, Auth Bearer with your OpenAI API key, and API Type set to Chat Completions, then save it. For another provider, see the OpenWebUI guide.

3. The Quick Start calls tools through Chat Completions with model reasoning turned off, using this default already present in .env.example:

   DEFAULT_MODEL_PARAMS={"reasoning_effort":"none"}

   This value requires API Type: Chat Completions. With Responses, OpenWebUI still sends reasoning_effort, and every request fails with Unsupported parameter: 'reasoning_effort'. If the open-webui-data volume already exists, set the same value under Settings → Admin → Models → Model Defaults → Model Parameters because its saved database value takes precedence. To keep model reasoning through Responses instead, see the OpenWebUI guide.

4. Connect the MCP server

1. Under Settings → Admin → Tools → Integrations → External Tool Servers, add a connection of type MCP (Streamable HTTP) with the internal Docker URL http://mcp-server:8000/mcp and authentication None. Do not use the host URL from inside the Docker network.

2. In a new chat, enable the connection under Integrations → Tools and ask: Use mcp-airflow-api to show the Airflow cluster health.

MCPO is optional. OpenWebUI connects directly to MCP; MCPO exists for OpenAPI clients. Start without it using docker compose up -d mcp-server open-webui.

See the OpenWebUI guide for MCPO setup, authentication, OpenAI reasoning models, and troubleshooting.

Other installation methods

Configuration

See Configuration and security for Docker port settings, authentication, and client examples.

Safety and security

• The server can change Airflow state when the configured account permits it. Review tool calls and use a least-privilege Airflow account.

• Keep .env and mcp-config.json.*.local files out of Git. Tracked examples contain placeholders only.

• Compose binds HTTP ports to 127.0.0.1 by default. Before exposing the MCP server remotely, enable Bearer authentication and put it behind HTTPS.

• MCPB runs locally over stdio and does not use the HTTP Bearer settings.

Compatibility

• Python 3.12 or newer

• Airflow 2.x through REST API v1

• Airflow 3.x through REST API v2; asset tools are v2-only

• Claude Desktop MCPB, generic stdio/Streamable HTTP MCP clients, OpenWebUI, and optional MCPO/OpenAPI clients

Exact endpoint availability still depends on the Airflow version and the configured account's permissions.

Documentation

Development

uv sync --frozen
uv run pytest -ra

Run locally over stdio:

AIRFLOW_API_VERSION=v1 \
AIRFLOW_API_BASE_URL=http://localhost:8080/api \
AIRFLOW_API_USERNAME=airflow \
AIRFLOW_API_PASSWORD=airflow \
uv run mcp-airflow-api

Build an MCPB without including local configuration or credentials:

scripts/build-mcpb.sh 0.0.0 /tmp/mcp-airflow-api-mcpb-check
unzip -l /tmp/mcp-airflow-api-mcpb-check/mcp-airflow-api-0.0.0.mcpb

License

MIT
