Observe Community MCP Server

Python FastAPI Gemini AI Model Context Protocol Observe

A Model Context Protocol (MCP) server that provides LLMs with intelligent access to Observe platform data through semantic search, automated dataset discovery, and metrics intelligence.

⚠️ EXPERIMENTAL: This is a community-built MCP server for testing and collaboration. A production version is available to Observe customers through official channels.

What This Does

This MCP server transforms how LLMs interact with observability data by providing intelligent discovery and search capabilities for the Observe platform. Instead of requiring users to know specific dataset names or metric structures, it enables natural language queries that automatically find relevant data sources and provide contextual analysis.

Key Features:

Smart Dataset Discovery: Find relevant datasets using natural language descriptions
Metrics Intelligence: Discover and understand metrics with automated categorization and usage guidance
AI-Powered Documentation Search: Gemini AI search with real-time access to docs.observeinc.com
OPAL Query Execution: Run queries against any Observe dataset with multi-dataset join support
Intelligent Error Enhancement: Contextual help for query errors with actionable suggestions and documentation links
Comprehensive Query Validation: 69 OPAL verbs, 286 functions, structural validation, and SQL→OPAL translation hints
OpenTelemetry Integration: Built-in Observe agent for collecting application telemetry data
Always Current: Documentation search queries live web content, no local archives needed

Related MCP server: MCP File Context Server

Available Tools

The server provides 3 intelligent tools for Observe platform interaction:

🔍 Discovery & Search

discover_context: Unified discovery tool for both datasets and metrics - shows dimensions, schemas, and query templates in one search. Addresses the #1 user pain point: "eliminate dimension guessing!"
get_relevant_docs: Search Observe documentation using Gemini AI with real-time web access to docs.observeinc.com

⚡ Query Execution

execute_opal_query: Run OPAL queries against single or multiple Observe datasets with comprehensive error handling

Each tool includes authentication validation, error handling, and structured result formatting optimized for LLM consumption.

Query Intelligence & Validation

The server includes comprehensive OPAL query validation and intelligent error enhancement to help users write correct queries faster.

Query Validation and Error Enhancement

Multi-layer validation catches errors before they reach the API:

Structural Validation: Balanced delimiters, quote matching, complexity limits, nesting depth checks
Verb Validation: All 69 OPAL verbs validated across piped query sequences
Function Validation: 286 OPAL functions with nested and multiple function support
Pattern Detection: Common mistakes like SQL-style sort syntax, m() outside align verb
Translation Hints: SQL→OPAL suggestions for 11 common SQL functions that don't exist in OPAL

Intelligent Error Enhancement

When queries fail, the system provides contextual help with actionable suggestions. This significantly reduces error recovery for typical OPAL queries by providing immediate, context-aware guidance exactly when users need it.

Quick Start

Prerequisites

Docker & Docker Compose (recommended approach)
Python 3.13+ (for manual installation)
Observe API credentials (customer ID and token)

1. Clone and Configure

git clone https://github.com/rustomax/observe-community-mcp.git cd observe-community-mcp # Copy and configure environment cp .env.template .env # Edit .env with your Observe credentials (see below)

2. Environment Configuration

Edit your .env file with these required values:

# Observe Platform Access OBSERVE_CUSTOMER_ID="your_customer_id" OBSERVE_TOKEN="your_api_token" OBSERVE_DOMAIN="observeinc.com" # MCP Authentication (see Authentication section) PUBLIC_KEY_PEM="-----BEGIN PUBLIC KEY----- your_public_key_content_here -----END PUBLIC KEY-----" # Database Security SEMANTIC_GRAPH_PASSWORD="your_secure_postgres_password" # Gemini AI for Documentation Search GEMINI_API_KEY="your_gemini_api_key_here" # OpenTelemetry Collection (optional) OBSERVE_OTEL_TOKEN="your_otel_token_here" OBSERVE_OTEL_CUSTOMER_ID="your_customer_id_here" OBSERVE_OTEL_DOMAIN="observeinc.com"

3. Start with Docker (Recommended)

# Build and start all services docker-compose up --build -d # The server will be available at http://localhost:8000

4. Initialize Intelligence Systems

Run these commands locally to populate the intelligence databases:

# Create and activate virtual environment python3.13 -m venv .venv source .venv/bin/activate # Install dependencies pip install -r ./requirements # Build dataset intelligence (analyzes datasets in your Observe instance) python scripts/datasets_intelligence.py --force # Build metrics intelligence (analyzes metrics with categorization) python scripts/metrics_intelligence.py --force

Note: Documentation search now uses Gemini AI and requires no local setup - it queries docs.observeinc.com in real-time.

5. Connect with Claude Desktop

Add to your claude_desktop_config.json:

{ "mcpServers": { "observe": { "type": "http", "url": "http://localhost:8000/mcp", "headers": { "Authorization": "Bearer your_mcp_token_here" } } } }

Remote Deployment with Nginx

For production deployments, you can deploy the MCP server behind an nginx reverse proxy with SSL/TLS:

See including:

SSL certificate setup with Let's Encrypt
HTTP to HTTPS redirection
Security headers and best practices
Client configuration for remote access
Troubleshooting and maintenance

Quick deployment:

# Stage 1: Get SSL certificates sudo cp nginx-mcp-bootstrap.conf /etc/nginx/sites-available/your-domain.example.com sudo ln -s /etc/nginx/sites-available/your-domain.example.com /etc/nginx/sites-enabled/ sudo nginx -t && sudo systemctl reload nginx sudo certbot certonly --nginx -d your-domain.example.com # Stage 2: Enable HTTPS sudo cp nginx-mcp-final.conf /etc/nginx/sites-available/your-domain.example.com sudo nginx -t && sudo systemctl reload nginx

Remote client configuration:

{ "mcpServers": { "observe": { "type": "http", "url": "https://your-domain.example.com/mcp", "headers": { "Authorization": "Bearer YOUR_JWT_TOKEN" } } } }

Architecture

The MCP server uses a modern, self-contained architecture built for performance and reliability:

System Overview

graph TB Claude[Claude/LLM] -->|MCP Protocol| Server[MCP Server FastAPI] Server --> Auth[JWT Authentication] Server --> Discovery[Intelligence Layer PostgreSQL] Server --> GeminiAI[Gemini AI Documentation Search] Server --> ObserveAPI[Observe Platform OPAL Queries] Server -->|OTLP Telemetry| Collector[OpenTelemetry Collector OTLP Gateway] Discovery --> DatasetDB[(datasets_intelligence Dataset Metadata)] Discovery --> MetricsDB[(metrics_intelligence Discovered Metrics)] GeminiAI -->|Search Grounding| DocsWeb[docs.observeinc.com Live Documentation] ObserveAPI --> Results[Structured Results] Results --> Claude Collector -->|OTLP HTTP| ObservePlatform[Observe Platform] subgraph "PostgreSQL Database" DatasetDB MetricsDB end subgraph "Docker Containers" Server Discovery Collector end subgraph "External Services" GeminiAI DocsWeb end

Core Components

Component	Technology	Purpose
MCP Server	FastAPI + MCP Protocol	Tool definitions and request handling
Observe Integration	Python asyncio + Observe API	Dataset queries and metadata access
Query Validation	Pattern Matching + Rule Engine	69 verbs, 286 functions, structural validation
Error Enhancement	Regex Pattern Matching	Contextual help with actionable suggestions
Documentation Search	Gemini AI + Google Search	Real-time web search against docs.observeinc.com
Intelligence Systems	PostgreSQL + Rule-based Analysis	Dataset and metrics discovery with categorization
OpenTelemetry Collector	OTEL Collector Contrib	Application telemetry collection and forwarding
Authentication	JWT + RSA signatures	Secure access control

Database Schema

PostgreSQL:

Standard PostgreSQL - Metadata storage and analysis

Key Tables:

datasets_intelligence - Analyzed dataset metadata with categories and usage patterns
metrics_intelligence - Analyzed metrics with business/technical categorization

Note: Documentation search uses Gemini AI and does not require local database storage.

Intelligence Systems

Dataset Intelligence

Automatically categorizes and analyzes all Observe datasets to enable natural language discovery:

Categories:

Business: Application, Infrastructure, Database, User, Security, Network
Technical: Logs, Metrics, Traces, Events, Resources
Usage Patterns: Common query examples, grouping suggestions, typical use cases

Example Query: "Find kubernetes error logs" → Automatically discovers and ranks Kubernetes log datasets

Metrics Intelligence

Analyzes metrics from Observe with comprehensive metadata:

Analysis Includes:

Categorization: Business domain (Infrastructure/Application/Database) + Technical type (Error/Latency/Performance)
Dimensions: Common grouping fields with cardinality analysis
Usage Guidance: Typical aggregation functions, alerting patterns, troubleshooting approaches
Value Analysis: Data ranges, frequencies, and patterns

Example Query: "CPU memory utilization metrics" → Returns relevant infrastructure performance metrics with usage guidance

Documentation Search

Real-time AI-powered search using Gemini with Google Search grounding:

Always-current access to docs.observeinc.com
OPAL language reference and examples
Platform documentation and troubleshooting guides
Query examples with contextual explanations

Search Features:

AI-curated results with source citations
Context-aware documentation retrieval
Automatic relevance ranking
Rate-limited to 400 requests/day (Tier 1)

OpenTelemetry Integration

The MCP server includes built-in OpenTelemetry collection via a standard OpenTelemetry Collector, enabling comprehensive application monitoring and observability.

OpenTelemetry Collector

The included OpenTelemetry Collector acts as a telemetry gateway that:

Receives telemetry data from instrumented applications via OTLP protocol
Forwards data to Observe using the standard OTLP HTTP exporter with proper authentication
Adds resource attributes for proper service identification and categorization
Handles retries and buffering for reliable data delivery
Provides debug output for development visibility

Available Endpoints

When the server is running, applications can send telemetry data to:

Protocol	Endpoint	Usage
OTLP gRPC	`http://otel-collector:4317`	Recommended for production (within Docker network)
OTLP HTTP	`http://otel-collector:4318`	Alternative for HTTP-based integrations
Health Check	`http://otel-collector:13133/`	Collector health monitoring

Configuration

The OpenTelemetry Collector is configured via otel-collector-config.yaml with:

# OTLP receivers for application telemetry receivers: otlp: protocols: grpc: endpoint: 0.0.0.0:4317 http: endpoint: 0.0.0.0:4318 # Processors for data enrichment and batching processors: batch: send_batch_size: 1024 timeout: 1s resource: attributes: - key: "deployment.environment" value: "development" action: upsert # Exporters to send data to Observe exporters: otlphttp: endpoint: "https://${OBSERVE_OTEL_CUSTOMER_ID}.collect.${OBSERVE_OTEL_DOMAIN}/v2/otel" headers: authorization: "Bearer ${OBSERVE_OTEL_TOKEN}" debug: verbosity: basic # Service pipelines for traces, metrics, and logs service: pipelines: traces: receivers: [otlp] processors: [resource, batch] exporters: [otlphttp, debug] metrics: receivers: [otlp] processors: [resource, batch] exporters: [otlphttp, debug] logs: receivers: [otlp] processors: [resource, batch] exporters: [otlphttp, debug]

The collector automatically handles authentication, retry logic, and reliable data delivery to the Observe platform.

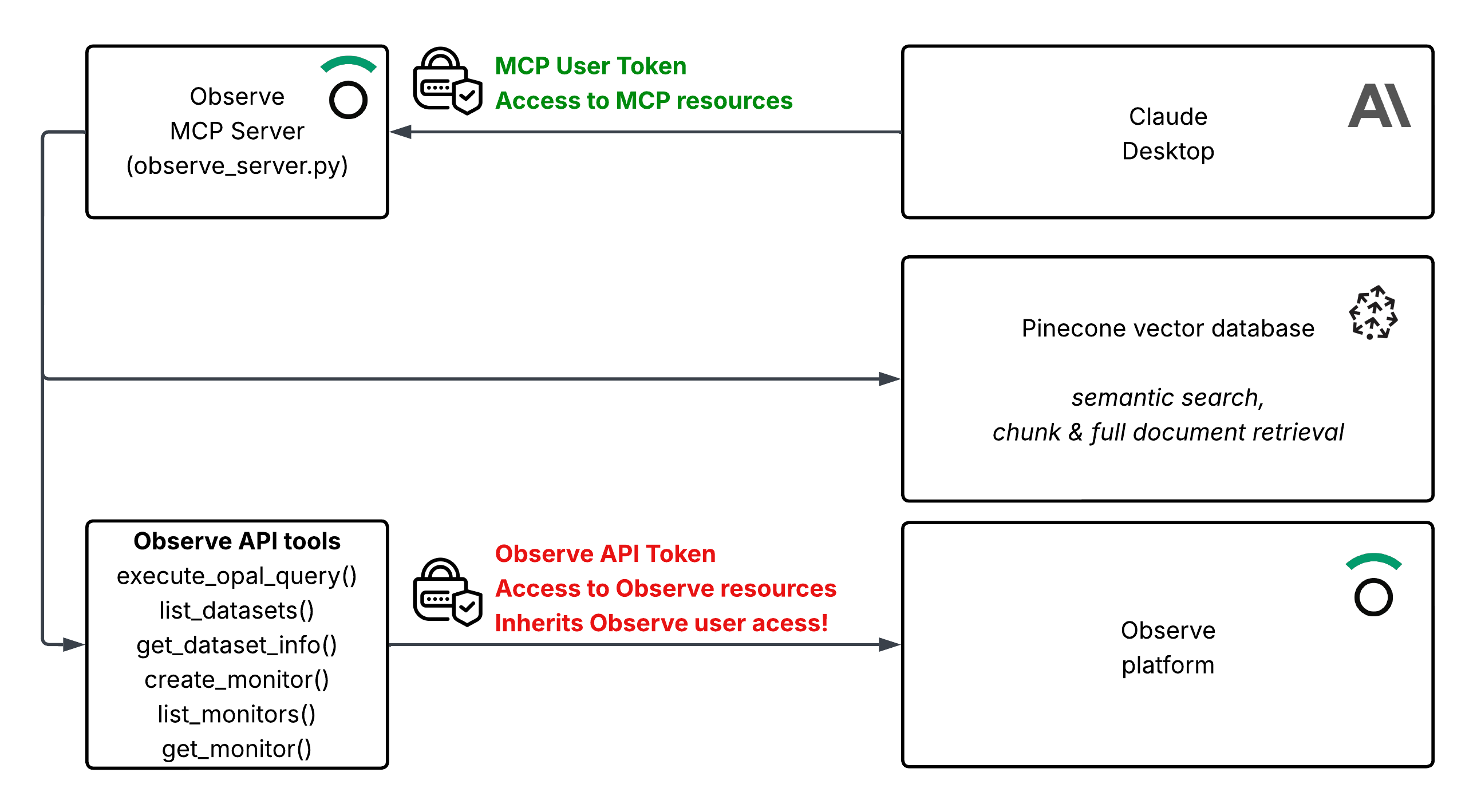

Authentication

MCP Server Authentication

The server uses JWT-based authentication to control access:

# Generate RSA key pair mkdir _secure cd _secure # Make sure _secure is in your gitignore! openssl genrsa -out private_key.pem 2048 openssl rsa -in private_key.pem -pubout -out public_key.pem # Add public key to .env file cat public_key.pem # Copy to PUBLIC_KEY_PEM # Generate user tokens cd ../scripts ./generate_mcp_token.sh 'user@example.com' 'admin,read,write' '4H'

On MacOS, you may need to install jwt-cli

brew install jwt-cli

Observe API Access

Important Security Note: Once authenticated to the MCP server, users assume the identity and permissions of the Observe API token configured in the environment. Use Observe RBAC to limit the token's permissions appropriately.

Maintenance

Update Intelligence Data

# Activate virtual environment source .venv/bin/activate # Refresh dataset intelligence (when new datasets are added) python scripts/datasets_intelligence.py # Update metrics intelligence (daily recommended) python scripts/metrics_intelligence.py

Note: Documentation search uses Gemini AI and is always current - no manual updates needed.

Monitor Performance

# Check server logs docker logs observe-mcp-server # Check database status docker exec observe-semantic-graph psql -U semantic_graph -d semantic_graph -c "\dt" # Check Gemini search usage docker logs observe-mcp-server | grep "gemini"

Troubleshooting

Common Issues:

Empty search results: Run intelligence scripts to populate data
Slow performance: Check PostgreSQL connection and restart if needed
Authentication failures: Verify JWT token and public key configuration
Missing datasets: Confirm Observe API credentials and network access

Performance Expectations:

The system is designed for fast response times:

Dataset discovery: < 2 seconds
Metrics discovery: < 1 second
Documentation search: 1-3 seconds (includes AI processing)
Intelligence updates: Run when data changes

Development

Manual Setup

# Create virtual environment python3 -m venv .venv source .venv/bin/activate # Install dependencies (use lock file for reproducible builds) pip install -r requirements-lock.txt # Start containers docker-compose build docker-compose up -d # Initialize intelligence systems python scripts/datasets_intelligence.py python scripts/metrics_intelligence.py # Run server python observe_server.py

Dependency Management:

This project uses requirements-lock.txt for reproducible builds with pinned versions and cryptographic hashes.

Installing dependencies: Always use the lock file for consistent, secure builds:
pip install -r requirements-lock.txt
Updating dependencies: When you need to update to newer versions:
# 1. Install latest compatible versions from requirements.txt pip install -r requirements.txt --upgrade # 2. Test that everything works python observe_server.py # or run your tests # 3. Regenerate lock file with new versions pip install pip-tools pip-compile requirements.txt --output-file=requirements-lock.txt --generate-hashes --resolver=backtracking # 4. Commit both files git add requirements.txt requirements-lock.txt git commit -m "chore: update dependencies"
Why use lock files?
- Security: SHA256 hashes prevent package tampering
- Reproducibility: Same lock file = identical builds everywhere
- Stability: Prevents unexpected breaking changes from automatic updates

Available Scripts

Script	Purpose	Runtime
`scripts/datasets_intelligence.py`	Analyze and categorize all datasets	~5-10 minutes
`scripts/metrics_intelligence.py`	Analyze and categorize metrics	~5-10 minutes
`scripts/generate_mcp_token.sh`	Generate JWT tokens for authentication	Instant

Contributing

This project demonstrates modern approaches to LLM-native observability tooling. Issues, feature requests, and pull requests are welcome.

Architecture Principles:

Self-contained (minimal external dependencies)
Fast (< 2 second response times)
Intelligent (automated categorization and discovery)
Reliable (comprehensive error handling and validation)
Secure (input validation, DoS prevention, comprehensive query validation)
User-friendly (contextual error messages with actionable guidance)
