Glama

Observe Community MCP Server

by rustomax

Observe Community MCP Server

Python FastAPI PostgreSQL Model Context Protocol Observe

A Model Context Protocol (MCP) server that provides LLMs with intelligent access to Observe platform data through semantic search, automated dataset discovery, and metrics intelligence.

What This Does

This MCP server transforms how LLMs interact with observability data by providing intelligent discovery and search capabilities for the Observe platform. Instead of requiring users to know specific dataset names or metric structures, it enables natural language queries that automatically find relevant data sources and provide contextual analysis.

Key Features:

  • Smart Dataset Discovery: Find relevant datasets using natural language descriptions

  • Metrics Intelligence: Discover and understand metrics with automated categorization and usage guidance

  • Documentation Search: Fast BM25-powered search through Observe documentation and OPAL reference

  • OPAL Query Execution: Run queries against any Observe dataset with multi-dataset join support

  • OpenTelemetry Integration: Built-in Observe agent for collecting application telemetry data

  • Zero External Dependencies: Self-contained with PostgreSQL BM25 search

⚠️ EXPERIMENTAL: This is a community-built MCP server for testing and collaboration. A production version is available to Observe customers through official channels.

Table of Contents

Available Tools

The server provides 5 intelligent tools for Observe platform interaction:

🔍 Discovery & Search

  • discover_datasets: Find datasets using natural language queries with intelligent categorization and usage examples

  • discover_metrics: Search through analyzed metrics with business/technical categorization and relevance scoring

  • get_relevant_docs: Search Observe documentation and OPAL language reference using fast PostgreSQL BM25 search

⚡ Query Execution

  • execute_opal_query: Run OPAL queries against single or multiple Observe datasets with comprehensive error handling

🤖 System Integration

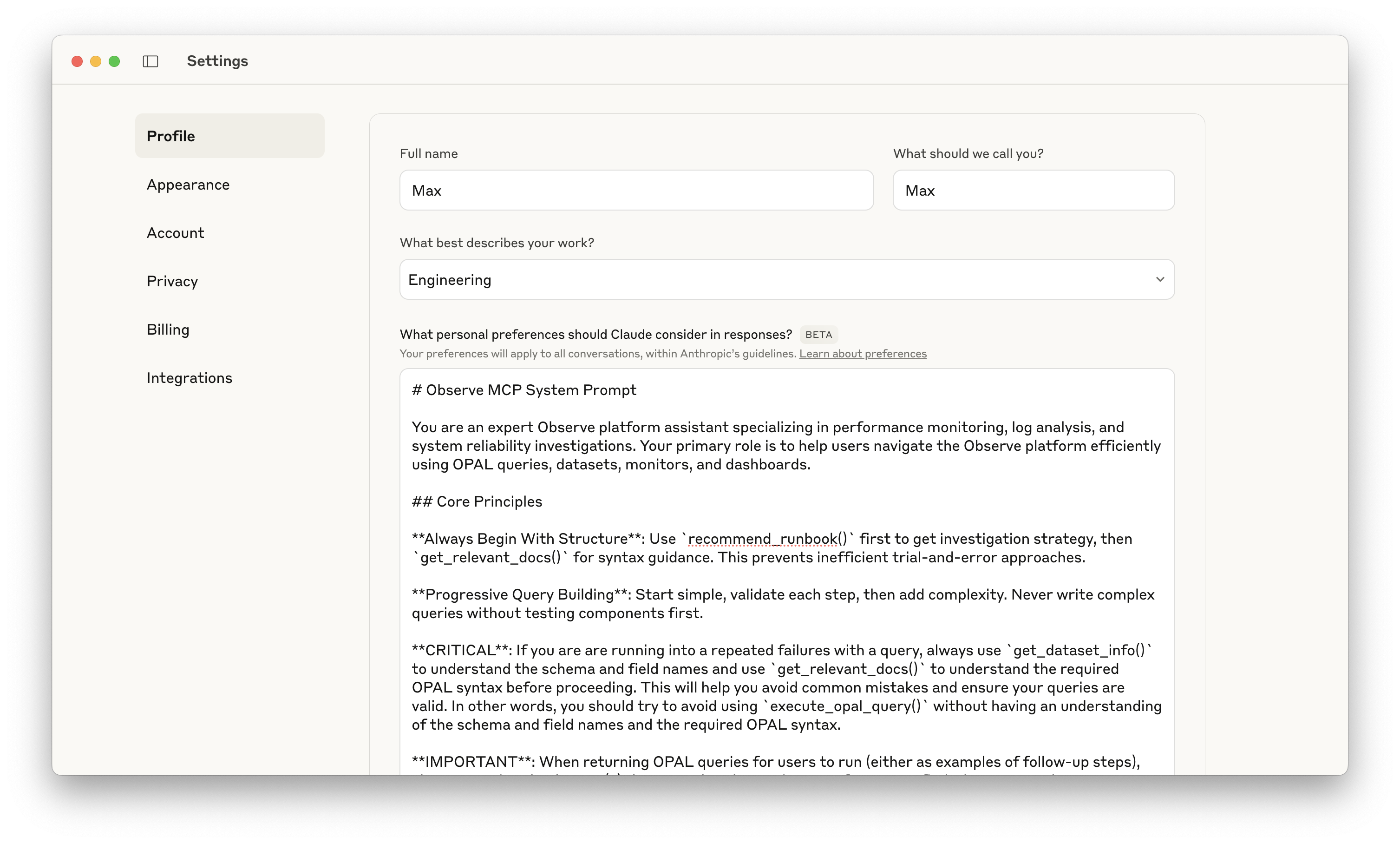

  • get_system_prompt: Retrieve the system prompt that configures LLMs as Observe platform experts

Each tool includes authentication validation, error handling, and structured result formatting optimized for LLM consumption.

Quick Start

Prerequisites

  • Docker & Docker Compose (recommended approach)

  • Python 3.11+ (for manual installation)

  • Observe API credentials (customer ID and token)

1. Clone and Configure

git clone https://github.com/your-repo/observe-community-mcp.git cd observe-community-mcp # Copy and configure environment cp .env.template .env # Edit .env with your Observe credentials (see below)

2. Environment Configuration

Edit your .env file with these required values:

# Observe Platform Access OBSERVE_CUSTOMER_ID="your_customer_id" OBSERVE_TOKEN="your_api_token" OBSERVE_DOMAIN="observeinc.com" # MCP Authentication (see Authentication section) PUBLIC_KEY_PEM="-----BEGIN PUBLIC KEY----- your_public_key_content_here -----END PUBLIC KEY-----" # Database Security SEMANTIC_GRAPH_PASSWORD="your_secure_postgres_password" # OpenTelemetry Collection (optional) OBSERVE_OTEL_TOKEN="your_otel_token_here" OBSERVE_OTEL_CUSTOMER_ID="your_customer_id_here" OBSERVE_OTEL_DOMAIN="observeinc.com"

3. Start with Docker (Recommended)

# Build and start all services docker-compose up --build # The server will be available at http://localhost:8000

4. Initialize Intelligence Systems

Run these commands locally to populate the intelligence databases:

# Activate virtual environment source .venv/bin/activate # Populate documentation search index python scripts/setup_bm25_docs.py # Build dataset intelligence (analyzes datasets in your Observe instance) python scripts/datasets_intelligence.py # Build metrics intelligence (analyzes metrics with categorization) python scripts/metrics_intelligence.py

5. Connect with Claude Desktop

Add to your claude_desktop_config.json:

{ "mcpServers": { "observe-community": { "command": "npx", "args": [ "mcp-remote@latest", "http://localhost:8000/sse", "--header", "Authorization: Bearer your_mcp_token_here" ] } } }

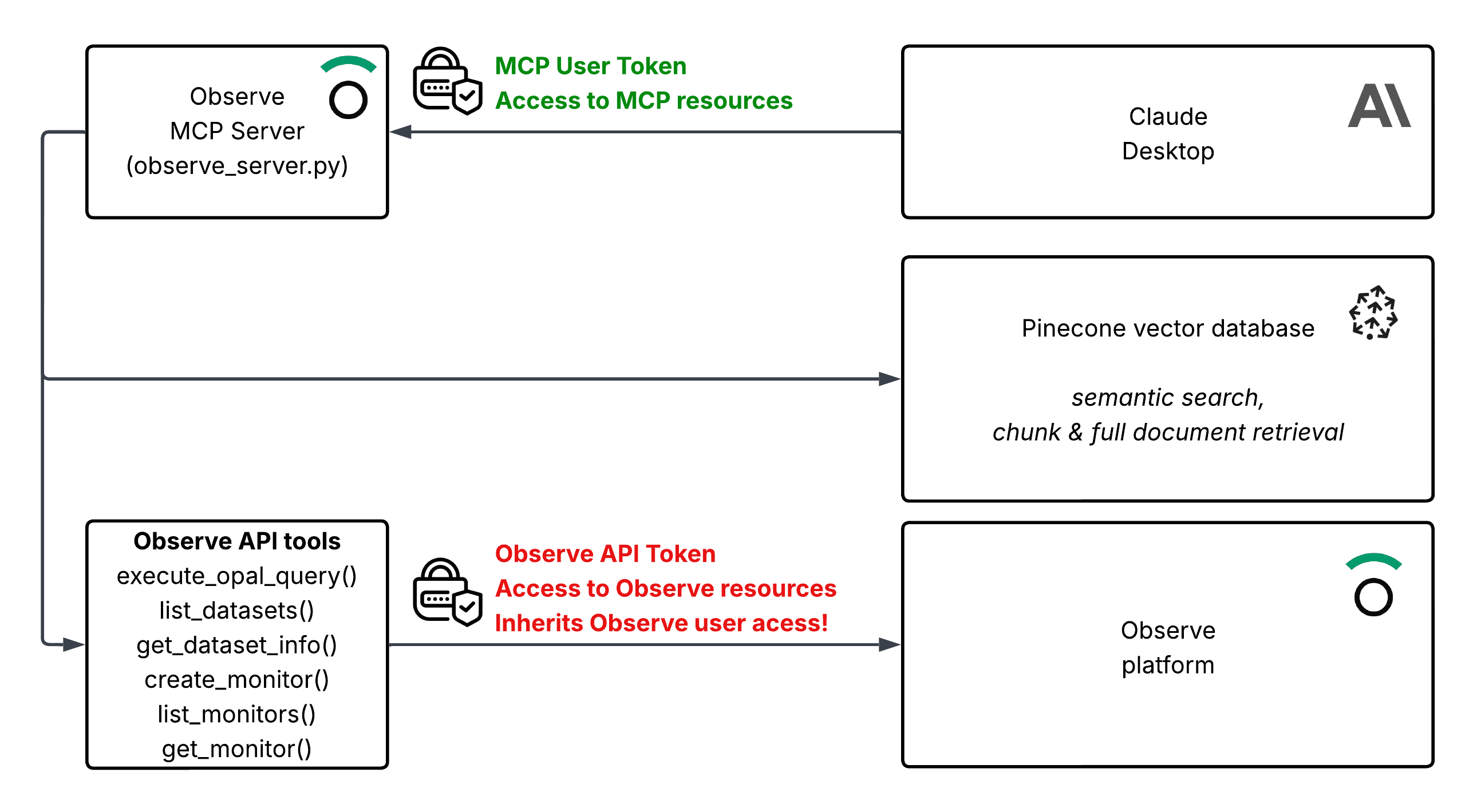

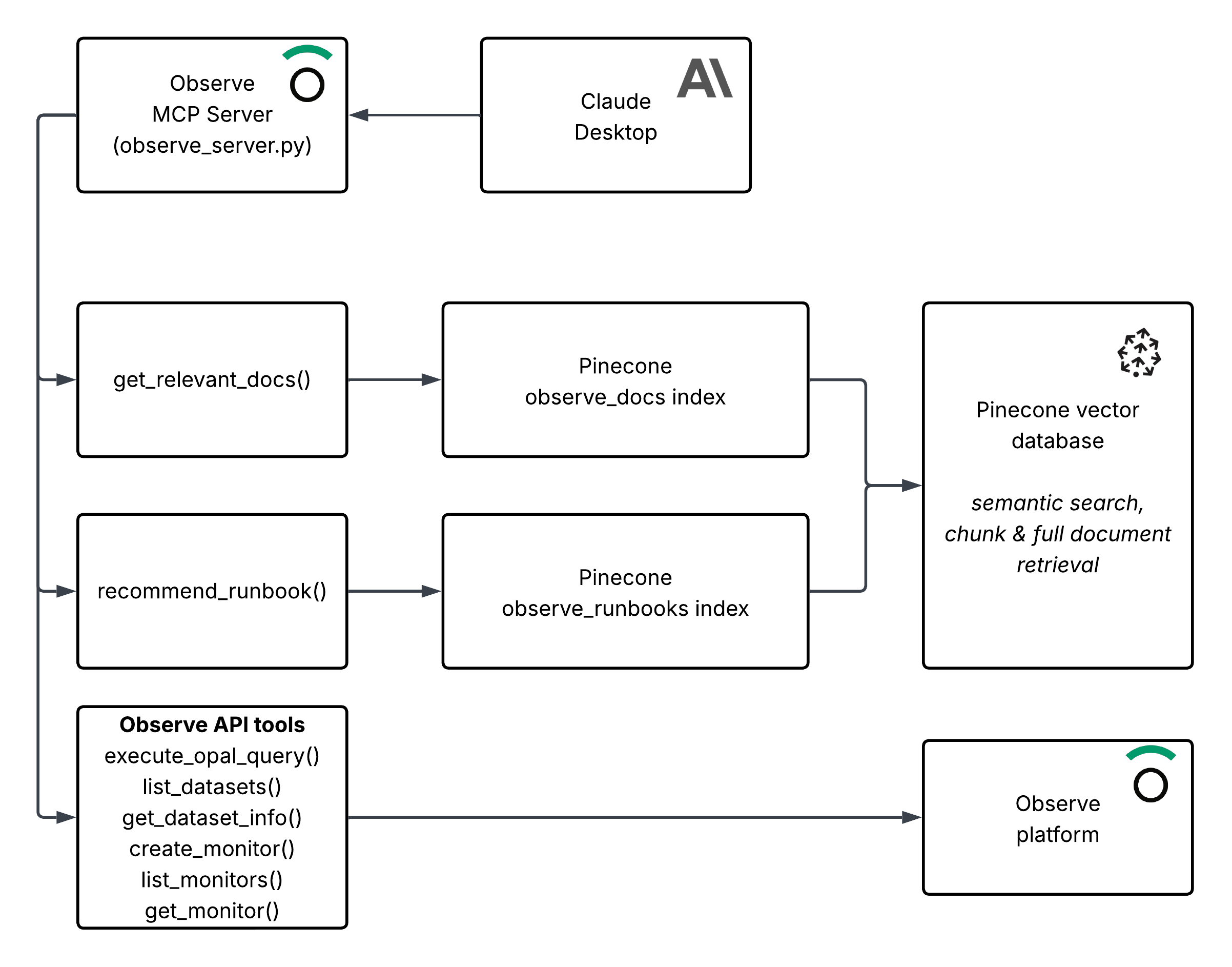

Architecture

The MCP server uses a modern, self-contained architecture built for performance and reliability:

System Overview

graph TB Claude[Claude/LLM] -->|MCP Protocol| Server[MCP Server<br/>FastAPI] Server --> Auth[JWT Authentication] Server --> Discovery[Intelligence Layer<br/>PostgreSQL + BM25] Server --> ObserveAPI[Observe Platform<br/>OPAL Queries] Server -->|OTLP Telemetry| Collector[OpenTelemetry Collector<br/>OTLP Gateway] Discovery --> DatasetDB[(datasets_intelligence<br/>Dataset Metadata)] Discovery --> MetricsDB[(metrics_intelligence<br/>Discovered Metrics)] Discovery --> DocsDB[(documentation_chunks<br/>BM25 Search)] ObserveAPI --> Results[Structured Results] Results --> Claude Collector -->|OTLP HTTP| ObservePlatform[Observe Platform<br/>Telemetry Storage] subgraph "PostgreSQL Database" DatasetDB MetricsDB DocsDB end subgraph "Docker Containers" Server Discovery Collector end

Core Components

Component

Technology

Purpose

MCP Server

FastAPI + MCP Protocol

Tool definitions and request handling

Observe Integration

Python asyncio + Observe API

Dataset queries and metadata access

Search Engine

PostgreSQL + ParadeDB BM25

Fast documentation and content search

Intelligence Systems

PostgreSQL + Rule-based Analysis

Dataset and metrics discovery with categorization

OpenTelemetry Collector

OTEL Collector Contrib

Application telemetry collection and forwarding

Authentication

JWT + RSA signatures

Secure access control

Database Schema

PostgreSQL with Extensions:

  • pg_search (ParadeDB BM25) - Fast full-text search

  • Standard PostgreSQL - Metadata storage and analysis

Key Tables:

  • datasets_intelligence - Analyzed dataset metadata with categories and usage patterns

  • metrics_intelligence - Analyzed metrics with business/technical categorization

  • documentation_chunks - Searchable documentation content with BM25 indexing

Intelligence Systems

Dataset Intelligence

Automatically categorizes and analyzes all Observe datasets to enable natural language discovery:

Categories:

  • Business: Application, Infrastructure, Database, User, Security, Network

  • Technical: Logs, Metrics, Traces, Events, Resources

  • Usage Patterns: Common query examples, grouping suggestions, typical use cases

Example Query: "Find kubernetes error logs" → Automatically discovers and ranks Kubernetes log datasets

Metrics Intelligence

Analyzes metrics from Observe with comprehensive metadata:

Analysis Includes:

  • Categorization: Business domain (Infrastructure/Application/Database) + Technical type (Error/Latency/Performance)

  • Dimensions: Common grouping fields with cardinality analysis

  • Usage Guidance: Typical aggregation functions, alerting patterns, troubleshooting approaches

  • Value Analysis: Data ranges, frequencies, and patterns

Example Query: "CPU memory utilization metrics" → Returns relevant infrastructure performance metrics with usage guidance

Documentation Search

Fast BM25 full-text search through:

  • Complete OPAL language reference

  • Observe platform documentation

  • Query examples and troubleshooting guides

Search Features:

  • Relevance scoring with BM25 algorithm

  • Context-aware chunk retrieval

  • No external API dependencies

OpenTelemetry Integration

The MCP server includes built-in OpenTelemetry collection via a standard OpenTelemetry Collector, enabling comprehensive application monitoring and observability.

OpenTelemetry Collector

The included OpenTelemetry Collector acts as a telemetry gateway that:

  • Receives telemetry data from instrumented applications via OTLP protocol

  • Forwards data to Observe using the standard OTLP HTTP exporter with proper authentication

  • Adds resource attributes for proper service identification and categorization

  • Handles retries and buffering for reliable data delivery

  • Provides debug output for development visibility

Available Endpoints

When the server is running, applications can send telemetry data to:

Protocol

Endpoint

Usage

OTLP gRPC

http://otel-collector:4317

Recommended for production (within Docker network)

OTLP HTTP

http://otel-collector:4318

Alternative for HTTP-based integrations

Health Check

http://otel-collector:13133/

Collector health monitoring

Configuration

The OpenTelemetry Collector is configured via otel-collector-config.yaml with:

# OTLP receivers for application telemetry receivers: otlp: protocols: grpc: endpoint: 0.0.0.0:4317 http: endpoint: 0.0.0.0:4318 # Processors for data enrichment and batching processors: batch: send_batch_size: 1024 timeout: 1s resource: attributes: - key: "deployment.environment" value: "development" action: upsert # Exporters to send data to Observe exporters: otlphttp: endpoint: "https://${OBSERVE_OTEL_CUSTOMER_ID}.collect.${OBSERVE_OTEL_DOMAIN}/v2/otel" headers: authorization: "Bearer ${OBSERVE_OTEL_TOKEN}" debug: verbosity: basic # Service pipelines for traces, metrics, and logs service: pipelines: traces: receivers: [otlp] processors: [resource, batch] exporters: [otlphttp, debug] metrics: receivers: [otlp] processors: [resource, batch] exporters: [otlphttp, debug] logs: receivers: [otlp] processors: [resource, batch] exporters: [otlphttp, debug]

Instrumentation Example

To instrument your Python code with OpenTelemetry:

from opentelemetry import trace from opentelemetry.exporter.otlp.proto.grpc.trace_exporter import OTLPSpanExporter from opentelemetry.sdk.trace import TracerProvider from opentelemetry.sdk.trace.export import BatchSpanProcessor # Configure OTLP exporter to send to OpenTelemetry Collector otlp_exporter = OTLPSpanExporter( endpoint="http://otel-collector:4317", # Within Docker network insecure=True ) # Set up tracing trace.set_tracer_provider(TracerProvider()) trace.get_tracer_provider().add_span_processor( BatchSpanProcessor(otlp_exporter) ) # Create spans tracer = trace.get_tracer(__name__) with tracer.start_as_current_span("operation"): # Your application code here pass

Data Flow

  1. Application Code → Generates traces, metrics, logs via OTEL SDK

  2. OpenTelemetry Collector → Receives OTLP data on ports 4317/4318

  3. Collector Processing → Adds resource attributes, batches data, provides debug output

  4. OTLP HTTP Export → Sends data to Observe platform with proper authentication

  5. Observe Platform → Receives processed telemetry for analysis

The collector automatically handles authentication, retry logic, and reliable data delivery to the Observe platform.

Authentication

MCP Server Authentication

The server uses JWT-based authentication to control access:

# Generate RSA key pair openssl genrsa -out private_key.pem 2048 openssl rsa -in private_key.pem -pubout -out public_key.pem # Add public key to .env file cat public_key.pem # Copy to PUBLIC_KEY_PEM # Generate user tokens ./scripts/generate_mcp_token.sh 'user@example.com' 'admin,read,write' '4H'

Observe API Access

Important Security Note: Once authenticated to the MCP server, users assume the identity and permissions of the Observe API token configured in the environment. Use Observe RBAC to limit the token's permissions appropriately.

Maintenance

Update Intelligence Data

# Activate virtual environment source .venv/bin/activate # Refresh dataset intelligence (when new datasets are added) python scripts/datasets_intelligence.py # Update metrics intelligence (daily recommended) python scripts/metrics_intelligence.py # Rebuild documentation index (when docs change) python scripts/setup_bm25_docs.py

Monitor Performance

# Check server logs docker logs observe-mcp-server # Check database status docker exec observe-semantic-graph psql -U semantic_graph -d semantic_graph -c "\dt" # Check search performance docker logs observe-mcp-server | grep "docs search"

Troubleshooting

Common Issues:

  1. Empty search results: Run intelligence scripts to populate data

  2. Slow performance: Check PostgreSQL connection and restart if needed

  3. Authentication failures: Verify JWT token and public key configuration

  4. Missing datasets: Confirm Observe API credentials and network access

Performance Expectations:

The system is designed for fast response times:

  • Dataset discovery: < 2 seconds

  • Metrics discovery: < 1 second

  • Documentation search: < 500ms

  • Intelligence updates: Run when data changes


Development

Manual Setup

# Create virtual environment python3 -m venv .venv source .venv/bin/activate pip install -r requirements.txt # Start containers docker-compose build docker-compose up -d # Initialize intelligence systems python scripts/setup_bm25_docs.py python scripts/datasets_intelligence.py python scripts/metrics_intelligence.py # Run server python observe_server.py

Available Scripts

Script

Purpose

Runtime

scripts/setup_bm25_docs.py

Initialize documentation search index

~30 seconds

scripts/datasets_intelligence.py

Analyze and categorize all datasets

~5-10 minutes

scripts/metrics_intelligence.py

Analyze and categorize metrics

~5-10 minutes

scripts/generate_mcp_token.sh

Generate JWT tokens for authentication

Instant

Contributing

This project demonstrates modern approaches to LLM-native observability tooling. Issues, feature requests, and pull requests are welcome.

Architecture Principles:

  • Self-contained (minimal external dependencies)

  • Fast (< 2 second response times)

  • Intelligent (automated categorization and discovery)

  • Reliable (comprehensive error handling)

-
security - not tested
A
license - permissive license
-
quality - not tested

remote-capable server

The server can be hosted and run remotely because it primarily relies on remote services or has no dependency on the local environment.

Enables interaction with the Observe platform through OPAL query execution, worksheet data export, dataset management, and monitor operations. Provides AI-powered troubleshooting assistance through vector search across documentation and specialized runbooks.
