What can you do with this server?

The Revit MCP server enables AI-driven interaction with Autodesk Revit through the MCP protocol, allowing you to: * Retrieve Data: Access information about the current view, selected elements, and available family types with filtering options * Element Management: Create, modify, and delete various elements: * Point-based (doors, windows, furniture) * Line-based (walls, beams, pipes) * Surface-based (floors, ceilings, roofs) * Model Enhancement: Color elements based on parameters, tag walls, and batch process elements for complex modeling tasks * Code Execution: Send and execute custom C# code directly in Revit * Reset Model: Delete process model when executing continuous dialog

How do I use Revit MCP?

1. Click on "Install Server". 2. Wait a few minutes for the server to deploy. Once ready, it will show a "Started" state. 3. In the chat, type @ followed by the MCP server name and your instructions, e.g., "@Revit MCP show me all the walls in the current view" That's it! The server will respond to your query, and you can continue using it as needed. Here is a step-by-step guide with screenshots.

de en es ja ko ru zh

Revit MCP

by mcp-servers-for-revit

Overview Schema Related Servers Score Discussions

TypeScript

Hybrid

🔴

WARNING

Deprecation notice, this repo is being archived in favour of the mono repo approch for the mcphttps://github.com/mcp-servers-for-revit/mcp-servers-for-revit Simpler CI, less confusion for noobs, npm package and simpler install

revit-mcp

English | 简体中文

Description

revit-mcp allows you to interact with Revit using the MCP protocol through MCP-supported clients (such as Claude, Cline, etc.).

This project is the server side (providing Tools to AI), and you need to use revit-mcp-plugin (driving Revit) in conjunction.

Join Discord | QQ Group

Related MCP server: Revit MCP Server

Features

Allow AI to get data from the Revit project
Allow AI to drive Revit to create, modify, and delete elements
Send AI-generated code to Revit to execute (may not be successful, successful rate is higher in some simple scenarios with clear requirements)

Requirements

nodejs 18+

Complete installation environment still needs to consider the needs of revit-mcp-plugin, please refer to revit-mcp-plugin

Installation

1. Build local MCP service

Install dependencies

npm install

Build

npm run build

2. Client configuration

Claude client

Claude client -> Settings > Developer > Edit Config > claude_desktop_config.json

{
    "mcpServers": {
        "revit-mcp": {
            "command": "node",
            "args": ["<path to the built file>\\build\\index.js"]
        }
    }
}

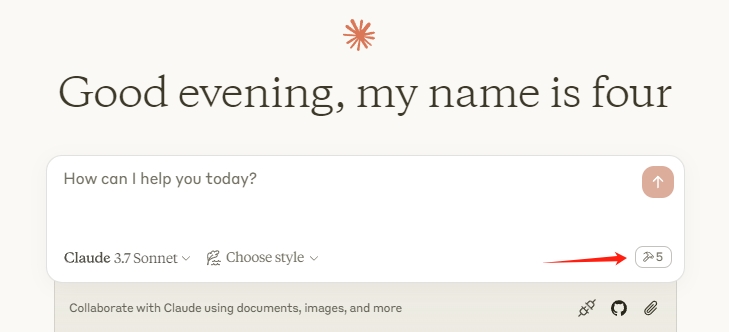

Restart the Claude client. When you see the hammer icon, it means the connection to the MCP service is normal.

claude

Framework

flowchart LR
	ClaudeDesktop --> revit-mcp --> SocketService--commandName-->CommandSet--command-->CommandExecute
	CommandManager --> CommandSet
	CommandExecute --executeResult--> SocketService
	CommandProject1 --> CommandManager
	CommandProject2 --> CommandManager
	CommandProject... --> CommandManager
	subgraph ide1 [MCPClient]
	ClaudeDesktop
	end
	subgraph ide2 [MCPServer]
	revit-mcp
	end
	subgraph ide3 [Revit]
			subgraph ide3.1 [revit-mcp-plugin]
				SocketService
				CommandSet
				CommandManager
				CommandExecute
			end
	end

Supported Tools

Name	Description
get_current_view_info	Get current active view info
get_current_view_elements	Get elements from the current active view
get_available_family_types	Get available family types in current project
get_selected_elements	Get currently selected elements
get_material_quantities	Calculate material quantities and takeoffs
ai_element_filter	Intelligent element querying tool for AI assistants
analyze_model_statistics	Analyze model complexity with element counts
create_point_based_element	Create point-based elements (door, window, furniture)
create_line_based_element	Create line-based elements (wall, beam, pipe)
create_surface_based_element	Create surface-based elements (floor, ceiling, roof)
create_grid	Create a grid system with smart spacing generation
create_level	Create levels at specified elevations
create_room	Create and place rooms at specified locations
create_structural_framing_system	Create a structural beam framing system
delete_element	Delete elements by ID
operate_element	Operate on elements (select, setColor, hide, etc.)
color_elements	Color elements based on a parameter value
tag_all_walls	Tag all walls in the current view
tag_all_rooms	Tag all rooms in the current view
export_room_data	Export all room data from the project
store_project_data	Store project metadata in local database
store_room_data	Store room metadata in local database
query_stored_data	Query stored project and room data
send_code_to_revit	Send C# code to Revit to execute
say_hello	Display a greeting dialog in Revit (connection test)
