This server allows you to control FreeCAD remotely via Claude Desktop to create and manipulate 3D models and documents. You can:
Create new FreeCAD documents and manage existing ones
Create, edit, and delete various 3D objects (like boxes, cylinders, circles)
Set object properties including dimensions, placement, and color
Execute Python code within the FreeCAD environment
Insert parts from the FreeCAD parts library
Capture screenshots from standard viewpoints (Isometric, Front, Top)
List objects within documents and retrieve their properties
Access the parts library and get available parts list
Allows control of FreeCAD from Claude Desktop, enabling AI agents to interact with and manipulate CAD models and designs programmatically through FreeCAD's functionality.
FreeCAD MCP
This repository is a FreeCAD MCP that allows you to control FreeCAD from Claude Desktop.
Demo
Design a flange
Design a toy car

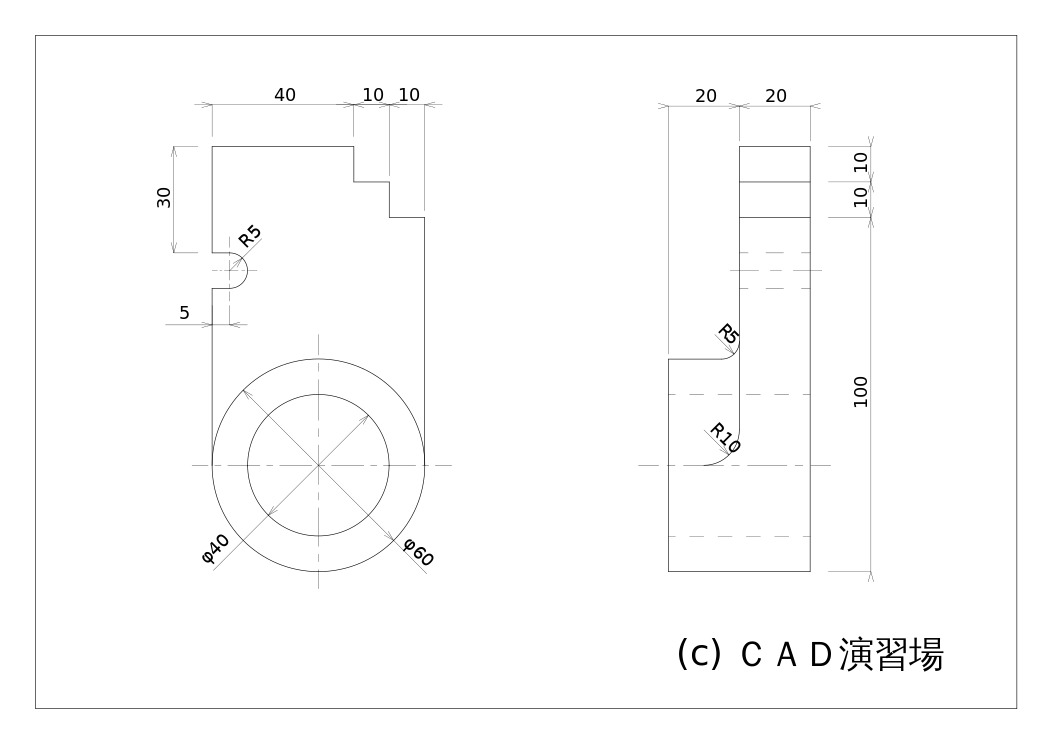

Design a part from 2D drawing
Input 2D drawing
Demo
This is the conversation history. https://claude.ai/share/7b48fd60-68ba-46fb-bb21-2fbb17399b48
Related MCP server: FreeCAD MCP
Install addon
FreeCAD Addon directory is
Windows:
%APPDATA%\FreeCAD\Mod\Mac:
~/Library/Application Support/FreeCAD/Mod/Linux:
Ubuntu:
~/.FreeCAD/Mod/or~/snap/freecad/common/Mod/(if you install FreeCAD from snap)Debian:
~/.local/share/FreeCAD/Mod
Please put addon/FreeCADMCP directory to the addon directory.
When you install addon, you need to restart FreeCAD. You can select "MCP Addon" from Workbench list and use it.
And you can start RPC server by "Start RPC Server" command in "FreeCAD MCP" toolbar.
Setting up Claude Desktop
Edit claude_desktop_config.json file.
For user.
If you want to save token, you can set only_text_feedback to true and use only text feedback.
For developer. First, you need clone this repository.
Tools
create_document: Create a new document in FreeCAD.create_object: Create a new object in FreeCAD.edit_object: Edit an object in FreeCAD.delete_object: Delete an object in FreeCAD.execute_code: Execute arbitrary Python code in FreeCAD.insert_part_from_library: Insert a part from the parts library.get_view: Get a screenshot of the active view.get_objects: Get all objects in a document.get_object: Get an object in a document.get_parts_list: Get the list of parts in the parts library.
