CVE-2025-1234  (CRITICAL · CVSS 9.8 · CISA KEV)
  |── better-sqlite3@9.0.0  (npm)
       |── sqlite-mcp  (MCP Server · unverified · root)
            |── Cursor IDE  (Agent · 4 servers · 12 tools)
            |── ANTHROPIC_KEY, DB_URL, AWS_SECRET  (Credentials exposed)
            |── query_db, read_file, write_file, run_shell  (Tools at risk)

 Fix: upgrade better-sqlite3 → 11.7.0

Blast radius is the core idea: CVE -> package -> MCP server -> agent -> credentials -> tools. CWE-aware impact keeps a DoS from being reported like credential compromise.

Try the demo

agent-bom agents --demo --offline

The demo uses a curated sample so the output stays reproducible across releases. Every CVE shown is a real OSV/GHSA match against a genuinely vulnerable package version — no fabricated findings (locked in by tests/test_demo_inventory_accuracy.py). For a real scan, run agent-bom agents, or add -p . to fold project manifests and lockfiles into the same result.

Pick your entrypoint

Quick start

pip install agent-bom                  # CLI
# pipx install agent-bom               # isolated global install
# uvx agent-bom --help                 # ephemeral run

agent-bom agents                              # discover + scan local AI agents and MCP servers
agent-bom agents -p .                         # add project lockfiles + manifests
agent-bom check flask@2.0.0 --ecosystem pypi  # pre-install CVE gate
agent-bom image nginx:latest                  # container image scan
agent-bom iac Dockerfile k8s/ infra/main.tf   # IaC scan, optionally `--k8s-live`

After the first scan:

agent-bom agents -p . --remediate remediation.md                  # fix-first plan
agent-bom agents -p . --compliance-export fedramp -o evidence.zip # tamper-evident evidence bundle
pip install 'agent-bom[ui]' && agent-bom serve                    # API + dashboard

Product views

These come from the live product path, using the built-in demo data pushed through the API. See docs/CAPTURE.md for the canonical capture protocol.

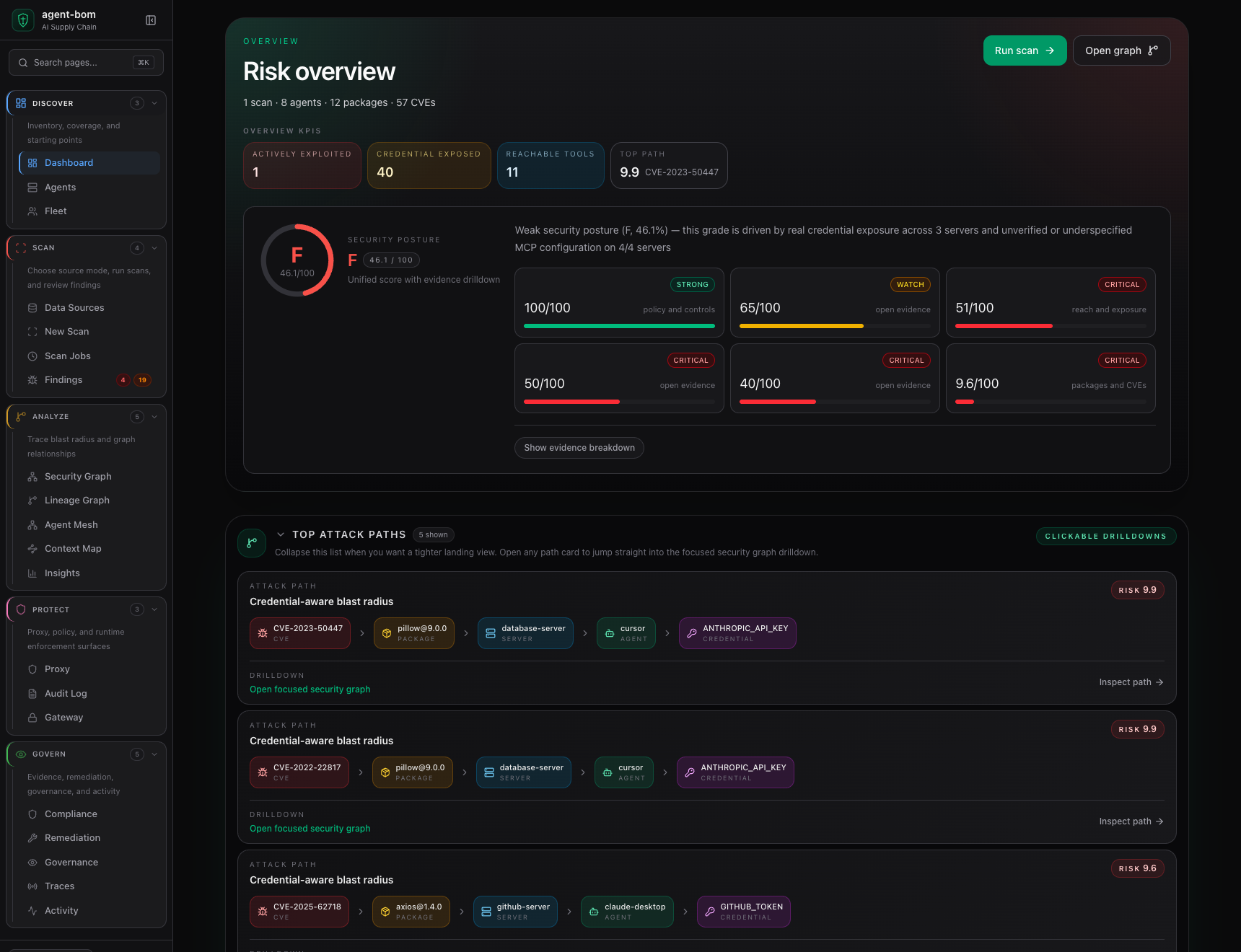

Dashboard — Risk overview

The landing page is the Risk overview: a letter-grade gauge, the four headline counters (actively exploited · credentials exposed · reachable tools · top attack-path risk), the security-posture grade with sub-scores (policy + controls, open evidence, packages + CVEs, reach + exposure, MCP configuration), and the score breakdown for each driver.

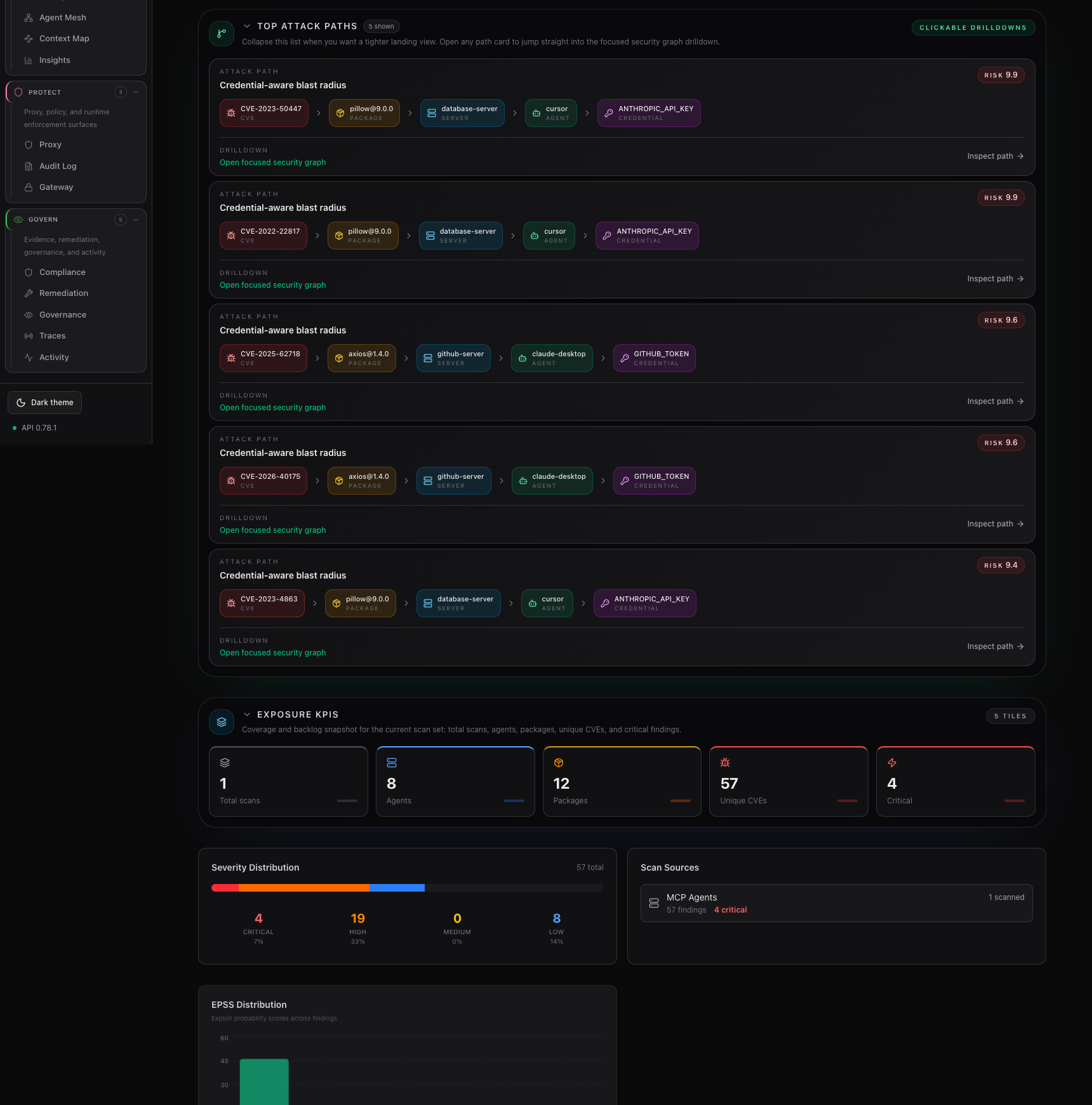

Dashboard — Attack paths and exposure

The second dashboard frame focuses on the fix-first path list and the coverage / backlog KPIs below it, so the attack-path drilldown stays readable without a tall stitched screenshot.

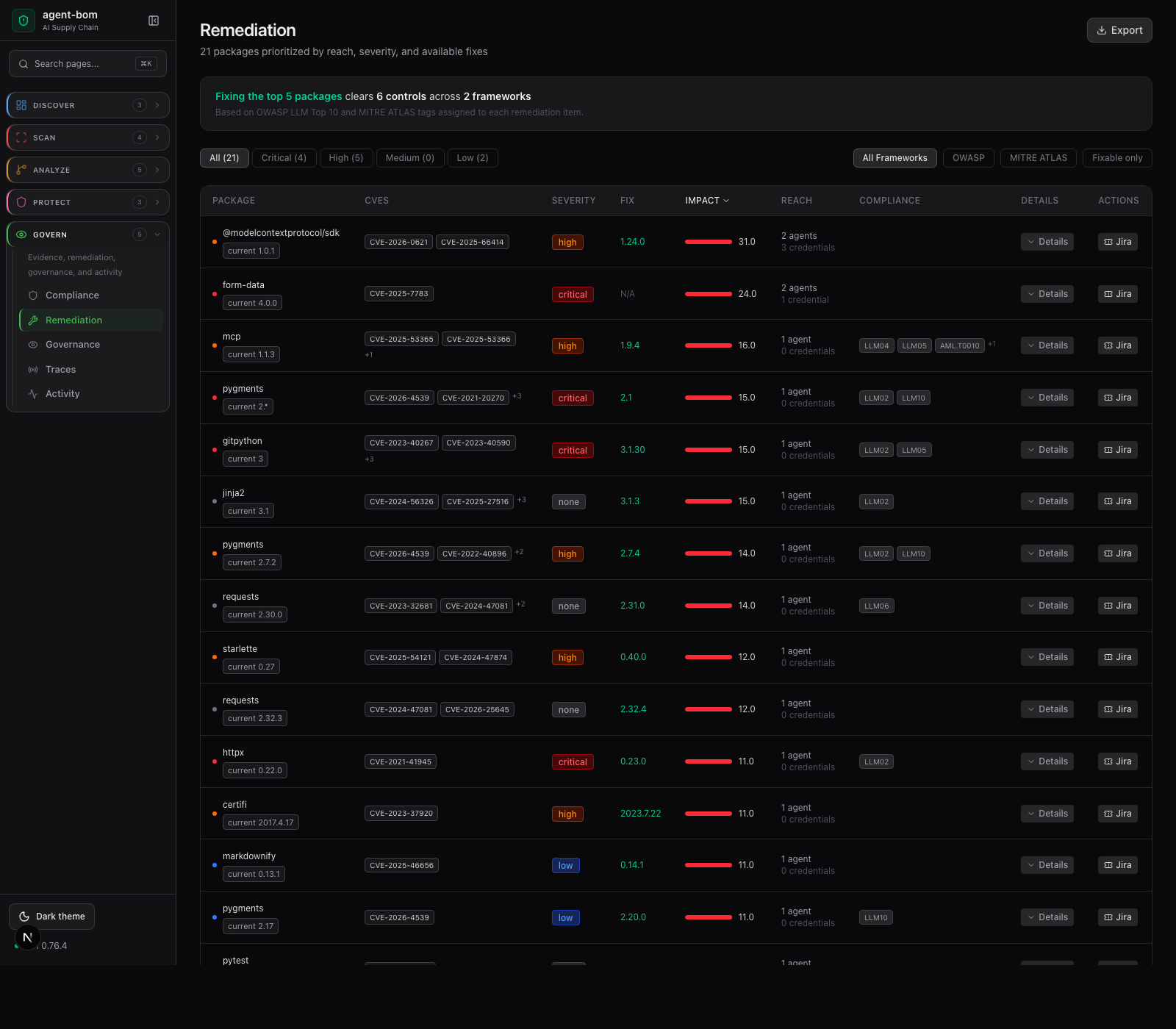

Fix-first remediation

Risk, reach, fix version, and framework context in one review table — operators act without jumping between pages.

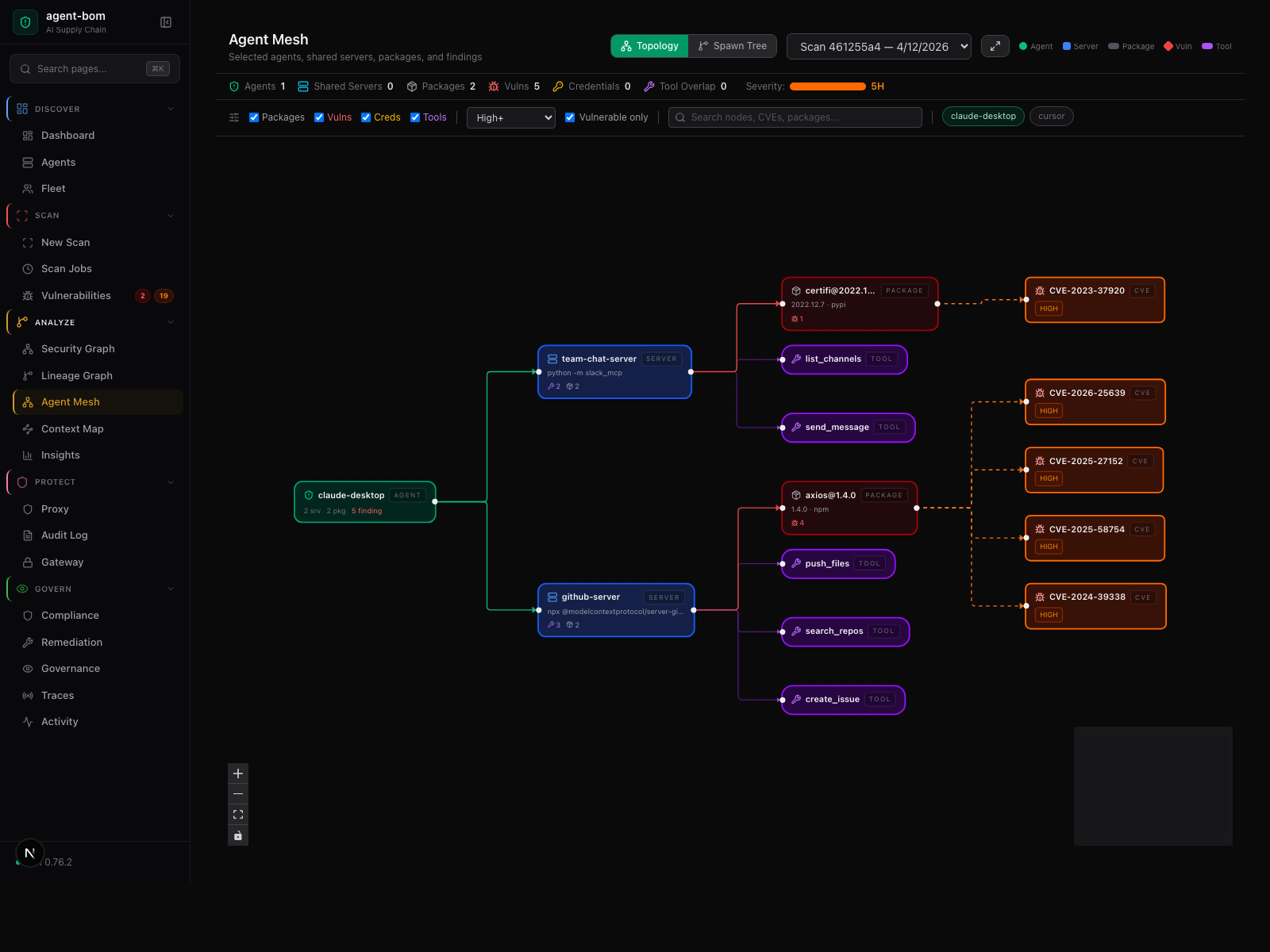

Agent mesh

Agent-centered shared-infrastructure graph — selected agents, their shared MCP servers, tools, packages, and findings.

Inside the engine: parsers, taint, call graph, blast-radius scoring.

External calls are limited to package metadata, version lookups, and CVE enrichment.

Enterprise self-hosted deployment

agent-bom runs end-to-end inside your infrastructure — your AWS account, your VPC, your EKS cluster, your Postgres / ClickHouse / Snowflake, your SSO, your KMS. No hosted control plane. No mandatory vendor backend. No telemetry.

This section is deployment-first: what runs in your infrastructure, what the data path looks like, which stores hold state, and how a focused pilot narrows that same architecture without inventing a different product. The detailed rollout runbooks live under site-docs/deployment/.

Default self-hosted deployment shape

agent-bom is easiest to reason about as three layers:

• entry points: local CLI scans, GitHub Action CI/CD gates, endpoint fleet sync, proxy sidecars/wrappers, and an optional central gateway

• operator plane: the self-hosted API + UI, scan/fleet/gateway/compliance routes, and job orchestration in your EKS cluster or self-managed compute

• data plane: Postgres/Supabase for transactional state, with ClickHouse or Snowflake added only when your deployment actually needs them

flowchart LR
    subgraph entry["Entry points in your environment"]
      cli["CLI scans<br/>agents · image · iac"]
      gha["GitHub Action<br/>CI/CD gate + SARIF"]
      fleet["Endpoint fleet<br/>--push-url sync"]
      proxy["Proxy / sidecar<br/>stdio or HTTP/SSE"]
      gateway["Central gateway<br/>agent-bom gateway serve"]
    end

    subgraph targets["Targets under review"]
      local["Local repos + stdio MCPs"]
      remote["Remote MCPs + SaaS + cluster workloads"]
    end

    subgraph control["Self-hosted operator plane"]
      api["API + UI<br/>findings · graph · remediation"]
      routes["Fleet / policy / compliance routes<br/>tenant-scoped API"]
      jobs["Scan jobs + ingest workers"]
    end

    subgraph data["Your data stores"]
      pg["Postgres / Supabase<br/>jobs · fleet · graph · audit"]
      ch["ClickHouse (optional)<br/>analytics + long-retention events"]
      snow["Snowflake (optional)<br/>warehouse-native deployment"]
    end

    cli --> local
    gha --> local
    fleet --> jobs
    proxy --> remote
    gateway --> remote
    proxy --> routes
    gateway --> routes
    jobs --> api
    routes --> api
    api --> pg
    api -. optional analytics .-> ch
    api -. optional warehouse path .-> snow

This is the architecture. A pilot is just a narrower rollout profile over the same surfaces and stores.

Rollout profiles

The gateway closes the biggest deployment gap for remote MCP usage: one central URL in your EKS fronts N remote MCP upstreams, so laptops do not each need their own proxy config. See the multi-MCP gateway design and the focused EKS rollout.

Core surfaces and entry points, one shared graph

By default, findings, fleet data, audit logs, graph state, and remediation outputs stay in your infrastructure. Optional egress (OSV lookups, NVD enrichment, Slack / Jira / Vanta / Drata webhooks, SIEM / OTLP) is operator-controlled.

Two enforcement shapes, one control plane

Pilot teams pick per workload:

• agent-bom gateway serve — central multi-upstream HTTP gateway. One service in your EKS fronts N MCP upstreams (SaaS MCPs, Snowflake-hosted MCPs, in-cluster MCPs) and every laptop points at /mcp/{server-name} over HTTP/SSE. Fleet-driven auto-discovery via --from-control-plane so the upstream list comes from the scans your team already runs, not a blank YAML. Source: src/agent_bom/gateway_server.py, CLI: src/agent_bom/cli/_gateway.py, tests: tests/test_gateway_server.py.

• agent-bom proxy — per-MCP sidecar or stdio wrapper (proxy.py:527 stdio, proxy.py:258 HTTP/SSE). One instance per server. The honest mode for stdio-only MCPs and for workload-local enforcement where a shared traffic plane would hairpin.

Both modes pull the same gateway policy (/v1/gateway/policies) and push to the same audit sink (/v1/proxy/audit). Central control, edge enforcement, no hairpinning.

Backend matrix — pick what fits your data

agent-bom does not treat every backend as interchangeable. Pick per capability — full detail in backend-parity.md.

Source: src/agent_bom/api/store.py, postgres_store.py, clickhouse_store.py, snowflake_store.py. Parity roadmap: backend-parity.md.

Common deployment shapes:

• Pilot default — Postgres (or Supabase) control plane. Everything works, fastest install.

• Analytics-heavy — Postgres + ClickHouse. Postgres stays transactional; ClickHouse ingests the audit/event firehose.

• Snowflake-native (unified stack) — Snowflake as the primary and analytics store. Uses Hybrid Tables for transactional writes (scan / fleet / policy / audit), columnar tables for analytics, Snowpipe Streaming for real-time ingest, and the Postgres-compatible protocol where clients need it. Cross-cloud replication lets EKS read/write the same tables your Cortex MCPs read, regardless of region. Best when you already govern data there. See snowflake-backend.md.

Ready-made Helm values files

Three shipped examples in deploy/helm/agent-bom/examples/:

The scoped product stack

Most self-hosted teams start with the surfaces below. The focused pilot simply turns on a narrower subset first; it does not use a different architecture. Every one of them maps to code in this repo and ships today.

• scan — discovery, inventory, CVE, image, IaC, Kubernetes, cloud analysis (src/agent_bom/cli/agents/)

• CI/CD gate — GitHub Action packaging of the scan surface for pull-request and release workflows with SARIF output

• fleet — endpoint + collector inventory pushed into the control plane (POST /v1/fleet/sync)

• proxy / runtime — per-MCP sidecar or stdio wrapper — the honest mode for stdio MCPs and workload-local enforcement (src/agent_bom/proxy.py)

• gateway — two things, same namespace:

  • central policy + audit plane (/v1/gateway/*) that every enforcement point pulls + pushes (src/agent_bom/api/routes/gateway.py)

  • central HTTP traffic plane (agent-bom gateway serve) that fronts N remote MCP upstreams behind one URL with fleet-driven auto-discovery, bearer + OAuth2 client-credentials auth injection, inline check_policy, and audit push (src/agent_bom/gateway_server.py, src/agent_bom/cli/_gateway.py)

• API + UI — operator plane for findings, graph, remediation, audit, policy, compliance (src/agent_bom/api/server.py, ui/)

1. External flow — where the data comes from

flowchart LR
    clients["Cursor · Claude · VS Code<br/>Codex · Cortex · Continue"]
    cli["agent-bom agents --push"]
    prx["agent-bom proxy <mcp>"]
    cp(["agent-bom control plane<br/>in your EKS cluster"])

    clients -.-> cli
    clients -.-> prx
    cli -->|HTTPS push| cp
    prx -->|policy pull · audit push| cp

2. Inside your EKS cluster — what actually deploys

The Helm chart installs a single namespace with the control plane, its backup job, and the operator surface. Selected MCP workloads run alongside with an agent-bom-proxy sidecar that pulls gateway policy and pushes audit events back.

flowchart TB
    subgraph ns["namespace: agent-bom"]
        direction TB
        api["Deployment: agent-bom-api<br/>3 replicas · HPA · /readyz drain"]
        ui["Deployment: agent-bom-ui<br/>2 replicas"]
        cron["CronJob: controlplane-backup<br/>pg_dump → S3 (SSE-KMS)"]
        es[("ExternalSecret<br/>API keys · HMAC key · DB URL")]
        obs["PrometheusRule + Grafana dashboard ConfigMap"]
    end

    subgraph work["Selected MCP workloads (same or adjacent ns)"]
        direction LR
        mcpsvc["MCP server pod"]
        proxy["Sidecar: agent-bom-proxy"]
        mcpsvc -.- proxy
    end

    api --- ui
    api --- es
    api -. scrape / alert .- obs
    api --- cron
    proxy -->|policy pull · audit push| api

Outside the namespace but in your VPC: Postgres (primary state), ClickHouse (optional analytics), External Secrets wired to KMS, and Prometheus + Grafana + OTel scraping the API. The restore round-trip is exercised in CI (backup-restore.yml).

3. How a request flows through the control plane

flowchart TB
    REQ([HTTP request])
    BODY[Body size + read timeout]
    TRACE[Trust headers + W3C trace]
    AUTH["Auth — API key · OIDC · SAML"]
    RBAC[RBAC role check]
    TENANT[Tenant context propagation]
    QUOTA[Tenant quota + rate limit]
    ROUTE[Route handler]
    AUDIT[(HMAC audit log)]
    STORE[(Postgres · ClickHouse · Snowflake<br/>KMS at rest)]

    REQ --> BODY --> TRACE --> AUTH --> RBAC --> TENANT --> QUOTA --> ROUTE
    ROUTE --> AUDIT
    ROUTE --> STORE

Every layer is testable on its own; failures emit Prometheus metrics. Operators introspect a live request via GET /v1/auth/debug and see rotation status via GET /v1/auth/policy.

4. Day-1 install on EKS (scripted)

Inside the control plane: OIDC + SAML SSO with RBAC, enforced API-key rotation policy, tenant-scoped quotas + rate limits, HMAC-chained audit log with signed export, KMS-encrypted Postgres backups with a verified restore round-trip in CI (backup-restore.yml), and signed compliance evidence bundles with Ed25519 asymmetric signing (/v1/compliance/{framework}/report — key pinned via /v1/compliance/verification-key, verification cookbook at docs/COMPLIANCE_SIGNING.md).

Pilot teams run:

# 1. Pick your backend shape (postgres default; snowflake / istio / production also shipped)
helm install agent-bom deploy/helm/agent-bom \
  -n agent-bom --create-namespace \
  -f deploy/helm/agent-bom/examples/eks-mcp-pilot-values.yaml

# 2. Smoke-test the install end-to-end — health + auth + fleet + scan + evidence bundle
kubectl -n agent-bom port-forward svc/agent-bom-api 8080:8080 &
./scripts/pilot-verify.sh http://localhost:8080 "$API_KEY"

# 3. Sync endpoint fleet
agent-bom agents --preset enterprise --introspect \
  --push-url https://agent-bom.example.com/v1/fleet/sync

# 4. Wrap one MCP server with the runtime proxy (per-MCP today — see roadmap note above)
agent-bom proxy --policy ./policy.json -- <editor-mcp-command>

# 5. Pull an auditor-ready evidence bundle
curl -sD headers.txt -o soc2.json \
  "https://agent-bom.example.com/v1/compliance/soc2/report" \
  -H "Authorization: Bearer $API_KEY"

See docs/ENTERPRISE_SECURITY_PLAYBOOK.md for the full enterprise trust story — every capability mapped to a code path and a test, with the scripted EKS pilot install at the end. Also: site-docs/deployment/eks-mcp-pilot.md for the focused pilot runbook and docs/COMPLIANCE_SIGNING.md for offline signature verification.

Operator guides by scenario:

Self-hosted SSO uses OIDC or SAML; SAML admins fetch SP metadata at /v1/auth/saml/metadata. Control-plane API keys follow an enforced lifetime policy (AGENT_BOM_API_KEY_DEFAULT_TTL_SECONDS, AGENT_BOM_API_KEY_MAX_TTL_SECONDS); rotate in place at /v1/auth/keys/{key_id}/rotate.

Trust & transparency

agent-bom is a read-only scanner. It never writes configs, never executes MCP servers, never stores credential values. No telemetry. No analytics. Releases are Sigstore-signed with SLSA provenance and self-published SBOMs.

Full trust model: SECURITY_ARCHITECTURE.md · PERMISSIONS.md · SUPPLY_CHAIN.md · RELEASE_VERIFICATION.md.

Compliance

Bundled mappings for FedRAMP, CMMC, NIST AI RMF, ISO 27001, SOC 2, OWASP LLM Top-10, MITRE ATLAS, and EU AI Act. Export tamper-evident evidence packets in one command.

agent-bom agents -p . --compliance-export fedramp -o fedramp-evidence.zip
agent-bom agents -p . --compliance-export nist-ai-rmf -o evidence.zip

The audit log itself is HMAC-chained and exportable as a signed JSON/JSONL bundle at GET /v1/audit/export.

Install & deploy

pip install agent-bom                        # CLI
docker run --rm agentbom/agent-bom agents    # Docker

Backend choices stay explicit and optional:

• SQLite for local and single-node use

• Postgres / Supabase for the primary transactional control plane

• ClickHouse for analytics and event-scale persistence

• Snowflake for warehouse-native governance and selected backend paths

Run locally, in CI, in Docker, in Kubernetes, as a self-hosted API + dashboard, or as an MCP server — no mandatory hosted control plane, no mandatory cloud vendor.

References: PRODUCT_BRIEF.md · PRODUCT_METRICS.md · ENTERPRISE.md · How agent-bom works.

- uses: msaad00/agent-bom@v0.78.1
  with:
    scan-type: scan
    severity-threshold: high
    upload-sarif: true
    enrich: true
    fail-on-kev: true

Container image gate, IaC gate, air-gapped CI, MCP scan, and the SARIF / SBOM examples are documented in site-docs/getting-started/quickstart.md.

MCP server

36 security tools available inside any MCP-compatible AI assistant:

{
  "mcpServers": {
    "agent-bom": {
      "command": "uvx",
      "args": ["agent-bom", "mcp", "server"]
    }
  }
}

Also on Glama, Smithery, MCP Registry, and OpenClaw.

JSON · SARIF · CycloneDX 1.6 (with ML BOM) · SPDX 3.0 · HTML · Graph JSON · Graph HTML · GraphML · Neo4j Cypher · JUnit XML · CSV · Markdown · Mermaid · SVG · Prometheus · Badge · Attack Flow · plain text. OCSF is used for runtime / SIEM event delivery, not as a general report format.

Contributing

git clone https://github.com/msaad00/agent-bom.git && cd agent-bom
pip install -e ".[dev-all]"
pytest && ruff check src/

CONTRIBUTING.md · docs/CLI_DEBUG_GUIDE.md · SECURITY.md · CODE_OF_CONDUCT.md

Apache 2.0 — LICENSE
