AGE-MCP-Server

License Python

Apache AGE MCP Server

Apache AGE™ is a PostgreSQL Graph database compatible with PostgreSQL's distributed assets and leverages graph data structures to analyze and use relationships and patterns in data.

Azure Database for PostgreSQL is a managed database service that is based on the open-source Postgres database engine.

Introducing support for Graph data in Azure Database for PostgreSQL (Preview).

Prerequisites
Install
Usage with Claude
Usage with Visual Studio Code Insiders
Write Operations
Release Notes
For More Information
License

Prerequisites

Python 3.13 and above
This module runs on psycopg
Enable the Apache AGE extension in your Azure Database for PostgreSQL instance. Login Azure Portal, go to 'server parameters' blade, and check 'AGE" on within 'azure.extensions' and 'shared_preload_libraries' parameters. See, above blog post for more information.
Load the AGE extension in your PostgreSQL database.

CREATE EXTENSION IF NOT EXISTS age CASCADE;

Claude Download from Claude Desktop Client or,

brew install claude

Visual Studio Code Insiders Download from Visual Studio Code or,

brew intall visual-studio-code

Install

with brew

brew tap rioriost/age-mcp-server
brew install age-mcp-server

with uv

uv init your_project
cd your_project
uv venv
source .venv/bin/activate
uv add age-mcp-server

with python venv on macOS / Linux

mkdir your_project
cd your_project
python3 -m venv .venv
source .venv/bin/activate
python3 -m pip install age-mcp-server

with python venv on Windows

mkdir your_project
cd your_project
python -m venv venv
.\venv\Scripts\activate
python -m pip install age-mcp-server

Usage with Claude

on macOS claude_desktop_config.json is located in ~/Library/Application Support/Claude/.
on Windows You need to create a new claude_desktop_config.json under %APPDATA%\Claude.
Homebrew on macOS

Homebrew installs age-mcp-server into $PATH.

{
  "mcpServers": {
    "age-manager": {
      "command": "age-mcp-server",
      "args": [
        "--pg-con-str",
        "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username password=your_password",
      ]
    }
  }
}

uv / Pyhon venv

On macOS:

{
  "mcpServers": {
    "age-manager": {
      "command": "/Users/your_username/.local/bin/uv",
      "args": [
        "--directory",
        "/path/to/your_project",
        "run",
        "age-mcp-server",
        "--pg-con-str",
        "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username password=your_password",
      ]
    }
  }
}

On Windows:

{
  "mcpServers": {
    "age-manager": {
      "command": "C:\\Users\\USER\\.local\\bin\\uv.exe",
      "args": [
        "--directory",
        "C:\\path\\to\\your_project",
        "run",
        "age-mcp-server",
        "--pg-con-str",
        "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username password=your_password",
      ]
    }
  }
}

If you need to hide the password or to use Entra ID, you can set --pg-con-str as follows.

{
  "mcpServers": {
    "age-manager": {
        ...
        "--pg-con-str",
        "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username",
        ...
      ]
    }
  }
}

And, you need to set PGPASSWORD env variable, or to install Azure CLI and sign into Azure with your Azure account.

After saving claude_desktop_config.json, start Claude Desktop Client.

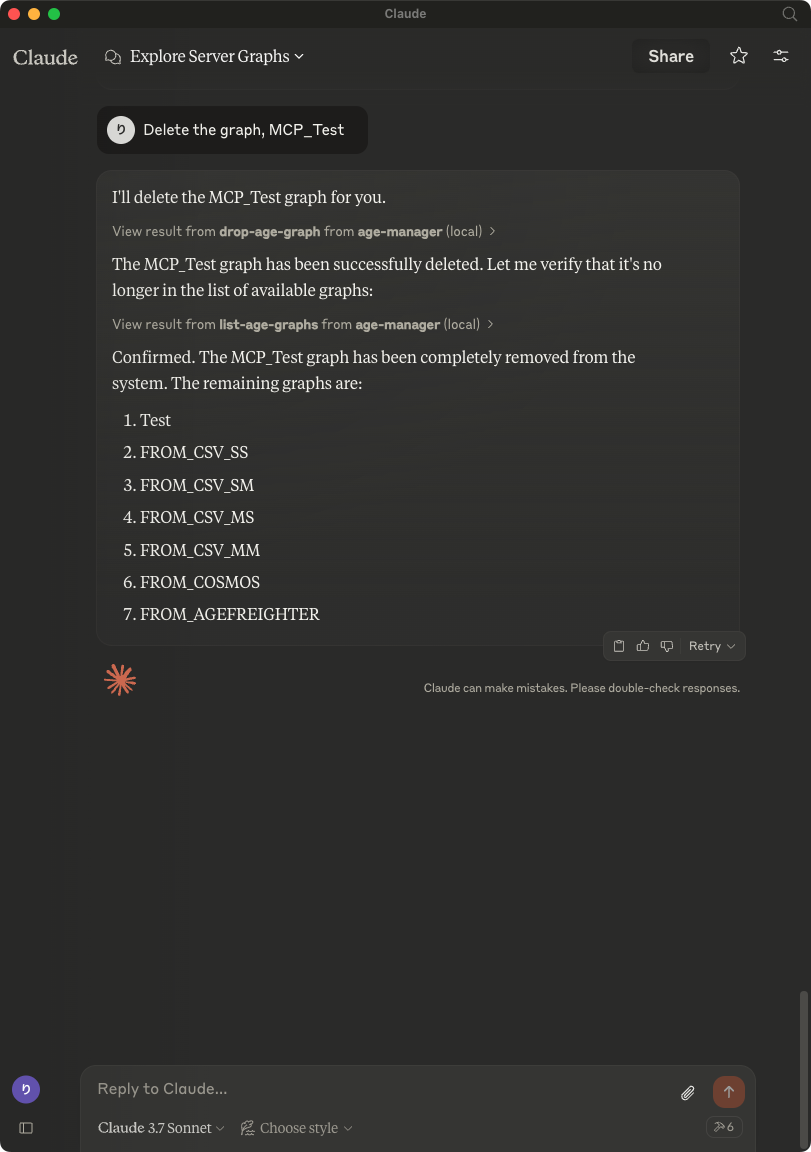

Show me graphs on the server Show me a graph schema of FROM_AGEFREIGHTER Pick up a customer and calculate the amount of its purchase. Find another customer buying more than Lisa OK. Please make a new graph named MCP_Test Make a node labeled 'Person' with properties, name=Rio, age=52 Please make an another node labeled 'Company' with properties, name=Microsoft Can you put a relation, "Rio WORK at Microsoft"? Delete the graph, MCP_Test

Claude on Windows

Usage with Visual Studio Code

After installing, [Preferences]->[Settings] and input mcp to [Search settings].

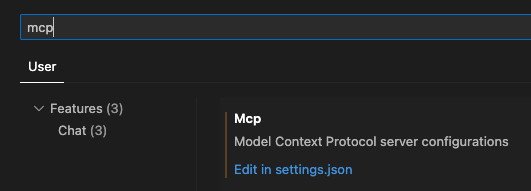

MCP Settings in Preferences

Edit the settings.json as followings:

{
    "mcp": {
        "inputs": [],
        "servers": {
            "age-manager": {
            "command": "/Users/your_user_name/.local/bin/uv",
            "args": [
                "--directory",
                "/path/to/your_project",
                "run",
                "age-mcp-server",
                "--pg-con-str",
                "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username password=your_password",
                "--debug"
            ]
            }
        }
    }
}

And then, you'll see start to start the AGE MCP Server.

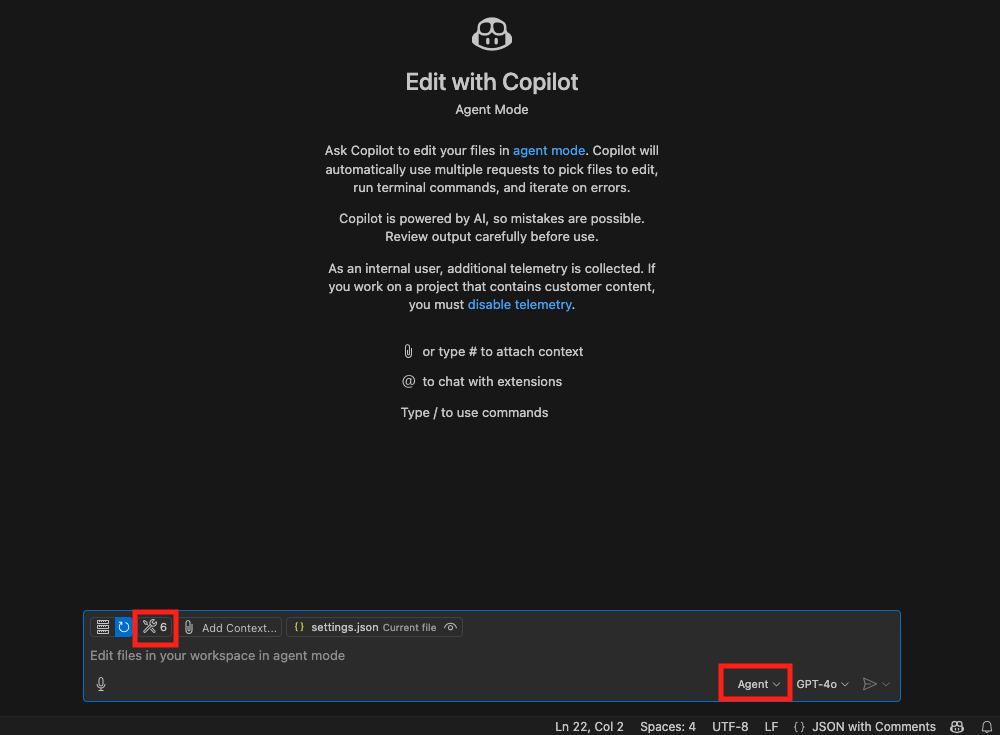

Switch the Chat window to agent mode.

VSCode Agent

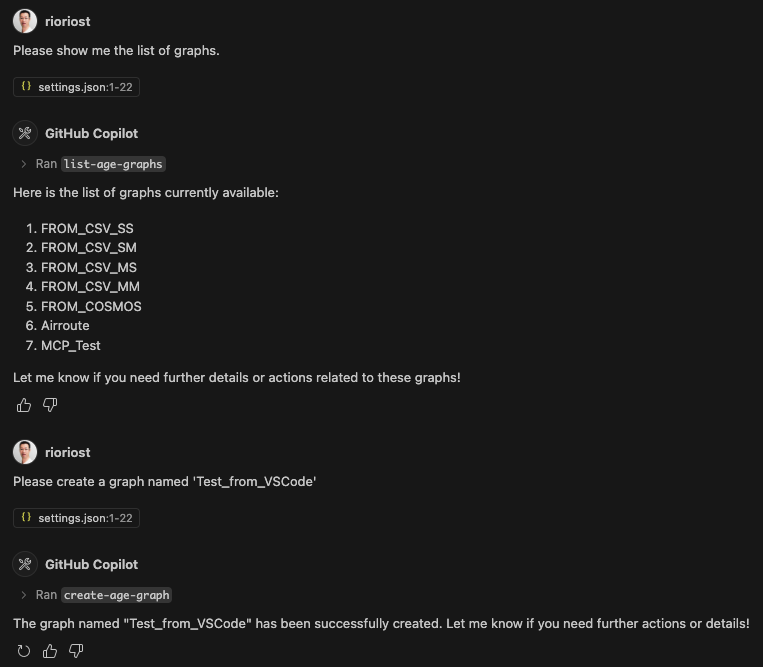

Now, you can play with your graph data via Visual Studio Code!

VSCode Agent

Write Operations

AGE-MCP-Server prohibits write operations by default for safety. If you want to enable write operations, you can use the --allow-write flag.

{
  "mcpServers": {
    "age-manager": {
      "command": "age-mcp-server",
      "args": [
        "--pg-con-str",
        "host=your_server.postgres.database.azure.com port=5432 dbname=postgres user=your_username password=your_password",
        "--allow-write"
      ]
    }
  }
}

Release Notes

0.2.10 Release

Dependency Update

0.2.9 Release

Dependency Update

0.2.8 Release

Add support for VSCode(Stable)

0.2.7 Release

Add support for VSCode Insiders

0.2.6 Release

Fix a typo

0.2.5 Release

Support connection with Entra ID

0.2.4 Release

Dependency Update

0.2.3 Release

Dependency Update

0.2.2 Release

Drop a conditional test of CREATE operation by adding RETURN to the description for write-age-cypher tool.

0.2.1 Release

Fix a bug in node/edge creation

0.2.0 Release

Add multiple graph support
Add graph creation and deletion support
Obsolete --graph-name argument

0.1.8 Release

Add --allow-write flag

0.1.7 Release

Add Windows support

0.1.6 Release

Fix parser for RETURN values

0.1.5 Release

Draft release

0.1.4 Release

Draft release

0.1.3 Release

Draft release

0.1.2 Release

Draft release

0.1.1 Release

Draft release

0.1.0a1 Release

Draft release

For More Information

Apache AGE : https://age.apache.org/
GitHub : https://github.com/apache/age
Document : https://age.apache.org/age-manual/master/index.html

License

MIT License
