The Revit MCP server enables AI-driven interaction with Autodesk Revit through the MCP protocol, allowing you to:
Retrieve Data: Access information about the current view, selected elements, and available family types with filtering options
Element Management: Create, modify, and delete various elements:
Point-based (doors, windows, furniture)
Line-based (walls, beams, pipes)
Surface-based (floors, ceilings, roofs)
Model Enhancement: Color elements based on parameters, tag walls, and batch process elements for complex modeling tasks
Code Execution: Send and execute custom C# code directly in Revit
Reset Model: Delete process model when executing continuous dialog
Click on "Install Server".
Wait a few minutes for the server to deploy. Once ready, it will show a "Started" state.
In the chat, type
@followed by the MCP server name and your instructions, e.g., "@Revit MCPshow me all the walls in the current view"
That's it! The server will respond to your query, and you can continue using it as needed.
Here is a step-by-step guide with screenshots.
🔴
Deprecation notice, this repo is being archived in favour of the mono repo approch for the mcphttps://github.com/mcp-servers-for-revit/mcp-servers-for-revit Simpler CI, less confusion for noobs, npm package and simpler install
revit-mcp
English | 简体中文
Description
revit-mcp allows you to interact with Revit using the MCP protocol through MCP-supported clients (such as Claude, Cline, etc.).
This project is the server side (providing Tools to AI), and you need to use revit-mcp-plugin (driving Revit) in conjunction.
Related MCP server: Revit MCP Server
Features
Allow AI to get data from the Revit project
Allow AI to drive Revit to create, modify, and delete elements
Send AI-generated code to Revit to execute (may not be successful, successful rate is higher in some simple scenarios with clear requirements)
Requirements
nodejs 18+
Complete installation environment still needs to consider the needs of revit-mcp-plugin, please refer to revit-mcp-plugin
Installation
1. Build local MCP service
Install dependencies
npm installBuild
npm run build2. Client configuration
Claude client
Claude client -> Settings > Developer > Edit Config > claude_desktop_config.json
{
"mcpServers": {
"revit-mcp": {
"command": "node",
"args": ["<path to the built file>\\build\\index.js"]
}
}

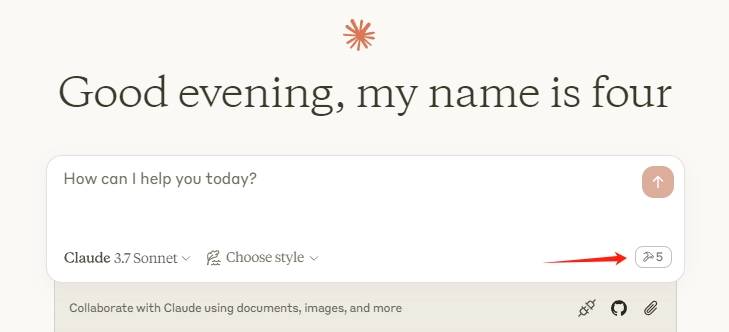

}Restart the Claude client. When you see the hammer icon, it means the connection to the MCP service is normal.
Framework
flowchart LR
ClaudeDesktop --> revit-mcp --> SocketService--commandName-->CommandSet--command-->CommandExecute
CommandManager --> CommandSet
CommandExecute --executeResult--> SocketService
CommandProject1 --> CommandManager
CommandProject2 --> CommandManager
CommandProject... --> CommandManager
subgraph ide1 [MCPClient]
ClaudeDesktop
end
subgraph ide2 [MCPServer]
revit-mcp
end
subgraph ide3 [Revit]
subgraph ide3.1 [revit-mcp-plugin]
SocketService
CommandSet
CommandManager
CommandExecute
end
endSupported Tools
Name | Description |
get_current_view_info | Get current active view info |
get_current_view_elements | Get elements from the current active view |
get_available_family_types | Get available family types in current project |
get_selected_elements | Get currently selected elements |
get_material_quantities | Calculate material quantities and takeoffs |
ai_element_filter | Intelligent element querying tool for AI assistants |
analyze_model_statistics | Analyze model complexity with element counts |
create_point_based_element | Create point-based elements (door, window, furniture) |
create_line_based_element | Create line-based elements (wall, beam, pipe) |
create_surface_based_element | Create surface-based elements (floor, ceiling, roof) |
create_grid | Create a grid system with smart spacing generation |
create_level | Create levels at specified elevations |
create_room | Create and place rooms at specified locations |
create_structural_framing_system | Create a structural beam framing system |
delete_element | Delete elements by ID |
operate_element | Operate on elements (select, setColor, hide, etc.) |
color_elements | Color elements based on a parameter value |
tag_all_walls | Tag all walls in the current view |
tag_all_rooms | Tag all rooms in the current view |
export_room_data | Export all room data from the project |
store_project_data | Store project metadata in local database |
store_room_data | Store room metadata in local database |
query_stored_data | Query stored project and room data |
send_code_to_revit | Send C# code to Revit to execute |
say_hello | Display a greeting dialog in Revit (connection test) |
