Mindmap MCP Server

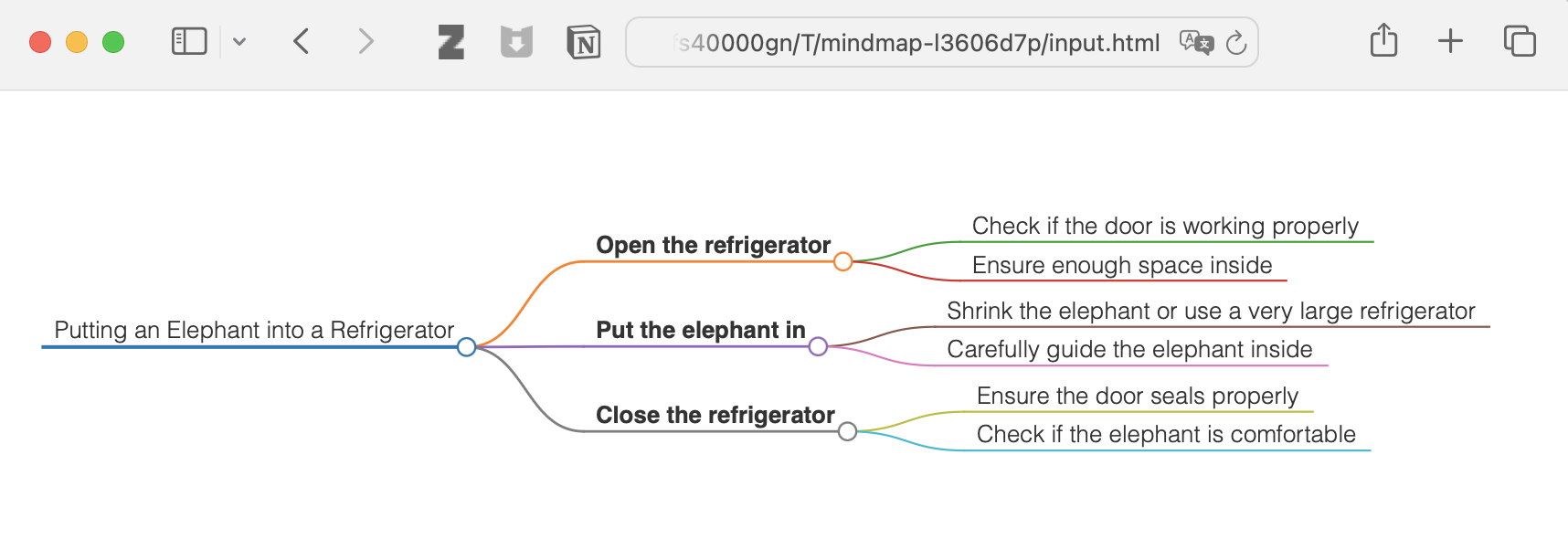

# Mindmap MCP Server <p align="center"> <img src="https://raw.githubusercontent.com/YuChenSSR/pics/master/imgs/2025-03-21/JMi7Mn89Hw5ikd9z.jpeg" alt="mindmap_mcp" width="50%"> </p> A Model Context Protocol (MCP) server for converting Markdown content to interactive mindmaps. ## Installation ```bash pip install mindmap-mcp-server ``` Or using `uvx`: ```bash uvx mindmap-mcp-server ``` Or using `docker`. ## Prerequisites This package requires Node.js to be installed when using command `python` or `uvx` to run the server. ## Usage ### With Claude Desktop or other MCP clients Add this server to your `claude_desktop_config.json`: <details> <summary>using `uvx`:</summary> ```json { "mcpServers": { "mindmap": { "command": "uvx", "args": ["mindmap-mcp-server", "--return-type", "html"] } } } ``` or recommended: ```json { "mcpServers": { "mindmap": { "command": "uvx", "args": ["mindmap-mcp-server", "--return-type", "filePath"] } } } ``` we use `--return-type` to specify the return type of the mindmap content, you can choose `html` or `filePath` according to your needs. `html` will return the entire HTML content of the mindmap, which you can preview in your AI client's artifact;   `filePath` will save the mindmap to a file and return the file path,which you can open in your browser. It can **save your tokens** !   </details> <details> <summary>using `python`:</summary> Using [a specific Python file](https://github.com/YuChenSSR/mindmap-mcp-server/blob/main/mindmap_mcp_server/server.py) in this repository: ```json { "mcpServers": { "mindmap": { "command": "python", "args": ["/path/to/your/mindmap_mcp_server/server.py", "--return-type", "html"] } } } ``` or ```json { "mcpServers": { "mindmap": { "command": "python", "args": ["/path/to/your/mindmap_mcp_server/server.py", "--return-type", "filePath"] } } } ``` we use `--return-type` to specify the return type of the mindmap content, you can choose `html` or `filePath` according to your needs. see using \`uvx\` for more details. </details> <details> <summary>using `docker`:</summary> First, you pull the image: ```bash docker pull ychen94/mindmap-converter-mcp ``` Second, set the server: ```json { "mcpServers": { "mindmap-converter": { "command": "docker", "args": ["run", "--rm", "-i", "-v", "/path/to/output/folder:/output", "ychen94/mindmap-converter-mcp:latest"] } } } ``` ⚠️ Replace `/path/to/output/folder` with an actual path on your system where you want to save mind maps, such as `/Users/username/Downloads` on macOS or `C:\\Users\\username\\Downloads` on Windows. **Tools Provided in the docker container** The server provides the following MCP tools: 1. **markdown-to-mindmap-content** Converts Markdown to an HTML mind map and returns the entire HTML content. You don't use the args: `-v` and `/path/to/output/folder:/output` in the command `docker`. **Parameters**: • markdown (string, required): The Markdown content to convert • toolbar (boolean, optional): Whether to show the toolbar (default: true) **Best for**: Simple mind maps where the HTML content size isn't a concern. And you can use **artifact** in your AI client to preview the mindmap. 2. **markdown-to-mindmap-file** Converts Markdown to an HTML mind map and saves it to a file in the mounted directory. **Parameters**: • markdown (string, required): The Markdown content to convert • filename (string, optional): Custom filename (default: auto-generated timestamp name) • toolbar (boolean, optional): Whether to show the toolbar (default: true) **Best for**: Complex mind maps or when you want to **save the tokens** for later use. you can open the html file in your browser to view the mindmap. Also you can use the [iterm-mcp-server](https://github.com/ferrislucas/iterm-mcp) or other terminals' mcp servers to open the file in your browser without interrupting your workflow. </details> ### Troubleshooting **File Not Found** If your mind map file isn't accessible: 1 Check that you've correctly mounted a volume to the Docker container 2 Ensure the path format is correct for your operating system 3 Make sure Docker has permission to access the directory **Docker Command Not Found** 1 Verify Docker is installed and in your PATH 2 Try using the absolute path to Docker **Server Not Appearing in Claude** 1 Restart Claude for Desktop after configuration changes 2 Check Claude logs for connection errors 3 Verify Docker is running **Advanced Usage Using with Other MCP Clients** This server works with any MCP-compatible client, not just Claude for Desktop. The server implements the Model Context Protocol (MCP) version 1.0 specification. ## Features This server provides a tool for converting Markdown content to mindmaps using the `markmap-cli` library: - Convert Markdown to interactive mindmap HTML - Option to create offline-capable mindmaps - Option to hide the toolbar - Return either HTML content or file path ## Example In Claude, you can ask: 1. "**give a mindmap for the following markdown code, using a mindmap tool:** ``` # Project Planning ## Research ### Market Analysis ### Competitor Review ## Design ### Wireframes ### Mockups ## Development ### Frontend ### Backend ## Testing ### Unit Tests ### User Testing ``` " if you want to save the mindmap to a file, and then open it in your browser using the iTerm MCP server: 2. "**give a mindmap for the following markdown input_code using a mindmap tool, after that,use iterm to open the generated html file. input_code:** ``` markdown content ``` " 3. "**Think about the process of putting an elephant into a refrigerator, and provide a mind map. Open it with a terminal.**" <details> <summary>see the result</summary>   </details> **and more** ## License This project is licensed under the MIT License. For more details, please see the LICENSE file in [this project repository](https://github.com/YuChenSSR/mindmap-mcp-server) --- If this project is helpful to you, please consider giving it a Star ⭐️ The advancement of technology ought to benefit all individuals rather than exploit the general populace.
