MCP Image Generation Server

A Model Context Protocol (MCP) server for image generation using multiple AI providers including Tencent Hunyuan, OpenAI GPT Image, and Doubao APIs.

Version: 0.2.0

Features

🎯 Multi-API Provider Support

• Tencent Hunyuan: 18 artistic styles with Chinese optimization

• OpenAI GPT Image: High-quality image generation with English optimization

• Doubao (ByteDance): Balanced quality and speed with 12 styles

🚀 Core Features

• Generate images from text descriptions

• Support for multiple image styles across different providers

• Support for different image resolutions

• Negative prompts for excluding unwanted elements

• Intelligent provider selection and management

• Unified parameter format with provider-specific options

🌐 Transport Modes (New in v0.2.0)

• stdio Transport: Local IDE integration (Cursor, Windsurf)

• HTTP Transport: Remote access and enterprise deployment

  • Multi-client concurrent connections

  • Bearer Token authentication

  • Session management

  • RESTful API endpoints

  • Suitable for cloud deployment and remote access

Why HTTP Transport? Version 0.2.0 adds Streamable HTTP support (MCP's official standard as of 2024-11-05) to enable:

• Remote Access: Claude remote MCP requires public HTTP endpoints (stdio only works locally)

• Enterprise Deployment: Centralized service deployment with multiple concurrent clients

• Cloud Native: Compatible with containers, Kubernetes, and load balancers

Note: This uses Streamable HTTP (POST/GET/DELETE), not the deprecated SSE-only approach. SSE is retained for compatibility but Streamable HTTP is the recommended standard.

🔧 Smart Provider Management

• Automatic detection of available API providers

• Support for specifying particular providers or automatic selection

• Unified error handling and retry mechanisms

• Flexible parameter formats: provider:style and provider:resolution

Installation

Using UV (Recommended)

UV is a fast, modern Python package manager. Recommended usage:

Using Traditional pip

If you prefer traditional pip:

Environment Setup

Create a .env file in the project root. See .env.example for all available options.

Basic Configuration

Transport Configuration (Optional)

Usage

🔄 Transport Modes

This server supports two transport modes:

🚀 Quick Start

Unified Entry Point (Recommended)

The unified server will automatically use the transport mode specified in your .env file:

• MCP_TRANSPORT=stdio → Local stdio mode for IDE integration

• MCP_TRANSPORT=http → HTTP server mode for remote access

Legacy Examples

📡 HTTP Transport Mode

For remote access and enterprise deployment, use HTTP transport:

1. Configure HTTP Mode

2. Start HTTP Server

Server will start on http://127.0.0.1:8000 with endpoints:

• GET /health - Health check

• POST /mcp/v1/messages - Send JSON-RPC messages

• GET /mcp/v1/messages - Subscribe to SSE events

• DELETE /mcp/v1/messages - Close session

• GET /images/{filename} - Serve generated image files

generate_image tool returns images[].url for HTTP clients.
If server is exposed through reverse proxy/public domain, set MCP_PUBLIC_BASE_URL to ensure URL is externally reachable. /images/* is intentionally public so browser/front-end image rendering works even when MCP API auth is enabled.

Best-practice agent flow:

1. Call generate_image to get renderable image + stable image_id/url.

2. Call get_image_data(image_id=...) only when programmable base64 text is required.

3. Test HTTP Server

4. Use HTTP Client

For detailed HTTP transport documentation, see HTTP_TRANSPORT_GUIDE.md

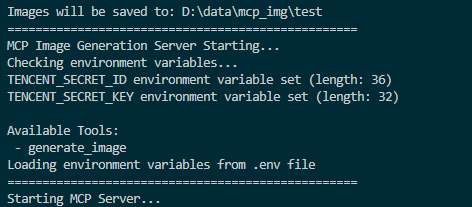

Screenshot of MCP server running successfully:

Connecting to the Server

You can connect from MCP-compatible client(recommand cursor now). The server provides the following features:

Resources

• styles://list - List all available image styles

• resolutions://list - List all available image resolutions

Tools

• generate_image - Generate images based on prompt, style, and resolution (OpenAI also supports background/output_format/output_compression/moderation)

• get_image_data - Fetch base64 text for a previously generated image by image_id

Prompts

• image_generation_prompt - Create image generation prompt templates

🎨 Multi-API Usage Examples

Basic Usage

Advanced Parameter Usage

📊 Supported Providers and Parameters

Tencent Hunyuan

• Styles: 18 options including riman, xieshi, shuimo, saibopengke, youhua

• Resolutions: 8 options from 768:768 to 1280:720

• Specialty: Chinese-optimized, rich artistic styles

OpenAI GPT Image

• Styles: 12 options including natural, vivid, realistic, artistic, anime

• Resolutions: 4 options: 1024x1024, 1536x1024, 1024x1536, auto

• Advanced options: background, output_format, output_compression, moderation (via MCP client)

• Specialty: High-quality output, English optimization

Doubao (ByteDance)

• Styles: 12 options including general, anime, chinese_painting, cyberpunk

• Resolutions: Model-dependent (auto-validated by configured model/fallback model)

• Specialty: Balanced quality and speed

Cursor Integration

For integration setup details and sample config JSON, see:

• docs/VSCODE_INTEGRATION.md

Recommended minimum environment variables:

• MCP_IMAGE_SAVE_DIR

• Provider credentials you actually use: TENCENT_SECRET_ID + TENCENT_SECRET_KEY, OPENAI_API_KEY, DOUBAO_API_KEY

Optional provider/model controls:

• OPENAI_BASE_URL, OPENAI_MODEL

• DOUBAO_ENDPOINT, DOUBAO_MODEL, DOUBAO_FALLBACK_MODEL

• MCP_DEFAULT_PROVIDER (recommended when multiple providers are enabled)

After changing .env model/default-provider values at runtime, call reload_config.

🧪 Testing

The project includes comprehensive testing tools:

Protocol Tests (No API Key Required)

This tests:

• ✅ Health check endpoint

• ✅ MCP initialization handshake

• ✅ Tools listing

• ✅ Resources listing and reading

• ✅ Prompts listing

• ✅ Session management

Functional Tests (API Key Required)

This additionally tests:

• ✅ Real image generation with OpenAI

• ✅ Real image generation with Hunyuan

• ✅ Real image generation with Doubao

Note: At least one API key must be configured in .env to run functional tests.

Troubleshooting

General Issues

• Ensure environment variables are set correctly

• Check for spaces in paths; use quotes if needed

• Ensure the virtual environment is activated (if using one)

• Try running the server script directly to check for errors

• Check UV environment with uv --version

HTTP Transport Issues

• Connection refused: Ensure server is running on correct host/port

• 401 Unauthorized: Check MCP_AUTH_TOKEN configuration

• 404 Session not found: Re-initialize connection to get new session ID

• No provider available: Configure at least one API provider in .env

For detailed troubleshooting, see HTTP_TRANSPORT_GUIDE.md

Front-end Demo

For a front-end integration example, see web-design-demo/. This example demonstrates how to develop a real project using Cursor IDE, where you can generate and manage images directly within your development environment using our MCP tool 🛠️. No need to switch between different image generation tools or leave your IDE - everything can be done right in your development workflow ✨.

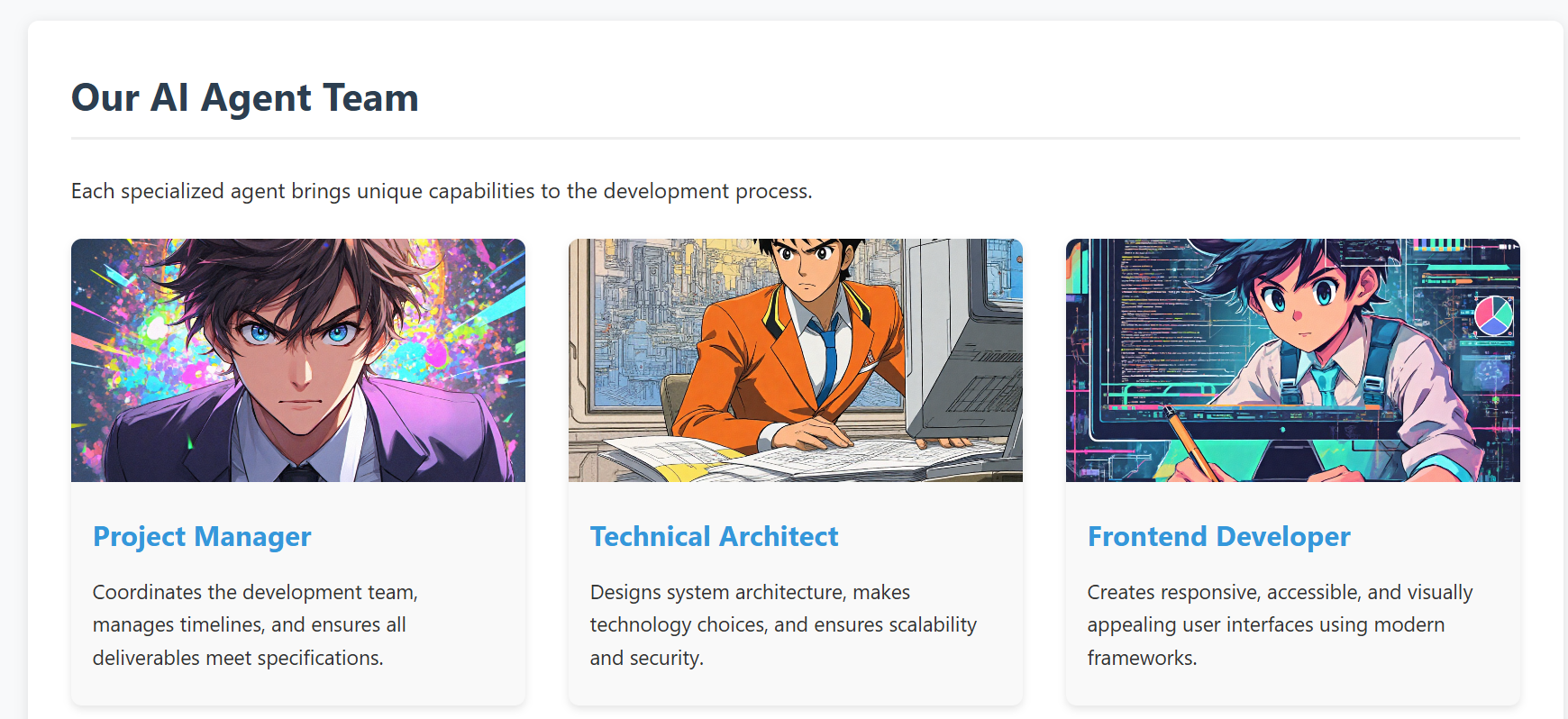

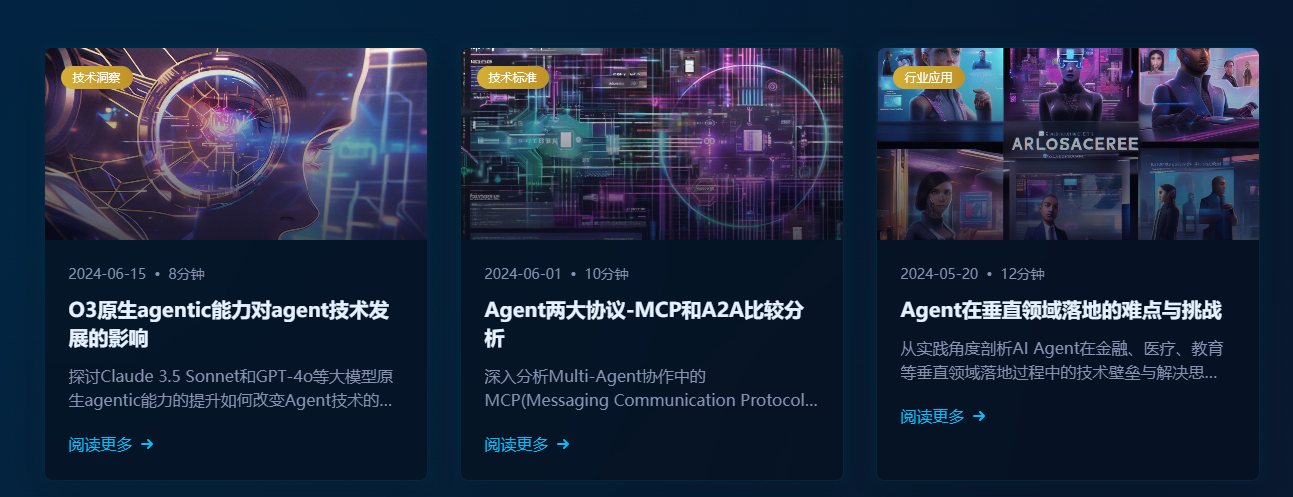

• screenshot of the demo web

API Reference

Multi-API Architecture

The project now supports multiple image generation APIs through a unified interface:

Supported APIs

1. Tencent Hunyuan Image Generation API (Original)

2. OpenAI GPT Image API (New)

3. Doubao Image Generation API (New)

Unified MCP Resources

• providers://list - List all available providers

• styles://list - List all styles from all providers

• resolutions://list - List all resolutions from all providers

• styles://provider/{provider_name} - Get styles for specific provider

• resolutions://provider/{provider_name} - Get resolutions for specific provider

Enhanced MCP Tools

• generate_image - Multi-provider image generation with intelligent routing

• get_image_data - Retrieve base64 text data for a generated image by id

• reload_config - Reload runtime config/models from env/.env without process restart (safe subset only)

Tencent Hunyuan Image Generation API

The project originally used and continues to support Tencent Hunyuan Image Generation API. Here are the key details:

API Endpoints

• Domain: hunyuan.tencentcloudapi.com

• Region: ap-guangzhou (Currently only supports Guangzhou region)

• Default API Rate Limit: 20 requests/second

• Concurrent Tasks: Default 1 task at a time

Task Flow

1. Submit Task: Submit an asynchronous image generation task with text description

2. Query Task: Get task status and results using task ID

3. Result URL: Generated image URLs are valid for 1 hour

For detailed API documentation and pricing, please refer to:

• API Documentation

• Pricing Details

OpenAI GPT Image API

API Features

• High-quality image generation

• Automatic prompt optimization

• Multiple style options

• High-resolution output support

Doubao API (ByteDance)

API Features

• ByteDance's proprietary image generation model

• Balanced quality and speed

• Chinese and English prompt support

• Multiple artistic styles

RoadMap

• Version 0.2.0 (Current)

  • ✅ Tencent Hunyuan image generation API

  • ✅ OpenAI GPT Image API integration

  • ✅ Doubao API integration

  • ✅ Multi-provider management system

  • ✅ Intelligent provider selection

  • ✅ Unified parameter interface

  • ✅ HTTP transport with Streamable HTTP protocol

  • ✅ Remote access support

  • ✅ Multi-client concurrent connections

  • ✅ Bearer Token authentication

  • ✅ Session management

  • ✅ Comprehensive testing suite

• Future Plans

  • Support more mainstream text-to-image model APIs, including:

    • Qwen-Image (Qwen/Wan family)

    • Open-source model API services (for example: FLUX, SDXL/SD3.5)

  • Advanced features:

    • Image editing and modification

    • Batch image generation

    • Style transfer capabilities

    • Custom model fine-tuning support

  • Enhanced MCP integration:

    • Real-time generation progress

    • Image history and management

    • Advanced prompt templates

Community contributions for more model integrations and new features are welcome!

Compatibility

• stdio: Verified with Cursor and Windsurf.

• HTTP (Streamable HTTP): Works with MCP clients that support HTTP transport.

• For other clients/environments, compatibility depends on the client-side MCP implementation.

Contributing

We welcome contributions of all kinds! Here are some ways you can help:

• 🐛 Report bugs and issues

• 💡 Suggest new features or improvements

• 🔧 Submit pull requests

• 🎨 Add support for more image generation models

Getting Started with Contributing

1. Fork the repository

2. Create your feature branch (git checkout -b feature/AmazingFeature)

3. Commit your changes (git commit -m 'feat: add some AmazingFeature')

4. Push to the branch (git push origin feature/AmazingFeature)

5. Open a Pull Request

Please make sure to update tests as appropriate and follow the existing coding style.

We appreciate your interest in making this project better!
