m3u8 MCP

m3u8 MCP Server - A desktop application that provides m3u8/HLS streaming capabilities through the Model Context Protocol (MCP), built with Tauri, React, and Rust.

📝 Related article: Understanding m3u8 files and FFmpeg streaming (Japanese)

🚀 Features

Core Features

• MCP Server: Streamable HTTP server using Axum on configurable port (default: 37650)

• m3u8 Parsing: Full support for parsing HLS playlists (master and media playlists)

• FFmpeg Integration: Download and convert streaming media using FFmpeg

• Segment Extraction: Extract and display all segment URLs from playlists

• Internationalization: Support for English and Japanese languages

• Persistent Configuration: Securely stores settings locally (~/.m3u8-mcp/config.json)

• Cross-Platform: Works on macOS, Windows, and Linux

Advanced Features 🎉

• Folder Selection Dialog: Choose download destination with native OS dialog

• Download Progress: Real-time download progress tracking with speed and size info

• URL History: Automatic tracking of recently used m3u8 URLs

• Segment Display: View and copy individual segment URLs with pagination

• Content Disclaimer: Built-in disclaimer system for responsible usage

• Menu System: Clean hamburger menu for settings organization

• MCP Status Indicator: Visual indicator for MCP server connection status

• Local SQLite Cache: Store parsed playlists and metadata for offline access

Related MCP server: ffmpeg-mcp

📋 Prerequisites

• Node.js (v16 or higher)

• Rust (latest stable)

• npm/pnpm/yarn

• FFmpeg installed on your system

• Your favorite AI assistant with MCP support (Claude, Cursor, etc.)

🛠️ Installation

1. Clone the repository:

git clone https://github.com/yourusername/m3u8-mcp.git
cd m3u8-mcp

2. Install dependencies:

npm install

3. Start the development server:

npm run tauri dev

🎮 Usage

Setting up FFmpeg Path

1. Configure FFmpeg:

   • Click the menu button (☰) in the top-left corner

   • Select "FFmpeg Configuration"

   • Enter the path to your FFmpeg binary (or use system FFmpeg if in PATH)

2. Start the MCP Server:

   • Click the menu button (☰) or the MCP status indicator

   • Select "MCP Server Control"

   • Choose your port and click "Connect to AI via MCP"

   • Copy the connection command for your AI assistant

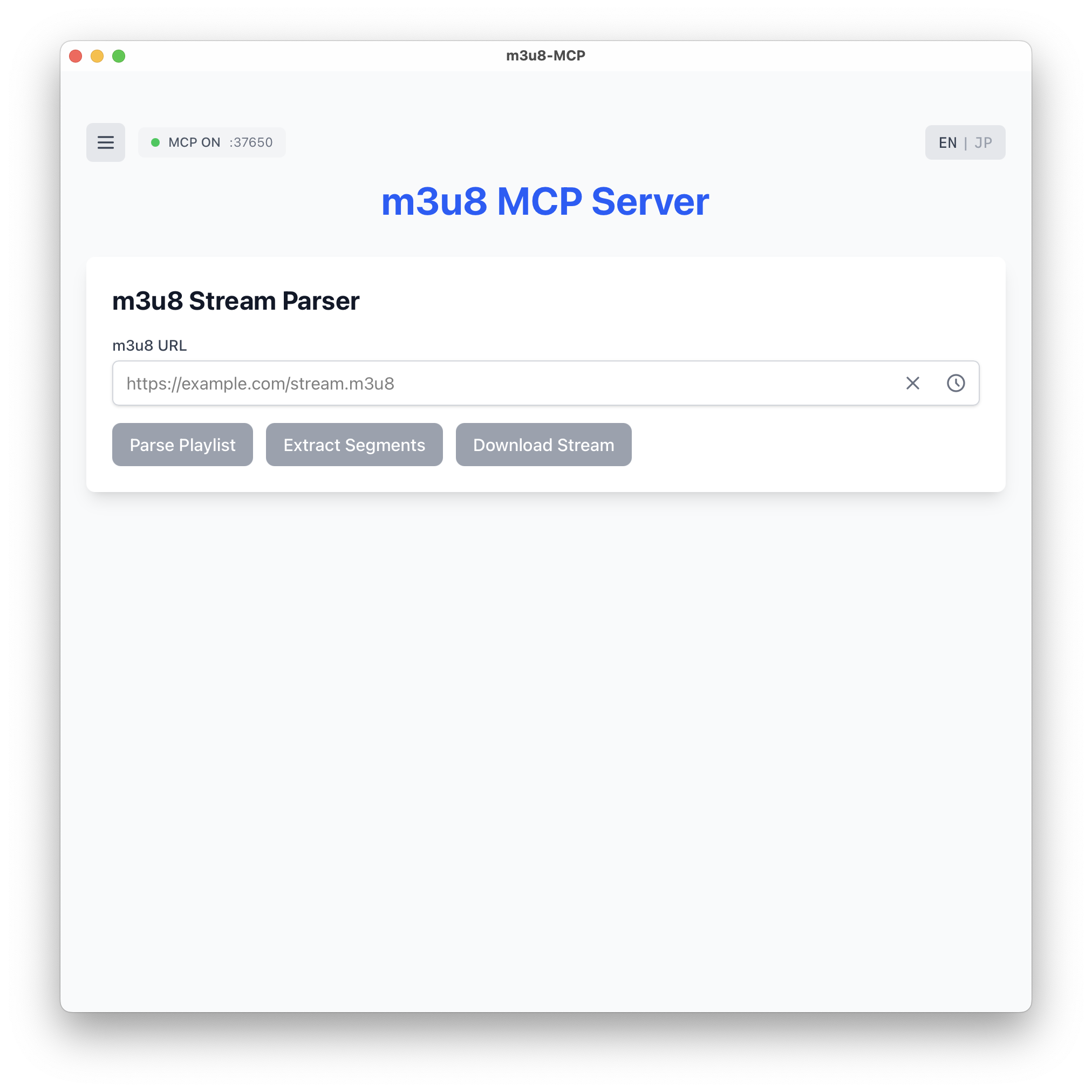

User Interface Features

• Language Toggle: Switch between English and Japanese (EN/JP button)

• URL Management: Clear button and history dropdown for quick access

• Three Main Operations:

  • Parse Playlist: Analyze m3u8 structure and variants

  • Extract Segments: Get all segment URLs with copy functionality

  • Download Stream: Save stream with folder selection dialog

• Collapsible Results: Each result section has an X button for dismissal

• Pagination: "Show More" and "Show Less" buttons for segment lists

Running as MCP Server

The application runs as an MCP Streamable HTTP server using Axum:

cargo run --release --manifest-path src-tauri/Cargo.toml

Connect with Claude Code

claude mcp add --transport http m3u8 http://localhost:37650/mcp

Connect with Claude Desktop

Add to your Claude Desktop configuration:

{
  "m3u8": {
    "command": "npx",
    "args": [
      "-y",
      "mcp-remote",
      "http://localhost:37650/mcp"
    ]
  }
}

🔧 Available MCP Tools

URL Management

m3u8_set_url

Set the current m3u8 URL in the UI.

Parameters:

• url (string, required): URL to set in the UI

m3u8_get_url

Get the current m3u8 URL from the UI.

Parsing Tools

m3u8_parse

Parse an m3u8 playlist and extract information.

Parameters:

• url (string): URL of the m3u8 playlist

• content (string): Raw m3u8 content (if URL not provided)

m3u8_extract_segments

Extract all segment URLs from a playlist.

Parameters:

• url (string): URL of the m3u8 playlist

• base_url (string): Base URL for relative segment URLs

Download Tools

m3u8_download

Download a complete stream using FFmpeg.

Parameters:

• url (string, required): URL of the m3u8 stream

• output_path (string, required): Output file path

• format (string): Output format (mp4, mkv, ts, default: mp4)

Conversion Tools

m3u8_convert

Convert a video file to HLS format.

Parameters:

• input_path (string, required): Path to input video

• output_dir (string, required): Output directory for HLS files

• segment_duration (number): Duration of each segment in seconds (default: 10)

• playlist_type (string): Playlist type (vod or event, default: vod)

Probe Tools

m3u8_probe

Probe m3u8 stream for information using FFmpeg.

Parameters:

• url (string, required): URL of the m3u8 stream

Cache Management

m3u8_cache_list

List cached playlists and downloads.

Parameters:

• query (string): Optional search query

• limit (number): Maximum results (default: 100)

m3u8_cache_clear

Clear all cached data.

🏗️ Tech Stack

Frontend

• React 19 - UI framework

• TypeScript - Type safety

• Tailwind CSS v4 - Styling

• Vite - Build tool

• @tauri-apps/api - Tauri integration

• video.js - Stream preview

Backend

• Rust - Core backend language

• Tauri v2 - Desktop application framework

• Axum - Web framework for MCP Streamable HTTP server

• Reqwest - HTTP client for downloading

• Rusqlite - SQLite database for caching

• Tokio - Async runtime

• Tower-http - CORS and middleware support

External Dependencies

• FFmpeg - Media processing and conversion

• m3u8-parser - Playlist parsing library

Protocol

• MCP Streamable HTTP - HTTP/SSE transport with Axum

• JSON-RPC 2.0 - Message format

• Server-Sent Events (SSE) - Real-time server-to-client streaming

• HLS (HTTP Live Streaming) - Adaptive bitrate streaming protocol

📁 Project Structure

m3u8-mcp/
├── src/                      # React frontend
│   ├── App.tsx              # Main UI with menu system
│   ├── components/
│   │   └── M3u8Form.tsx     # m3u8 operations and display
│   └── i18n.ts              # Internationalization (EN/JP)
│   ├── components/
│   │   └── StreamViewer.tsx # Stream preview component
│   ├── i18n.ts              # Language translations (EN/JP)
│   └── main.tsx             # Application entry point
├── src-tauri/               # Rust backend
│   ├── src/
│   │   ├── lib.rs           # Tauri commands & server lifecycle
│   │   ├── mcp_server.rs    # MCP Streamable HTTP server (Axum)
│   │   ├── m3u8_client.rs   # m3u8 parsing and operations
│   │   ├── ffmpeg_wrapper.rs # FFmpeg integration
│   │   └── database.rs      # SQLite cache management
│   ├── Cargo.toml           # Rust dependencies
│   └── tauri.conf.json      # Tauri configuration
├── package.json             # Node.js dependencies
├── vite.config.ts           # Vite configuration
└── README.md               # This file

🔨 Build

Build the application for production:

npm run tauri build

The built application will be available in:

• macOS: src-tauri/target/release/bundle/dmg/

• Windows: src-tauri/target/release/bundle/msi/

• Linux: src-tauri/target/release/bundle/appimage/

🧪 Testing

Test the MCP server with example m3u8 streams:

# Parse a playlist
curl -X POST http://localhost:37650/mcp \
  -H "Content-Type: application/json" \
  -d '{"method": "m3u8_parse_playlist", "params": {"url": "https://example.com/stream.m3u8"}}'

# Download a stream
curl -X POST http://localhost:37650/mcp \
  -H "Content-Type: application/json" \
  -d '{"method": "m3u8_download", "params": {"url": "https://example.com/stream.m3u8", "output_path": "output.mp4"}}'

🦀 Why Rust?

This project leverages Rust for the same reasons as the original Redmine MCP:

Performance

• Native Speed - Compiled to machine code for maximum performance

• Zero-Cost Abstractions - High-level code without runtime overhead

• Efficient Memory Usage - Critical for handling large video streams

Reliability

• Memory Safety - Prevents segfaults and memory leaks at compile time

• Thread Safety - Concurrent segment downloads without data races

• Error Handling - Robust Result types for network and file operations

Integration

• Axum - Modern async web framework for HTTP/SSE

• Tokio - Powerful async runtime for concurrent operations

• FFmpeg - Seamless integration with system FFmpeg

🚧 Roadmap

• MCP Streamable HTTP server with Axum

• Basic m3u8 parsing

• FFmpeg integration for downloads

• Multi-bitrate stream support

• Live stream recording

• Stream preview in UI

• Segment-level operations

• Advanced playlist generation

• Scheduled recordings

• Stream quality analysis

• DRM content handling (where legal)

• Cloud storage integration

• Batch processing

• Stream monitoring dashboard

🤝 Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

1. Fork the repository

2. Create your feature branch (git checkout -b feature/AmazingFeature)

3. Commit your changes (git commit -m 'Add some AmazingFeature')

4. Push to the branch (git push origin feature/AmazingFeature)

5. Open a Pull Request

📝 License

This project is licensed under the MIT License - see the LICENSE file for details.

🙏 Acknowledgments

• Tauri - For the amazing desktop framework

• MCP Specification - For the protocol documentation

• FFmpeg - For powerful media processing capabilities

• Axum - For the excellent web framework

• Original Redmine MCP project for the modular architecture

📞 Support

For issues and questions:

• Open an issue on GitHub

• Check the related Qiita article for m3u8/FFmpeg details

Note: Ensure FFmpeg is installed and accessible on your system before using this application. Be mindful of copyright and legal considerations when downloading streaming content.
