Fred St Louis MCP

Author: Nicolo Ceneda
Contact: n.ceneda20@imperial.ac.uk
Website: nicoloceneda.github.io
Institution: Imperial College London
Course: PhD in Finance

Description

This repository provides an MCP server that lets MCP-compatible clients query and explore economic data from FRED. It exposes structured tools for common workflows (searching series, retrieving observations, browsing categories/releases/tags) and also supports raw endpoint passthrough for advanced use cases.

Supported APIs:

• FRED API v1 (/fred/*)

• GeoFRED maps API (/geofred/*)

• FRED API v2 (/fred/v2/*)

Requirements

• Python >=3.11

• A FRED API key from FRED API Keys

Installation Step 1: Cloning and API Key

First, cd into the directory where you want the mcp-fred repository to be created. Then execute the following commands from the terminal.

git clone https://github.com/nicoloceneda/mcp-fred.git
cd mcp-fred
python3 -m venv .venv
.venv/bin/pip install -e .

Create a local .env:

cp .env.example .env

Then set:

FRED_API_KEY=your_fred_api_key_here

Installation Step 2: Configure MCP clients

Path A: Codex CLI

Run once (note: you need to replace /absolute/path/to/ with your actual path):

codex mcp add fred -- /absolute/path/to/mcp-fred/.venv/bin/python /absolute/path/to/mcp-fred/fred_server.py

Check:

codex mcp list
codex mcp get fred

Successful setup should show:

• In codex mcp list: fred with Status = enabled

• In codex mcp get fred: enabled: true

Launch Codex (codex) and verify that the MCP has successfully been installed (/mcp).

Path B: Claude Code CLI

Run once (note: you need to replace /absolute/path/to/ with your actual path):

claude mcp add --transport stdio fred -- /absolute/path/to/mcp-fred/.venv/bin/python /absolute/path/to/mcp-fred/fred_server.py

Check:

claude mcp list
claude mcp get fred

Launch Claude Code (claude) and verify that the MCP has successfully been installed (/mcp).

Optional: Generic mcpServers JSON config

{
  "mcpServers": {
    "fred": {
      "command": "/absolute/path/to/mcp-fred/.venv/bin/python",
      "args": ["/absolute/path/to/mcp-fred/fred_server.py"],
      "env": {
        "FRED_API_KEY": "your_fred_api_key_here"
      }
    }
  }
}

Optional quick smoke test

Run this script to verify that the MCP server starts, the stdio MCP connection initializes correctly, and a real tool call (search_series) succeeds.

cd mcp-fred
.venv/bin/python - <<'PY'
import asyncio
from mcp import ClientSession, StdioServerParameters
from mcp.client.stdio import stdio_client

async def main():
    params = StdioServerParameters(
        command=".venv/bin/python",
        args=["fred_server.py"],
    )
    async with stdio_client(params) as (r, w):
        async with ClientSession(r, w) as s:
            await s.initialize()
            tools = await s.list_tools()
            print("tool_count =", len(tools.tools))
            out = await s.call_tool("search_series", {"query": "unemployment rate", "limit": 1})
            print(out.content[0].text)

asyncio.run(main())
PY

Examples

$ codex
OpenAI Codex (v0.101.0)
model: gpt-5.3-codex xhigh
directory: ~

> Use the FRED MCP to retrieve the last 13 values of GS10 and create a matplotlib line chart saved to /Users/nicoloceneda/Desktop/gs10.png.

I’ll fetch the latest 13 GS10 observations via FRED MCP, then generate and save a matplotlib line chart at /Users/nicoloceneda/Desktop/gs10.png.

Called fred.get_observations({"series_id":"GS10","sort_order":"desc","limit":13})

Retrieved the last 13 GS10 observations from FRED and created the matplotlib line chart.

Saved file: /Users/nicoloceneda/Desktop/gs10.png

Values used (most recent first):

• 2026-01-01: 4.21

• 2025-12-01: 4.14

• 2025-11-01: 4.09

• 2025-10-01: 4.06

• 2025-09-01: 4.12

• 2025-08-01: 4.26

• 2025-07-01: 4.39

• 2025-06-01: 4.38

• 2025-05-01: 4.42

• 2025-04-01: 4.28

• 2025-03-01: 4.28

• 2025-02-01: 4.45

• 2025-01-01: 4.63

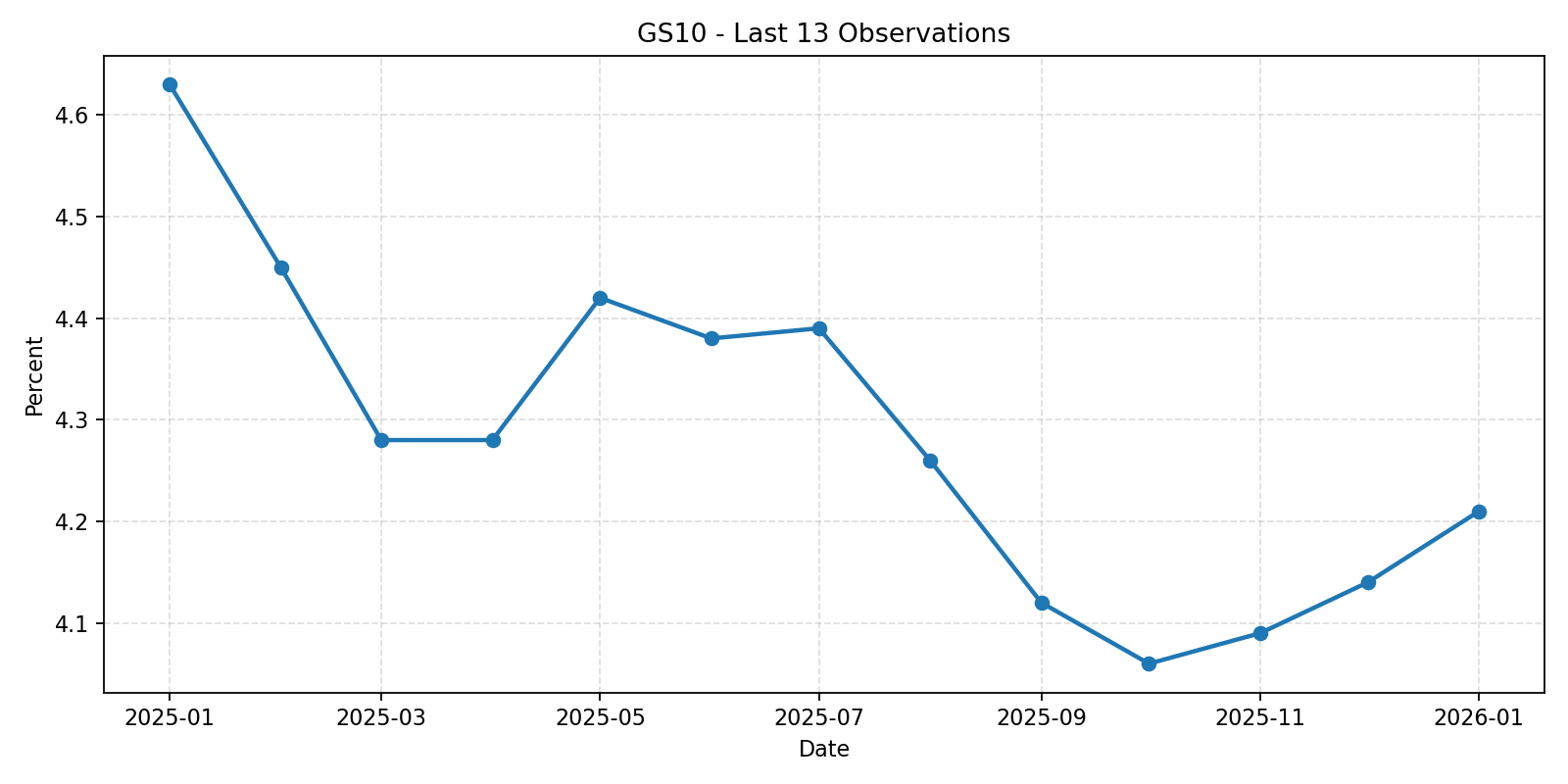

Graph generated by MCP:

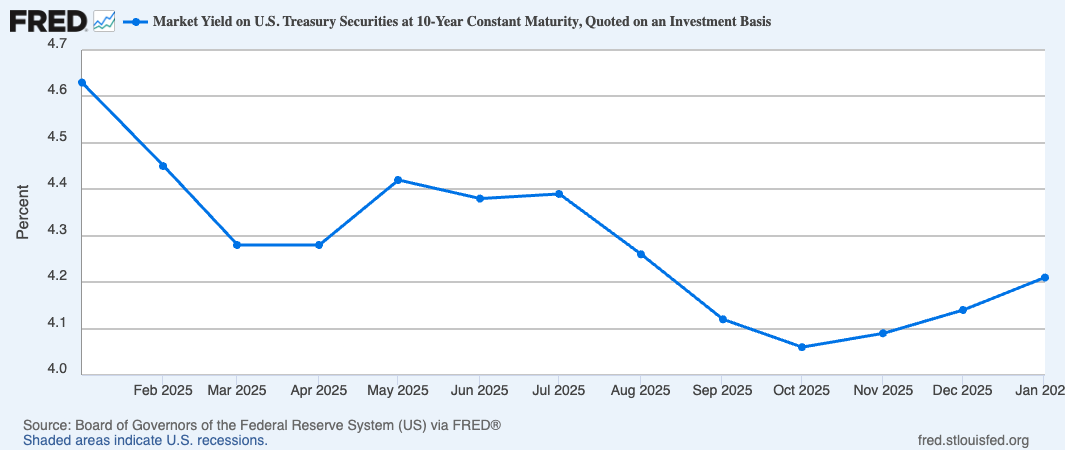

Original graph by FRED:

$ codex
OpenAI Codex (v0.101.0)
model: gpt-5.3-codex xhigh
directory: ~

> Tell me the latest value of US GDP (nominal).

I’ll pull the most recent GDP observation from FRED now and report its date and value.

Called fred.get_observations({"series_id":"GDP","limit":1,"sort_order":"desc"})

Latest FRED nominal U.S. GDP (GDP) is 31,098.027 (billions of dollars, SAAR), for 2025-07-01 (i.e., 2025 Q3).

Functionality and endpoint coverage

The server includes both dedicated tools and generic passthrough tools.

• fred_request(endpoint, params_json) for /fred/*

• geofred_request(endpoint, params_json) for /geofred/*

• fred_v2_request(endpoint, params_json) for /fred/v2/*

• get_category -> fred/category

• get_category_children -> fred/category/children

• get_category_related -> fred/category/related

• get_category_series -> fred/category/series

• get_category_tags -> fred/category/tags

• get_category_related_tags -> fred/category/related_tags

• get_releases -> fred/releases

• get_releases_dates -> fred/releases/dates

• get_release -> fred/release

• get_release_dates -> fred/release/dates

• get_release_series -> fred/release/series

• get_release_sources -> fred/release/sources

• get_release_tags -> fred/release/tags

• get_release_related_tags -> fred/release/related_tags

• get_release_tables -> fred/release/tables

• get_series -> fred/series

• get_series_categories -> fred/series/categories

• get_observations -> fred/series/observations

• get_series_observations -> alias of get_observations

• get_series_release -> fred/series/release

• search_series -> fred/series/search

• search_series_by_tags -> fred/series/search/tags

• search_series_related_tags -> fred/series/search/related_tags

• get_series_tags -> fred/series/tags

• get_series_updates -> fred/series/updates

• get_series_vintage_dates -> fred/series/vintagedates

• get_sources -> fred/sources

• get_source -> fred/source

• get_source_releases -> fred/source/releases

• get_tags -> fred/tags

• get_related_tags -> fred/related_tags

• get_tag_series -> fred/tags/series

• get_map_shape_file -> geofred/shapes/file

• get_map_series_group -> geofred/series/group

• get_map_series_data -> geofred/series/data

• get_map_regional_data -> geofred/regional/data

• get_release_observations_v2 -> fred/v2/release/observations
