UI Annotator MCP

English | 廣東話

Bridge the gap between what you see and what AI can reference — in any browser, zero extensions.

The only tool that puts visible labels on every web element. Hover any element, see its name. Tell your AI assistant "make the sidebar wider" — it knows exactly which element you mean. No screenshots, no CSS selectors, no miscommunication.

Why It Matters

Dramatically improves AI-driven UI design and iteration. The pain: telling AI "move that button next to the search bar" never works because the AI can't see your page. UI Annotator fixes this — hover over any element and its component name appears as a label. Now you say "move SearchButton below NavBar" and Claude edits the right component instantly. No browser extensions, works with any framework. The workflow becomes: open page → hover to identify elements → describe changes using real component names → Claude edits → refresh and repeat. Turns a frustrating back-and-forth into a fluid design loop.

The Problem

When reviewing a web UI with an AI coding assistant, the hardest part isn't the code change — it's describing which element you want changed.

"That thing on the left... the second row... no, the one with the icon..."

You don't know what it's called. The AI doesn't know what you're pointing at. You waste time on miscommunication instead of shipping.

The Solution

Open your page through the annotator proxy. Hover any element — instantly see its name, CSS selector, and dimensions. Now you both speak the same language.

# Start the MCP server
npx @mcpware/ui-annotator

# Open in ANY browser
http://localhost:7077/localhost:3847

That's it. No browser extensions. No code changes. No setup. Works in Chrome, Firefox, Safari, Edge — any browser.

How It Works

Your app (localhost:3847)
        │
        ▼
┌─────────────────────┐
│  UI Annotator Proxy  │ ← Reverse proxy on port 7077
│  (MCP Server)        │
└─────────────────────┘
        │
        ▼
Proxied page with hover annotations injected
        │
        ├──► User sees: hover overlay + tooltip with element names
        └──► AI sees: structured element data via MCP tools

The proxy fetches your page, injects a lightweight annotation script, and serves it back. The script scans the DOM, identifies named elements, and reports them to the MCP server. Your AI assistant queries the server to understand what's on the page.

Features

Hover Annotations

Hover any element to see:

• Element name (pink) — the human-readable identifier

• CSS selector (monospace) — the technical reference

• Content preview — what text the element contains

• Dimensions — width × height in pixels

Inspect Mode

Click the Inspect button in the toolbar (or let your AI toggle it). In inspect mode:

• Click any element → copies its name to clipboard

• All page interactions are paused (clicks don't trigger buttons/links)

• Click Inspect again to return to normal mode

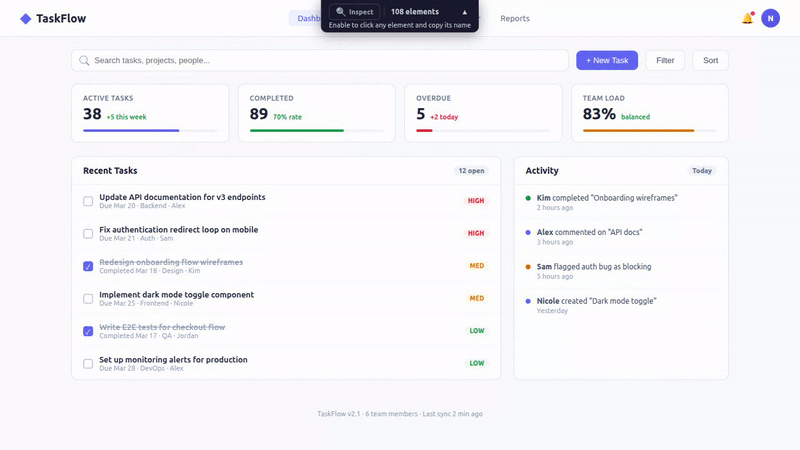

Collapsible Toolbar

The toolbar sits at the top center of the page showing:

• Inspect toggle button

• Element count

• Helpful subtitle explaining what to do

• Collapse button (▲) to minimize when not needed

MCP Tools for AI

Why Not Just Use DevTools?

DevTools is for debugging. UI Annotator is for communication — giving humans and AI a shared vocabulary for UI elements.

Why Not Use Existing Tools?

None of these do what UI Annotator does — live visual labels on every element via reverse proxy:

Feature Comparison

Architecture

Zero external dependencies

• Reverse proxy: Node.js built-in http module

• MCP server: @modelcontextprotocol/sdk (stdio transport)

• Communication: HTTP POST (browser → server) + GET polling (server → browser)

• No WebSocket, no Express, no browser extension

How the proxy works

1. User requests localhost:7077/localhost:3847

2. Proxy fetches http://localhost:3847

3. For HTML responses:

   • Injects fetch() / XMLHttpRequest interceptor (rewrites API paths through proxy)

   • Rewrites href="/..." and src="/..." attributes to route through proxy

   • Injects annotation script before </body>

4. For non-HTML (CSS, JS, images): passes through directly

5. Strips Content-Security-Policy headers to allow injected script

How annotation works

1. Script scans DOM for elements with id, class, semantic roles, or interactive roles

2. On hover: positions overlay border (follows border-radius) + positions tooltip (always within viewport)

3. Reports all detected elements to server via POST /__annotator/elements

4. Polls GET /__annotator/commands every second for server instructions (highlight, rescan, inspect toggle)

5. MutationObserver auto-rescans when DOM changes

Quick Start

With Claude Code

# Add as MCP server
claude mcp add ui-annotator -- npx @mcpware/ui-annotator

# Then in conversation:
# "Annotate my app at localhost:3847"
# → AI returns proxy URL, you open it, hover elements, discuss changes by name

Manual

npx @mcpware/ui-annotator
# Proxy starts on http://localhost:7077
# Open http://localhost:7077/localhost:YOUR_PORT

Environment Variables
