OpenROAD MCP Server

A Model Context Protocol (MCP) server that provides tools for interacting with OpenROAD and ORFS (OpenROAD Flow Scripts).

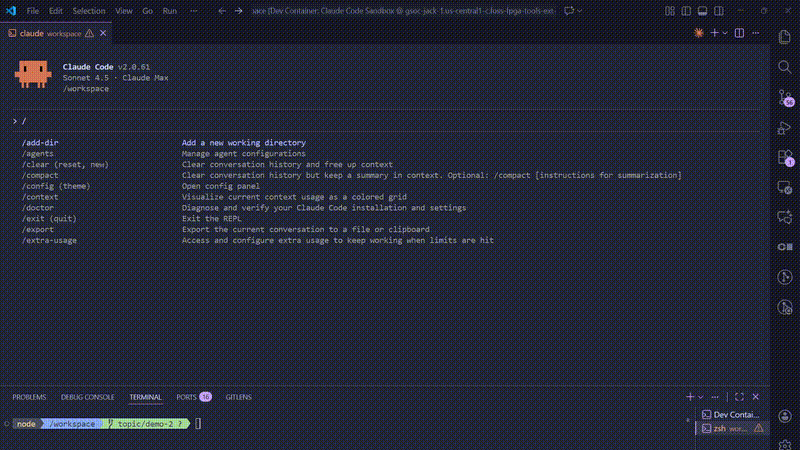

Demo

Watch full demo video

Features

• Interactive OpenROAD sessions - Execute commands in persistent OpenROAD sessions with PTY support

• Session management - Create, list, inspect, and terminate multiple sessions

• Command history - Access full command history for any session

• Performance metrics - Get comprehensive metrics across all sessions

• Report visualization - List and read report images from ORFS runs

Requirements

• OpenROAD installed and available in your PATH

  • Installation guide

• OpenROAD-flow-scripts (ORFS) for complete RTL-to-GDS flows (optional but recommended)

  • ORFS installation guide

• Python 3.13+ or higher

• uv package manager

  • Install: curl -LsSf https://astral.sh/uv/install.sh | sh

Support Matrix

Getting Started

New to OpenROAD MCP? Check out our Quick Start guide.

For platform-specific setup instructions, see the Cross-Platform Guide.

Standard Configuration

The basic configuration for all MCP clients:

{
  "mcpServers": {
    "openroad-mcp": {
      "command": "uvx",
      "args": [
        "--from",
        "git+https://github.com/luarss/openroad-mcp",
        "openroad-mcp"
      ]
    }
  }
}

For local development, use:

{
  "mcpServers": {
    "openroad-mcp": {
      "command": "uv",
      "args": [
        "--directory",
        "/path/to/openroad-mcp",
        "run",
        "openroad-mcp"
      ]
    }
  }
}

Installation

claude mcp add --transport stdio openroad-mcp -- uvx --from git+https://github.com/luarss/openroad-mcp openroad-mcp

Or add the standard configuration to .claude/settings.json.

Add the standard configuration to:

• macOS: ~/Library/Application Support/Claude/claude_desktop_config.json

• Windows: %APPDATA%\Claude\claude_desktop_config.json

Add the standard configuration to .cursor/mcp.json.

Add to .vscode/mcp.json (VS Code 1.99+). Note the different schema — servers key and "type": "stdio" required:

{
  "servers": {
    "openroad-mcp": {
      "type": "stdio",
      "command": "uvx",
      "args": [
        "--from",
        "git+https://github.com/luarss/openroad-mcp",
        "openroad-mcp"
      ]
    }
  }
}

Follow the Gemini MCP install guide, using the standard configuration above.

Add the standard configuration to ~/.codeium/windsurf/mcp_config.json.

Add to the Cline MCP settings file:

• macOS: ~/Library/Application Support/Code/User/globalStorage/saoudrizwan.claude-dev/settings/cline_mcp_settings.json

• Windows: %APPDATA%\Code\User\globalStorage\saoudrizwan.claude-dev\settings\cline_mcp_settings.json

• Linux: ~/.config/Code/User/globalStorage/saoudrizwan.claude-dev/settings/cline_mcp_settings.json

{
  "mcpServers": {
    "openroad-mcp": {
      "command": "uvx",
      "args": [
        "--from",
        "git+https://github.com/luarss/openroad-mcp",
        "openroad-mcp"
      ],
      "disabled": false,
      "autoApprove": []
    }
  }
}

Add to .roo/mcp.json in your project root (or the equivalent user-level settings file via the Roo Code UI):

{
  "mcpServers": {
    "openroad-mcp": {
      "command": "uvx",
      "args": [
        "--from",
        "git+https://github.com/luarss/openroad-mcp",
        "openroad-mcp"
      ],
      "disabled": false,
      "autoApprove": []
    }
  }
}

Add to ~/.continue/config.json:

{
  "experimental": {
    "modelContextProtocolServers": [
      {
        "transport": {
          "type": "stdio",
          "command": "uvx",
          "args": [
            "--from",
            "git+https://github.com/luarss/openroad-mcp",
            "openroad-mcp"
          ]
        }
      }
    ]
  }
}

Add to ~/.config/zed/settings.json:

{
  "context_servers": {
    "openroad-mcp": {
      "command": {
        "path": "uvx",
        "args": [
          "--from",
          "git+https://github.com/luarss/openroad-mcp",
          "openroad-mcp"
        ]
      },
      "settings": {}
    }
  }
}

Open Settings → Tools → AI Assistant → Model Context Protocol (MCP) and add a new server entry using the standard configuration.

Add the standard configuration to ~/.aws/amazonq/mcp.json.

Add to your VS Code settings.json (User or Workspace scope):

{
  "augment.advanced": {
    "mcpServers": [
      {
        "name": "openroad-mcp",
        "command": "uvx",
        "args": [
          "--from",
          "git+https://github.com/luarss/openroad-mcp",
          "openroad-mcp"
        ]
      }
    ]
  }
}

Open Settings → AI → MCP Servers → Add New MCP Server and enter:

• Name: openroad-mcp

• Command: uvx

• Args: --from git+https://github.com/luarss/openroad-mcp openroad-mcp

amp mcp add openroad-mcp uvx --from git+https://github.com/luarss/openroad-mcp openroad-mcp

Add the standard configuration to the MCP section of Trae's user settings (accessible via Settings → MCP).

Add to opencode.json in your project root:

{
  "mcp": {
    "openroad-mcp": {
      "type": "local",
      "command": [
        "uvx",
        "--from",
        "git+https://github.com/luarss/openroad-mcp",
        "openroad-mcp"
      ],
      "enabled": true
    }
  }
}

Open the MCP configuration panel in Kiro and add a new server entry using the standard configuration.

Add to .kilocode/mcp.json in your project root:

{
  "mcpServers": {
    "openroad-mcp": {
      "command": "uvx",
      "args": [
        "--from",
        "git+https://github.com/luarss/openroad-mcp",
        "openroad-mcp"
      ],
      "alwaysAllow": [],
      "disabled": false
    }
  }
}

🚧 Work in Progress: Docker deployment via GitHub Container Registry (GHCR) is coming soon.

Once published to the MCP Registry, clients can discover and install directly:

uvx openroad-mcp

Verification

After configuration, restart your MCP client and verify the MCP server is running:

1. The server should automatically start when your MCP client launches

2. You can use OpenROAD tools through the MCP interface

3. Check logs for any startup errors if tools are not available

Available Tools

Once configured, the following tools are available:

• interactive_openroad - Execute commands in an interactive OpenROAD session

• create_interactive_session - Create a new OpenROAD session

• list_interactive_sessions - List all active sessions

• terminate_interactive_session - Terminate a session

• inspect_interactive_session - Get detailed session information

• get_session_history - View command history

• get_session_metrics - Get performance metrics

• list_report_images - List ORFS report directory images

• read_report_image - Read a ORFS report image

Troubleshooting

If the MCP server fails to start:

1. Ensure uv is installed and available in your PATH

2. Verify the path to openroad-mcp is correct

3. Check that all dependencies are installed: make sync

4. Review your MCP client logs for specific error messages

Development

Setup

# Install environment
uv venv
make sync

Testing

# Run core tests (recommended - excludes PTY tests that may fail in some environments)
make test

# Run interactive PTY tests separately (may have file descriptor issues in CI)
make test-interactive

# Run all tests including potentially problematic PTY tests
make test-all

# Format and check code
make format
make check

Note: Interactive PTY tests are separated because they may experience file descriptor issues in certain environments (containers, CI systems). The core functionality tests (make test) provide comprehensive coverage of the MCP integration without these environment-specific issues.

MCP Inspector

# Launch MCP inspector for debugging
# For STDIO transport: Set Command as "uv", Arguments as "run openroad-mcp"
make inspect

Contributing

We welcome contributions to OpenROAD MCP! Please see CONTRIBUTING.md for detailed instructions on how to get started, our development workflow, and code standards.

Support

If you encounter any issues or have questions, please open an issue on our GitHub issue tracker.

License

BSD 3-Clause License. See LICENSE file.
