Z-Image Studio

A Cli, a webUI, and a MCP server for the Z-Image-Turbo text-to-image generation model (Tongyi-MAI/Z-Image-Turbo and its variants).

This tool is designed to run efficiently on local machines for Windows/Mac/Linux users. It features specific optimizations for NVIDIA (CUDA), AMD on Linux (ROCm), Intel (XPU), and Apple Silicon (MPS), falling back to CPU if no compatible GPU is detected.

Features

Hybrid Interfaces:

• CLI: Fast, direct image generation from the terminal.

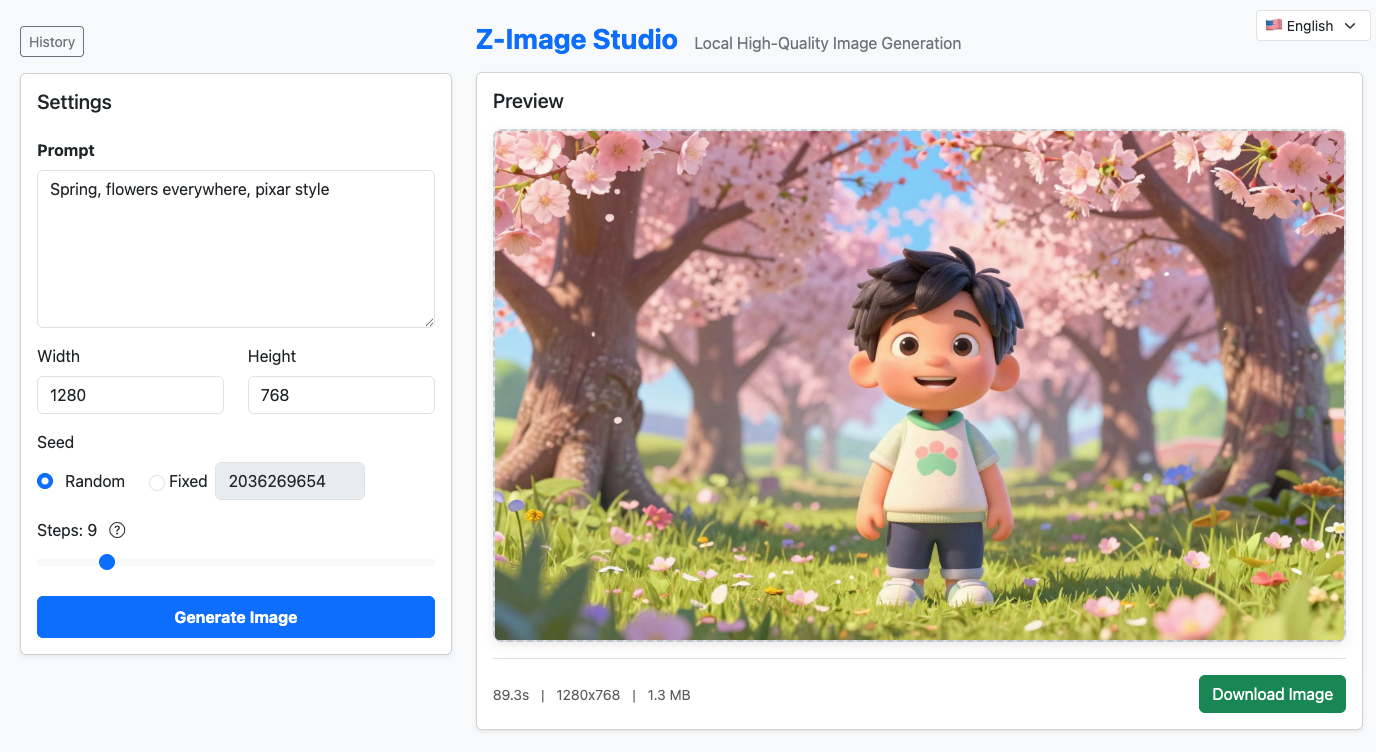

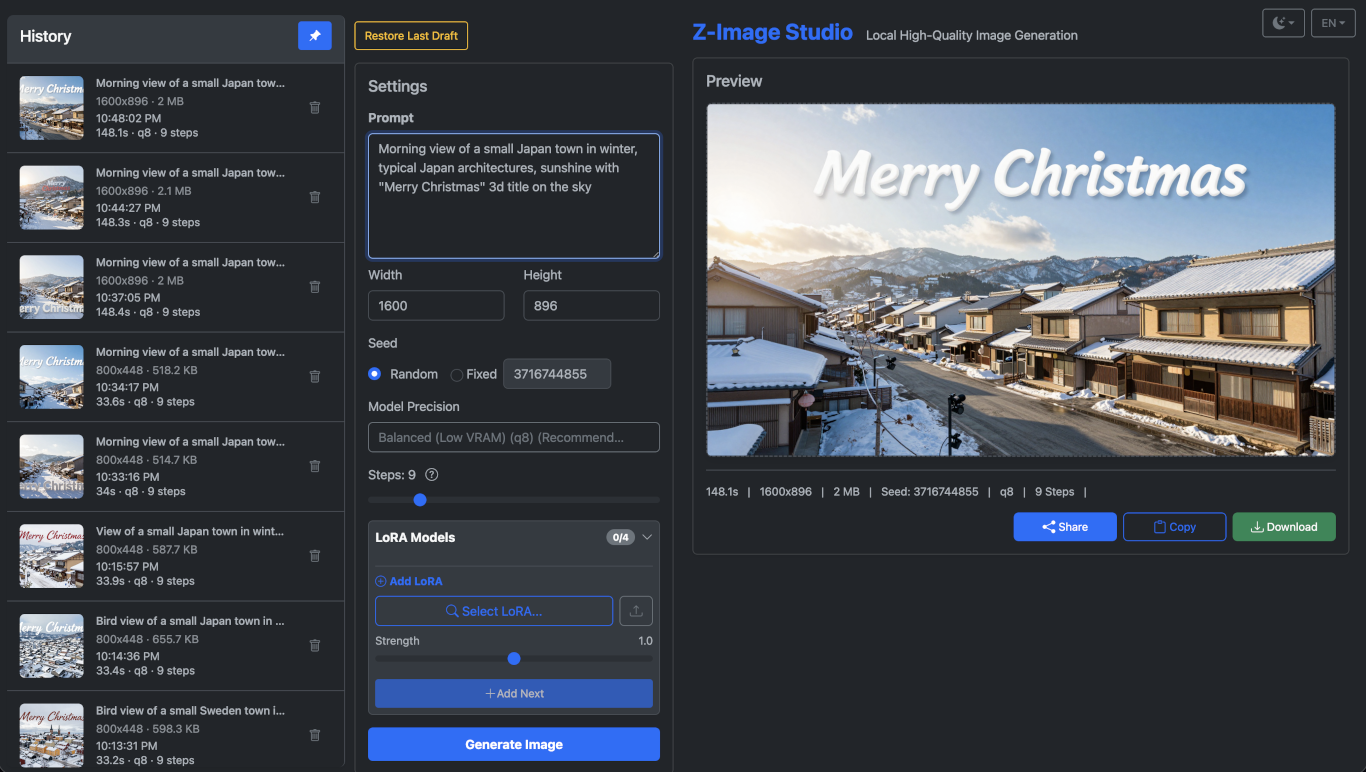

• Web UI: Modern web interface for interactive generation.

• MCP Server: Capability to be called by AI agents.

CLI and core features

• Z-Image-Turbo Model: Utilizes the high-quality Tongyi-MAI/Z-Image-Turbo model and quatized variants via diffusers.

• MPS Acceleration: Optimized for Mac users with Apple Silicon.

• ROCm Support: Explicitly supported on Linux for AMD GPUs.

• Intel XPU Support: Supports Intel XPU when running an Intel-enabled PyTorch build.

• Attention Slicing Auto-detection: Automatically manages memory usage (e.g., enables attention slicing for systems with lower RAM/VRAM) to prevent Out-of-Memory errors and optimize performance.

• Seed Control: Reproducible image generation via CLI or Web UI.

• Multiple LoRA Support: Upload/manage LoRAs in the web UI, apply up to 4 with per-LoRA strengths in a single generation; CLI supports multiple --lora entries with optional strengths.

• Automatic Dimension Adjustment: Ensures image dimensions are compatible (multiples of 16).

• Customizable Output Directory: Image output directory can be customized via config file and environment variable.

Web UI features

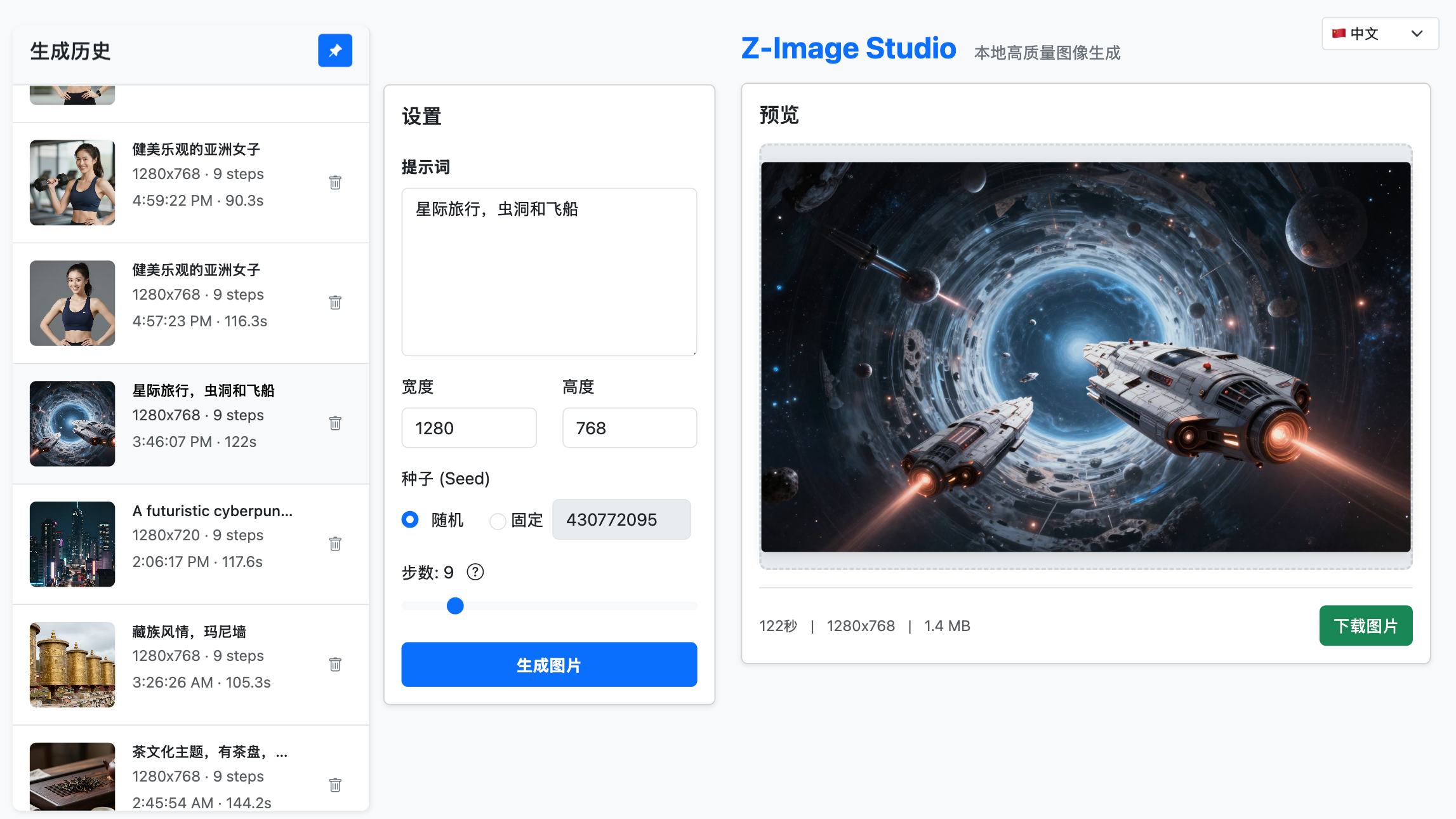

• Multilanguage Support: English, Japanese, Chinese Simplified (zh-CN), and Chinese Traditional (zh-TW) are supported.

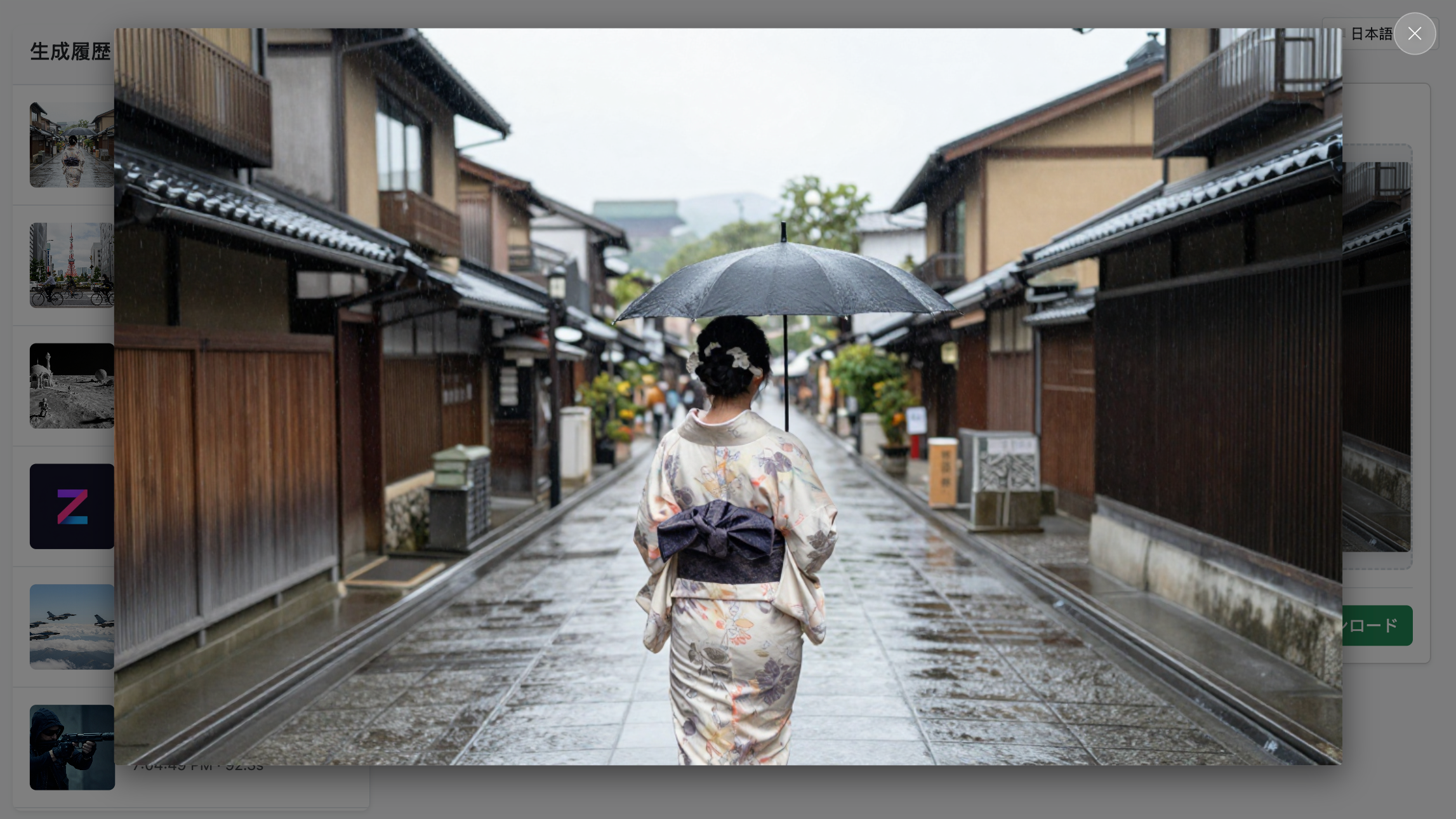

• History Browser: Efficiently search and browse your past generations with a paginated history that loads more items as you scroll.

• Hardware-aware Model Recommendation: The Web UI dynamically presents model precision options based on your system's detected RAM/VRAM, recommending the optimal choice for your hardware. You can also inspect available models and recommendations via the CLI.

• Image Sharing: The generated image can be downloaded to browser download directory, conveniently shared via OS share protocol, and copied into clipboard.

• Theme Switch: Light, dark and auto themes.

• Mobile compatible: Responsive layout for mobile devices.

MCP features

• MCP Server (stdio + SSE + Streamable HTTP): Expose tools for image generation, listing models, and viewing history over Model Context Protocol; stdio entrypoints (zimg mcp, zimg-mcp) for local agents, SSE available at /mcp-sse, and MCP 2025-03-26 Streamable HTTP transport at /mcp.

• Transport-Agnostic Content: All transports (stdio, SSE, Streamable HTTP) return identical structured content for consistent agent integration.

• Client Transport Selection: Clients should try Streamable HTTP (/mcp) first for optimal performance, falling back to SSE (/mcp-sse) if needed.

Related MCP server: Z-Image Studio MCP Server

Requirements

• Python >= 3.11

• uv (recommended for dependency management)

Python 3.12+ Note: torch.compile is disabled by default for Python 3.12+ due to known compatibility issues with the Z-Image model architecture. If you want to experiment with torch.compile on Python 3.12+, set ZIMAGE_ENABLE_TORCH_COMPILE=1 via environment variable or in ~/.z-image-studio/config.json (experimental, may cause errors).

GPU acceleration notes

• NVIDIA (CUDA): Works with standard PyTorch CUDA builds.

• AMD on Linux (ROCm): Explicitly supported on Linux.

  Note: AMD GPU support currently requires ROCm, which is only available for Linux PyTorch builds. Windows users with AMD GPUs will currently fall back to CPU.

  • Installation: Install AMD ROCm drivers/runtime for your distribution. Then install PyTorch with ROCm support (e.g., via pip install torch --index-url https://download.pytorch.org/whl/rocm6.1 or similar). Ensure the PyTorch ROCm version matches your installed driver version.

  • Verification: The app will automatically detect your device as "rocm". You can confirm this by running zimg models.

  • Troubleshooting:

    • If the app falls back to CPU, ensure torch.version.hip is detected.

    • HSA Override: For some consumer GPUs (e.g., RX 6000/7000 series) not officially supported by all ROCm versions, you may need to set HSA_OVERRIDE_GFX_VERSION (e.g., 10.3.0 for RDNA2, 11.0.0 for RDNA3).

    • Performance: torch.compile is disabled by default on ROCm due to experimental support. You can force-enable it with ZIMAGE_ENABLE_TORCH_COMPILE=1 if your setup (Triton/ROCm version) supports it.

• Intel (XPU): Supported when PyTorch is built with Intel XPU backend.

  • Verification: The app will detect your device as "xpu" in zimg models.

  • Compatibility: CUDA-specific components/features are not guaranteed on XPU.

• Apple Silicon (MPS): Uses PyTorch MPS backend on macOS.

Global installation

If you just want the zimg CLI to be available from anywhere, install it as a uv tool:

uv tool install git+https://github.com/iconben/z-image-studio.git
# or, if you have the repo cloned locally:
# git clone https://github.com/iconben/z-image-studio.git
# cd z-image-studio
# uv tool install .

After this, the zimg command is available globally:

zimg --help

To update z-image-studio:

uv tool upgrade z-image-studio
# or, if you have the repo cloned locally, you pull the latest source code:
# git pull

Windows Installation

For Windows users, a pre-built installer is available that bundles everything you need:

1. Download the latest installer from GitHub Releases

2. Run Z-Image-Studio-Windows-x64-x.x.x.exe

3. Follow the installation wizard

4. Launch from the Start Menu:

   • Z-Image Studio (Web UI): Starts the web server and opens your browser

   • Z-Image Studio CLI: Opens a console for command-line usage

Installation Details

• Install Location: C:\Program Files\Z-Image Studio

• User Data: %LOCALAPPDATA%\z-image-studio (contains database, LoRAs, and outputs)

• Uninstall: Use "Add or Remove Programs" or the uninstall shortcut in the Start Menu

System Requirements

• Windows 10 or Windows 11

• NVIDIA GPU with CUDA support (recommended) or compatible AMD GPU

• 8GB+ RAM (16GB+ recommended for full precision models)

Docker Installation

Run Z-Image Studio in a container with Docker:

Quick Start

# Create persistent volume
docker volume create zimg-data

# Run the container
docker run -d \
  --name z-image-studio \
  -p 8000:8000 \
  -v zimg-data:/data \
  -v zimg-config:/home/appuser/.z-image-studio \
  -v zimg-outputs:/data/outputs \
  iconben/z-image-studio:latest

Then open http://localhost:8000 in your browser.

With Docker Compose

Create a docker-compose.yml file:

services:
  z-image-studio:
    image: iconben/z-image-studio:latest
    container_name: z-image-studio
    ports:
      - "8000:8000"
    volumes:
      - zimg-data:/data
      - zimg-config:/home/appuser/.z-image-studio
      - zimg-outputs:/data/outputs
    restart: unless-stopped

volumes:
  zimg-data:
  zimg-config:
  zimg-outputs:

Then run:

docker compose up -d

With GPU Support

NVIDIA GPU:

services:
  z-image-studio:
    image: iconben/z-image-studio:latest
    container_name: z-image-studio
    ports:
      - "8000:8000"
    volumes:
      - zimg-data:/data
      - zimg-config:/home/appuser/.z-image-studio
      - zimg-outputs:/data/outputs
    deploy:
      resources:
        reservations:
          devices:
            - driver: nvidia
              count: all
              capabilities: [gpu]
    restart: unless-stopped

volumes:
  zimg-data:
  zimg-config:
  zimg-outputs:

AMD GPU (Linux):

services:
  z-image-studio:
    image: iconben/z-image-studio:latest
    container_name: z-image-studio
    ports:
      - "8000:8000"
    volumes:
      - zimg-data:/data
      - zimg-config:/home/appuser/.z-image-studio
      - zimg-outputs:/data/outputs
    devices:
      - /dev/dri:/dev/dri
    restart: unless-stopped

volumes:
  zimg-data:
  zimg-config:
  zimg-outputs:

Then run:

docker compose up -d

With Docker Run

Basic:

docker run -d \
  --name z-image-studio \
  -p 8000:8000 \
  -v zimg-data:/data \
  -v zimg-config:/home/appuser/.z-image-studio \
  -v zimg-outputs:/data/outputs \
  iconben/z-image-studio:latest

NVIDIA GPU:

docker run -d \
  --name z-image-studio \
  -p 8000:8000 \
  --gpus all \
  -v zimg-data:/data \
  -v zimg-config:/home/appuser/.z-image-studio \
  -v zimg-outputs:/data/outputs \
  iconben/z-image-studio:latest

AMD GPU (Linux):

docker run -d \
  --name z-image-studio \
  -p 8000:8000 \
  --device /dev/dri:/dev/dri \
  -v zimg-data:/data \
  -v zimg-config:/home/appuser/.z-image-studio \
  -v zimg-outputs:/data/outputs \
  iconben/z-image-studio:latest

Data Persistence

The container uses Docker volumes for persistence:

Note: The data directories (/data and /data/outputs) are set as defaults in the Dockerfile. Override with environment variables only if needed.

Environment Variables

Development Mode

Mount source code for development:

docker run -d \
  --name z-image-studio-dev \
  -p 8000:8000 \
  -v $(pwd)/src:/app/src \
  -v zimg-data:/data \
  -e DEBUG=1 \
  iconben/z-image-studio:latest

Management Commands

# View logs
docker logs -f z-image-studio

# Stop container
docker stop z-image-studio

# Remove container (data preserved)
docker rm z-image-studio

# Remove all data
docker volume rm zimg-data zimg-outputs zimg-config

pip / uv Installation

Install Z-Image Studio via pip or uv:

pip install z-image-studio
# or
uv pip install z-image-studio

After installation, the zimg command is available globally:

zimg --help

From Source

git clone https://github.com/iconben/z-image-studio.git
cd z-image-studio
pip install -e .
# or
uv pip install -e .

Usage

After installation, you can use the zimg command directly from your terminal.

1. CLI Generation (Default Mode)

Generate images directly from the command line using the generate (or gen) subcommand.

# Basic generation
zimg generate "A futuristic city with neon lights"

# Using the alias 'gen'
zimg gen "A cute cat"

# Custom output path
zimg gen "A cute cat" --output "my_cat.png"

# High quality settings
zimg gen "Landscape view" --width 1920 --height 1080 --steps 20

# With a specific seed for reproducibility
zimg gen "A majestic dragon" --seed 12345

# Select model precision (full, q8, q4)
zimg gen "A futuristic city" --precision q8

# Skip writing to history DB
zimg gen "Quick scratch" --no-history

2. Web Server Mode

Launch the web interface to generate images interactively.

# Start server on default port (http://localhost:8000)
zimg serve

# Start on custom host/port
zimg serve --host 0.0.0.0 --port 9090

Once started, open your browser to the displayed URL.

3. MCP Server Mode (Model Context Protocol)

Run Z-Image Studio as an MCP server:

# stdio transport (ideal for local agents/tools); also available as `zimg mcp`
zimg-mcp

# MCP transports are available when you run the web server:
zimg serve          # Both Streamable HTTP (/mcp) and SSE (/mcp-sse) available
zimg serve --disable-mcp   # Disable all MCP endpoints

Available tools: generate (prompt to image), list_models, and list_history. Logs are routed to stderr to keep MCP stdio clean.

Connecting an AI agent (e.g., Claude Desktop) to zimg-mcp

1. Ensure dependencies are installed (uv sync) and that zimg-mcp is on PATH (installed via uv tool install . or run locally via uv run zimg-mcp).

2. In Claude Desktop (or any MCP-aware client), add a local mcp server entry like:

   {
     "mcpServers": {
       "z-image-studio": {
         "command": "zimg-mcp",
         "args": [],
         "env": {}
       }
     }
   }

   Adjust the command to a full path if not on PATH. If the agent cannot find the zimg-mcp command, you can also try setting the path in environment.

   Different agents may have slightly different parameters, for example, cline will timeout fast if you do not explicitly set a timeout parameter. Here is the example for cline:

   {
     "mcpServers": {
       "z-image-studio": {
         "command": "zimg-mcp",
         "type": "stdio",
         "args": [],,
         "env": {},
         "disabled": false,
         "autoApprove": [],
         "timeout": 300
       }
     }
   }

   Detailed syntax may vary, please refer to the specific agent's documentation.

3. For Clients that support remote mcp server, configure the client with the streamable Http mcp endpoint URL (meanwhile keep the server up by running zimg serve). Here is an example for Gemini CLI:

   {
     "mcpServers": {
       "z-image-studio": {
         "httpUrl": "http://localhost:8000/mcp"
       }
     }
   }

   Detailed syntax may vary, please refer to the specific agent's documentation.

4. For legacy SSE , run zimg serve and configure the client with the SSE endpoint URL. Here is an example for Cline CLI:

   {
     "mcpServers": {
       "z-image-studio": {
         "url": "http://localhost:8000/mcp-sse/sse"
       }
     }
   }

   Detailed syntax may vary, please refer to the specific agent's documentation.

5. The agent will receive tools: generate, list_models, list_history.

MCP Content Structure

The generate tool returns a consistent content array with three items in this order:

1. TextContent: Enhanced metadata including generation info, file details, and preview metadata

   {
     "message": "Image generated successfully",
     "duration_seconds": 1.23,
     "width": 1280,
     "height": 720,
     "precision": "q8",
     "model_id": "z-image-turbo-q8",
     "seed": 12345,
     "filename": "image_12345.png",
     "file_path": "/absolute/path/to/image_12345.png",
     "access_note": "Access full image via ResourceLink.uri or this URL",
     "preview": true,
     "preview_size": 400,
     "preview_mime": "image/png"
   }

   • SSE/Streamable HTTP Transports: url and access_note point to the absolute image URL

   • Stdio Transport: file_path and access_note point to the local file path

2. ResourceLink: Main image file reference with context-appropriate URI

   • SSE/Streamable HTTP Transports: Absolute URL built from request context, ZIMAGE_BASE_URL, or relative path

   • Stdio Transport: file:// URI for local access

   URI Building Priority (SSE/Streamable HTTP):

   1. Request Context (via Context parameter) - builds absolute URL from X-Forwarded-* headers

   2. ZIMAGE_BASE_URL environment variable - configured base URL

   3. Relative URL - fallback when no other method available

   Example with Context parameter:

   @mcp.tool()
   async def generate_with_context(..., ctx: Context) -> ...:
       request = ctx.request_context.request
       proto = request.headers.get('x-forwarded-proto', 'http')
       host = request.headers.get('x-forwarded-host', 'localhost')
       return ResourceLink(uri=f"{proto}://{host}/outputs/image.png", ...)

   {
     "type": "resource_link",
     "name": "image_12345.png",
     "uri": "https://example.com/outputs/image_12345.png",
     "mimeType": "image/png"
   }

3. ImageContent: Thumbnail preview (base64 PNG, max 400px)

   {
     "data": "base64-encoded-png-data",
     "mimeType": "image/png"
   }

This structure ensures:

• ✅ Consistency: Same content for both stdio and SSE transports

• ✅ Efficiency: No URL/path duplication across content items

• ✅ Flexibility: ResourceLink provides file access while ImageContent offers immediate preview

• ✅ Compatibility: Follows MCP best practices for structured content types

Command Line Arguments

Subcommand: generate (alias: gen)

Subcommand: serve

Subcommand: models

Subcommand: info

Subcommand: mcp

Data Directory and Configuration

By default, Z-Image Studio uses the following directories:

• Data Directory (Database, LoRAs): ~/.local/share/z-image-studio (Linux), ~/Library/Application Support/z-image-studio (macOS), or %LOCALAPPDATA%\z-image-studio (Windows).

• Output Directory (Generated Images): <Data Directory>/outputs by default.

Configure the directory

• Config File: ~/.z-image-studio/config.json (created on first run after migration).

  • Override the data directory with Z_IMAGE_STUDIO_DATA_DIR.

  • If you want the output directory sit in another location instead of the data directory, you can override it with Z_IMAGE_STUDIO_OUTPUT_DIR.

  • Set "disable_history": true to turn off generation history entirely (useful on shared deployments). No generation records are written and the history panel is hidden in the web interface. Can also be set to 1 via the ZIMAGE_DISABLE_HISTORY environment variable.

Directory structure inside Data Directory by default:

• zimage.db: SQLite database

• loras/: LoRA models

• outputs/: Generated image files

One-time Migration (automatic)

On first run without an existing config file, the app migrates legacy data by moving:

• outputs/, loras/, and zimage.db from the current working directory (old layout) into the new locations.

Screenshots

(Screenshot 1: Two column layout with History browser collapsed)

(Screenshot 2: Three column layout with History browser pinned)

(Screenshot 3: Generated Image zoomed to fit the screen)

Development

Installation in Project Virtual Environment

1. Clone the repository:

   git clone https://github.com/iconben/z-image-studio.git
   cd z-image-studio

To run the source code directly without installation:

1. Run CLI:

   uv run src/zimage/cli.py generate "A prompt"

2. Run Server:

   uv run src/zimage/cli.py serve --reload

3. Run tests:

   uv run pytest

Optional: Install in editable mode:**

First install it:
```bash
uv pip install -e .
```

After this, the `zimg` command is available **inside this virtual environment**:

Then use the zimg command in either ways:

Using `uv` (recommended):
```bash
uv run zimg generate "A prompt"
```

or use in more traditional way:
```bash
source .venv/bin/activate  # Under Windows: .venv\Scripts\activate
zimg serve
```

Optional: Override the folder settings with environment variables

 If you do not want your development data mess up your production data,
 You can define environment variable Z_IMAGE_STUDIO_DATA_DIR to change the data folder for
 You can also define environment variable Z_IMAGE_STUDIO_OUTPUT_DIR to change the output folder to another separate folder

Docker Development

Build and run with Docker:

# Build the image
docker build -t z-image-studio:dev .

# Run with source mounted for hot-reload
docker run -d \
  --name zimg-dev \
  -p 8000:8000 \
  -v $(pwd)/src:/app/src \
  -v zimg-data:/data \
  -e DEBUG=1 \
  -e ZIMAGE_ENABLE_TORCH_COMPILE=1 \
  z-image-studio:dev

Or use Docker Compose:

docker compose up -d

Environment Variables

Notes

• Guidance Scale: The script hardcodes guidance_scale=0.0 as required by the Turbo model distillation process.

• Safety Checker: Disabled by default to prevent false positives and potential black image outputs during local testing.

For detailed architecture and development guidelines, see docs/architecture.md.
