Enables rendering interactive Highcharts charts inline within GitHub Copilot chat interfaces, allowing AI assistants to visualize data through various chart types directly in the conversation.
Click on "Deploy Server".
Wait a few minutes for the server to deploy. Once ready, it will show a "Started" state.
In the chat, type @ followed by the MCP server name and your instructions, e.g., "@mcp-highcharts Create a line chart showing our monthly revenue growth for the past year"
That's it! The server will respond to your query, and you can continue using it as needed.
Here is a step-by-step guide with screenshots.

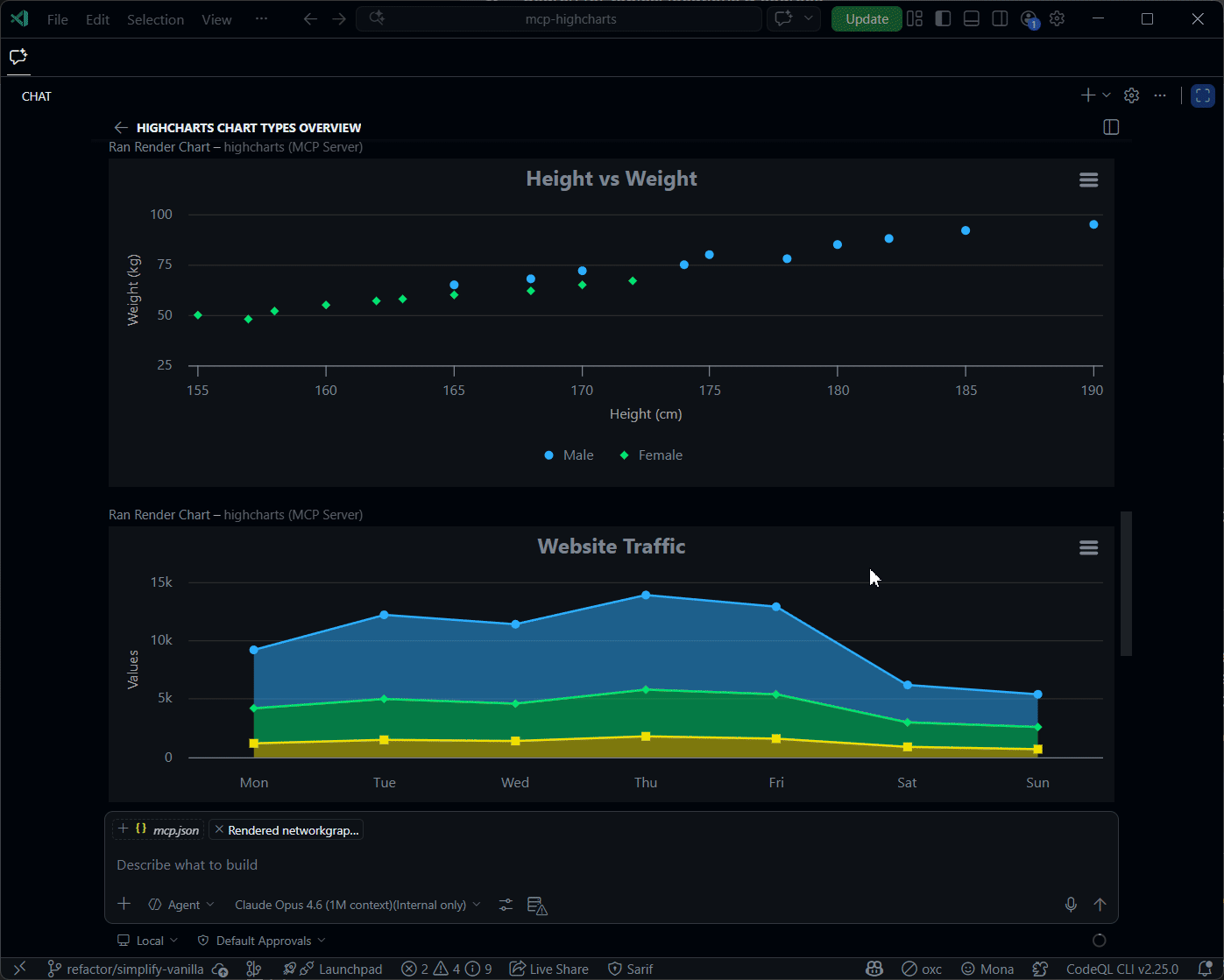

Render interactive Highcharts charts inline in AI chat — VS Code, GitHub Copilot, Claude Desktop, or any MCP client with MCP Apps support.
Click a badge above, or add to your MCP config:
{
"mcp": {
"servers": {
"highcharts": {
"command": "npx",
"args": ["-y", "mcp-highcharts@latest"]
}
}
}
}Add to claude_desktop_config.json:
{
"mcpServers": {
"highcharts": {
"command": "npx",
"args": ["-y", "mcp-highcharts@latest"]
}
}
}npx mcp-highcharts@latest --http # http://localhost:3001/mcp
PORT=8080 npx mcp-highcharts@latest --http # custom portRelated MCP server: Chart-Output MCP Server
Tool | Description |
| Any chart type — line, bar, pie, scatter, heatmap, sankey, gauge, treemap, wordcloud, and 60+ more |
| Financial charts with navigator, range selector, and 40+ technical indicators |
| Multi-component layouts with charts, KPIs, and data grids |
| Choropleth maps, map bubbles, map points (auto-fetches map data from CDN) |
| Project timelines with tasks, dependencies, and milestones |
| Standalone data tables with sorting, pagination, and formatting |
All tools accept the full Highcharts Options API.
Prompt | What it does |
| Paste data → get the best chart |
| Scaffold a dashboard |
| Candlestick + volume + indicators |
| Side-by-side comparison patterns |
| Gantt with dependencies |
| Live-updating chart from a data URL |
Charts auto-adapt to host light/dark mode. Override with environment variables:
{
"env": {
"HIGHCHARTS_THEME": "dark-unica",
"HIGHCHARTS_OPTIONS": "./my-theme.json"
}
}HIGHCHARTS_OPTIONS accepts .json, .js, .mjs, .ts, or inline JSON.
Built-in themes: adaptive (default), avocado, brand-dark, brand-light, dark-blue, dark-green, dark-unica, gray, grid, grid-light, high-contrast-dark, high-contrast-light, sand-signika, skies, sunset
Controls how much type information is sent to the LLM:
{ "env": { "SCHEMA_DEPTH": "1" } }Depth | Description |
| Property names only — zero context overhead |
| Top-level types + descriptions + examples |
| One level of typed children |
| Two levels deep — complete recursive Highcharts type tree |
For live-updating charts, use the Highcharts data module with data.csvURL and data.enablePolling: true.
For MCP clients that don't support MCP Apps, enable server-side image export to include a PNG screenshot of each chart in the tool response:
{
"env": {
"IMAGE_EXPORT": "true"
}
}Charts are rendered as PNG and returned as base64 image content blocks. The interactive MCP app is still included for capable clients.
Rendering strategy (automatic):
Local (Puppeteer) — if highcharts-export-server is installed, charts render locally via a headless browser. No network calls, fastest option.
Remote fallback — if local isn't available, chart config is POSTed to the Highcharts Export Server.
To enable local rendering, install the optional peer dependency:
npm install highcharts-export-serverTo use a custom remote export server:
{
"env": {
"IMAGE_EXPORT": "true",
"EXPORT_SERVER_URL": "https://your-export-server.example.com/"
}
}You can also enable it programmatically: createServer({ imageExport: true }).
Note: Image export works for standard charts, stock charts, and Gantt charts. Dashboards, data grids, and maps with string-based map keys (e.g.
"custom/world") are not exportable and will return text-only results.
npm install
node scripts/generate-from-tree.mjs --multi # generate Zod schemas at depths 0, 1, 2
npm run build
npm testmain.ts Entry point (stdio + HTTP transports)
server.ts MCP server — tool registrations and handlers
src/
export-image.ts Server-side PNG export (local Puppeteer + remote fallback)
input-schema.ts Depth-based schema selection + LLM-friendly overrides
mcp-app.ts Client-side Highcharts rendering
module-loader.ts Dynamic Highcharts module loading
generated/ Auto-generated from Highcharts API (do not edit)
highcharts-depth-{0,1,2}.gen.ts Zod schemas at each depth
module-map.json Chart type → Highcharts module mapping
scripts/
generate-from-tree.mjs Generate Zod schemas from Highcharts tree.json
generate-module-map.mjs Generate module-map.json from Highcharts
example-providers.mjs Example extraction for schema generation
measure-schema.ts Measure tool context size at each depthChart types, module mappings, and schemas are auto-generated from the installed Highcharts version — just npm update highcharts and regenerate.
MIT
Render an interactive Highcharts chart inline. Input is a Highcharts Options object (https://api.highcharts.com/highcharts/).
| Name | Required | Description | Default |
|---|---|---|---|
| accessibility | No | Options for configuring accessibility for the chart. Requires the accessibility module to be loaded. For a description of the module and information on its features, see Highcharts Accessibility. | |
| annotations | No | A collection of annotations to add to the chart. The basic annotation allows adding custom labels or shapes. The items can be tied to points, axis coordinates or chart pixel coordinates. General options for all annotations can be set using the `Highc | |
| boost | No | Options for the Boost module. The Boost module allows certain series types to be rendered by WebGL instead of the default SVG. This allows hundreds of thousands of data points to be rendered in milliseconds. In addition to the WebGL rendering it save | |
| caption | No | The chart's caption, which will render below the chart and will be part of exported charts. The caption can be updated after chart initialization through the `Chart.update` or `Chart.caption.update` methods. | |
| chart | No | General options for the chart. | |
| colorAxis | No | A color axis for series. Visually, the color axis will appear as a gradient or as separate items inside the legend, depending on whether the axis is scalar or based on data classes. For supported color formats, see the docs article about colors. A sc | |
| colors | No | An array containing the default colors for the chart's series. When all colors are used, new colors are pulled from the start again. Default colors can also be set on a series or series.type basis, see column.colors, pie.colors. In styled mode, the c | |
| credits | No | Highcharts by default puts a credits label in the lower right corner of the chart. This can be changed using these options. | |
| data | No | The Data module provides a simplified interface for adding data to a chart from sources like CVS, HTML tables or grid views. See also the tutorial article on the Data module. It requires the `modules/data.js` file to be loaded. Please note that the d | |
| defs | No | Options for configuring markers for annotations. An example of the arrow marker: { arrow: { id: 'arrow', tagName: 'marker', refY: 5, refX: 5, markerWidth: 10, markerHeight: 10, children: [{ tagName: 'path', attrs: { d: 'M 0 0 L 10 5 L 0 10 Z', 'strok | |
| drilldown | No | Options for drill down, the concept of inspecting increasingly high resolution data through clicking on chart items like columns or pie slices. | |
| exporting | No | Options for the exporting module. For an overview on the matter, see the docs and read our Fair Usage Policy. | |
| global | No | Global options that don't apply to each chart. These options must be set using the `Highcharts.setOptions` method. ```js Highcharts.setOptions({ global: { buttonTheme: { fill: '#d0d0d0' } } }); ``` | |
| lang | No | An object containing language-related strings and settings. A typical setup uses `Highcharts.setOptions` to make the options apply to all charts in the same page. ```js Highcharts.setOptions({ lang: { locale: 'fr' } }); ``` | |
| legend | No | The legend is a box containing a symbol and name for each series item or point item in the chart. Each series (or points in case of pie charts) is represented by a symbol and its name in the legend. It is possible to override the symbol creator funct | |
| loading | No | The loading options control the appearance of the loading screen that covers the plot area on chart operations. This screen only appears after an explicit call to `chart.showLoading()`. It is a utility for developers to communicate to the end user th | |
| navigation | No | A collection of options for buttons and menus appearing in the exporting module or in Stock Tools. | |
| noData | No | Options for displaying a message like "No data to display". This feature requires the file no-data-to-display.js to be loaded in the page. The actual text to display is set in the lang.noData option. | |
| pane | No | The pane serves as a container for axes and backgrounds for circular gauges and polar charts. When used in `Highcharts.setOptions` for theming, the pane must be a single object, otherwise arrays are supported. | |
| plotOptions | No | The plotOptions is a wrapper object for config objects for each series type. The config objects for each series can also be overridden for each series item as given in the series array. Configuration options for the series are given in three levels. | |
| responsive | No | Allows setting a set of rules to apply for different screen or chart sizes. Each rule specifies additional chart options. | |
| series | No | Series options for specific data and the data itself. In TypeScript you have to cast the series options to specific series types, to get all possible options for a series. ```ts // TypeScript example Highcharts.chart('container', { series: [{ color: | |
| sonification | No | ||
| subtitle | No | The chart's subtitle. This can be used both to display a subtitle below the main title, and to display random text anywhere in the chart. The subtitle can be updated after chart initialization through the `Chart.setTitle` method. | |
| time | No | Time options that can apply globally or to individual charts. These settings affect how `datetime` axes are laid out, how tooltips are formatted, how series pointIntervalUnit works and how the Highcharts Stock range selector handles time. The common | |
| title | No | The chart's main title. | |
| tooltip | No | Options for the tooltip that appears when the user hovers over a series or point. | |
| xAxis | No | The X axis or category axis. Normally this is the horizontal axis, though if the chart is inverted this is the vertical axis. In case of multiple axes, the xAxis node is an array of configuration objects. See the Axis class for programmatic access to | |
| yAxis | No | The Y axis or value axis. Normally this is the vertical axis, though if the chart is inverted this is the horizontal axis. In case of multiple axes, the yAxis node is an array of configuration objects. See the Axis object for programmatic access to t | |
| zAxis | No | The Z axis or depth axis for 3D plots. See the Axis class for programmatic access to the axis. |
