🏥 MCP Hospital Assistant

A full-stack intelligent hospital appointment management system powered by React, Node.js, PostgreSQL, and Mistral LLM (via Ollama).

🔥 Preview

🎥 Demo Video

▶️ Click here to watch the demo

🏠 Dashboard

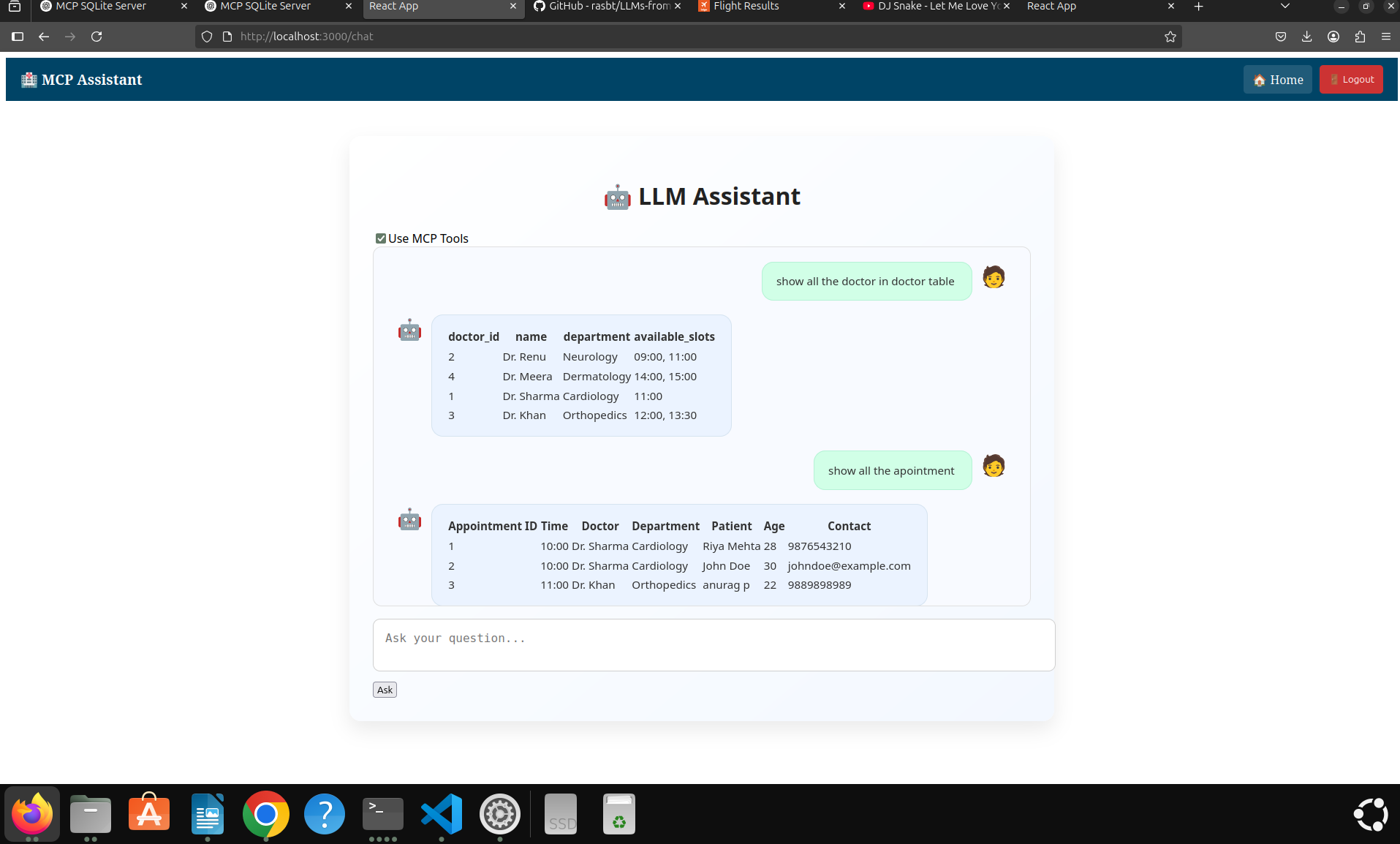

💬 LLM Chat Assistant

💬 Mannual Booking

🔁 Node.js + Express

🎨 React.js (frontend)

🧠 LLM (Ollama - Mistral)

💾 PostgreSQL

🛡️ Session-based login

📷 UI Preview

Login / Register Page

Dashboard with buttons to manage system manually

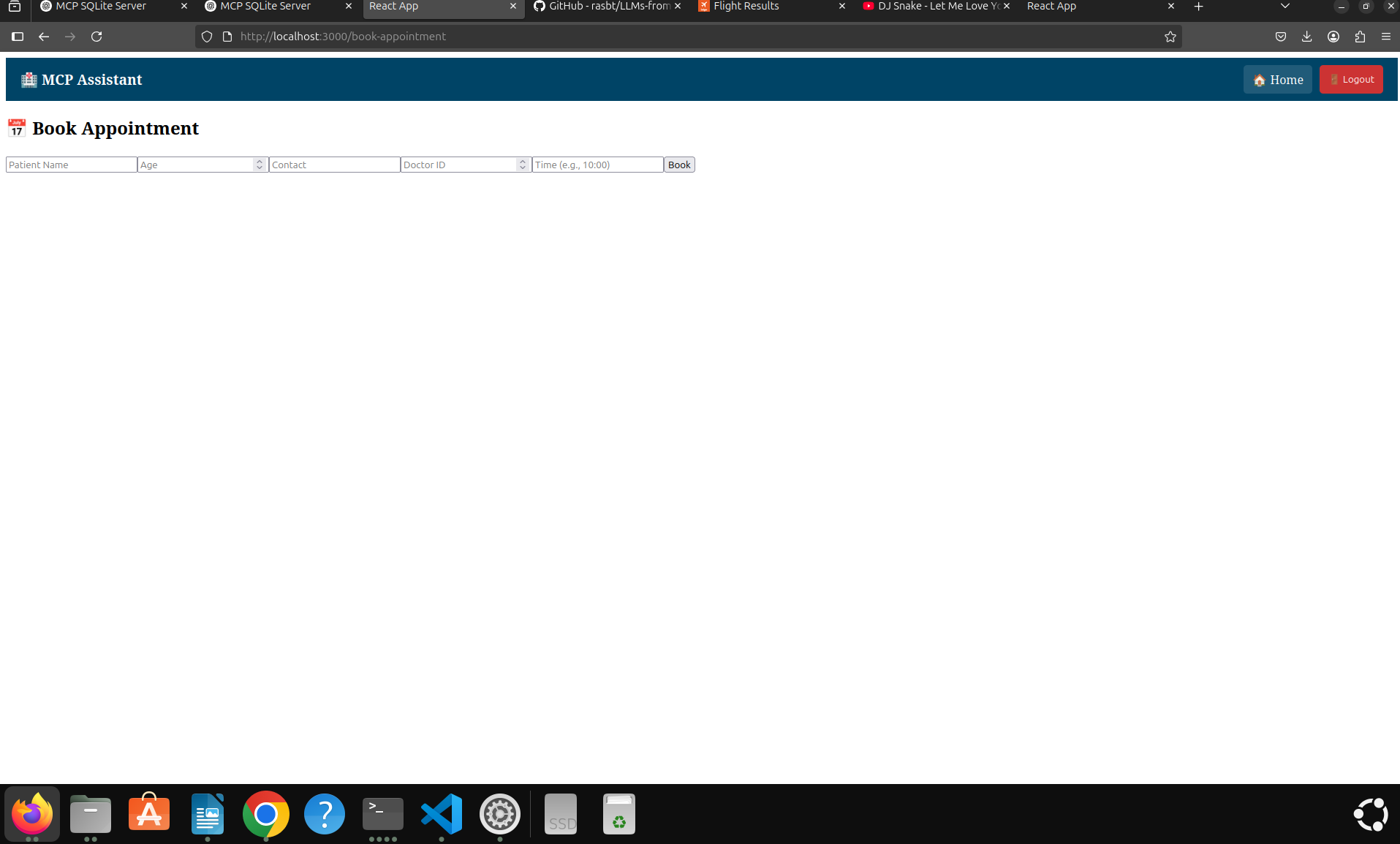

Book Appointment (manual)

LLM-powered auto assistant interface

📁 Project Structure

├── backend/ │ ├── server.js # Node.js + Express backend │ ├── config/config.js # PostgreSQL config │ ├── mcp/ # All business logic handlers │ ├── auth/ # Login, register, session routes ├── frontend/ │ └── mcp-ui/ # React frontend │ ├── components/ # AddDoctor, Chat, Login, Home etc. │ └── App.js # Main route controller

⚙️ Setup Instructions

1. ✅ Install PostgreSQL and create DB

sudo apt install postgresql postgresql-contrib sudo -u postgres psql

Then run:

CREATE DATABASE mcp; CREATE USER mcpuser WITH PASSWORD 'mcppass'; GRANT ALL PRIVILEGES ON DATABASE mcp TO mcpuser;

2. 📦 Create Schema

Connect:

psql -U mcpuser -d mcp -h localhost

CREATE TABLE doctors ( doctor_id SERIAL PRIMARY KEY, name TEXT, department TEXT, available_slots JSONB );

CREATE TABLE patients ( patient_id SERIAL PRIMARY KEY, name TEXT, age INTEGER, contact TEXT );

CREATE TABLE appointments ( appointment_id SERIAL PRIMARY KEY, doctor_id INTEGER REFERENCES doctors(doctor_id), patient_id INTEGER REFERENCES patients(patient_id), appointment_time TEXT );

CREATE TABLE users ( id SERIAL PRIMARY KEY, username TEXT UNIQUE, password TEXT );

GRANT ALL PRIVILEGES ON ALL TABLES IN SCHEMA public TO mcpuser; GRANT ALL PRIVILEGES ON ALL SEQUENCES IN SCHEMA public TO mcpuser;

3. 🧠 Install Ollama with Mistral

curl -fsSL https://ollama.com/install.sh | sh ollama run mistral

Make sure the local Ollama server is running and available on default port 11434. 4. 🚀 Backend Setup (Node.js)

cd backend/ npm install node server.js

This starts backend on: http://localhost:3007 5. 💻 Frontend Setup (React)

cd frontend/mcp-ui npm install npm start

This starts frontend at: http://localhost:3000 🧠 Key Functionalities ✨ Mode 1: Manual via UI

You can click on homepage icons to:

➕ Add Doctor

➕ Add Patient

📅 Book Appointment

📋 View Doctors

📋 View Appointments

These UI features directly use API endpoints (/api/execute, /api/book, etc.) 🔍 Mode 2: Smart Assistant (LLM-enabled)

From the "Ask Assistant" chat interface:

Type: Show all appointments

Or: Book appointment for patient John with doctor 2 at 10:00

✅ If MCP Tools is enabled (checkbox at top), the LLM will:

🔎 Understand user command

🔧 Choose correct tool from tools.json

🧠 Generate SQL

🔁 Automatically execute API calls behind the scenes

❌ If disabled, LLM simply gives plain answers (no system change). 🔐 Authentication

Only authenticated users can access core pages.

Register page stores hashed credentials securely in PostgreSQL.

Session stored using express-session.

📝 Example Prompts for LLM

Show all the doctors in doctor table Show appointments after 11:00 Book an appointment with Dr. Renu at 09:00 for John (age 30)

✅ Summary Feature Manual UI LLM Tools Add Doctor ✅ Yes ✅ via prompt Book Appointment ✅ Yes ✅ if slot available View Doctors/Appointments ✅ Yes ✅ via prompt Edit Slots ✅ Yes (via query) ✅ via prompt Security 🔐 Session Login 🔐 Session Protected
