Code Screenshot Generator MCP

MCP server for generating beautiful code screenshots directly from Claude

npm version npm downloads License: MIT TypeScript MCP

Overview

A Model Context Protocol (MCP) server that enables Claude to generate syntax-highlighted code screenshots with professional themes. Supports direct file reading, line selection, git diff visualization, and batch processing.

Related MCP server: Claude Code Starter Kit MCP

Features

  • 5 Professional Themes: Dracula, Nord, Monokai, GitHub Light, GitHub Dark

  • File Integration: Screenshot code directly from file paths with line range selection

  • Git Diff Support: Visualize staged or unstaged changes

  • Batch Processing: Process multiple files simultaneously

  • Auto Language Detection: Supports 20+ programming languages

  • Native Claude Integration: Works with Claude Desktop and Claude Code

Installation

Prerequisites

npm install -g code-screenshot-mcp

Configuration

Quick Setup (Claude Code):

claude mcp add code-screenshot-mcp

Manual Setup (Claude Desktop):

Add to your Claude configuration file at ~/Library/Application Support/Claude/claude_desktop_config.json:

{
  "mcpServers": {
    "code-screenshot": {
      "command": "code-screenshot-mcp"
    }
  }
}

Restart Claude Desktop after configuration.

Development Setup

git clone https://github.com/MoussaabBadla/code-screenshot-mcp.git
cd code-screenshot-mcp
npm install
npm run build

Quick Start

Basic Screenshot

"Generate a code screenshot of this TypeScript function with Nord theme:

function fibonacci(n: number): number {
  if (n <= 1) return n;
  return fibonacci(n-1) + fibonacci(n-2);
}
"

From File

"Screenshot src/index.ts with Dracula theme"

Specific Lines

"Screenshot lines 20-45 of src/generator.ts with Monokai theme"

Git Diff

"Screenshot my git diff with GitHub Dark theme"

Batch Processing

"Screenshot src/index.ts, src/generator.ts, and src/templates.ts"

Available Themes

  • dracula - Dark purple theme (default)

  • nord - Arctic blue-tinted theme

  • monokai - Classic dark theme

  • github-light - Clean light theme

  • github-dark - GitHub's dark theme

API Reference

generate_code_screenshot

Generate a screenshot from code string.

Parameters:

  • code (string, required) - Source code to screenshot

  • language (string, required) - Programming language identifier

  • theme (string, optional) - Color theme (default: "dracula")

Returns: PNG image with base64 encoding

screenshot_from_file

Screenshot code from file path with automatic language detection.

Parameters:

  • filePath (string, required) - Path to source file

  • startLine (number, optional) - Start line number (1-indexed)

  • endLine (number, optional) - End line number

  • theme (string, optional) - Color theme (default: "dracula")

Supported Extensions: .js, .jsx, .ts, .tsx, .py, .rb, .go, .rs, .java, .c, .cpp, .cs, .php, .swift, .kt, .sql, .sh, .yml, .yaml, .json, .xml, .html, .css, .scss, .md

Returns: PNG image with base64 encoding

screenshot_git_diff

Generate screenshot of git diff output.

Parameters:

  • filePath (string, optional) - Specific file to diff (shows all if omitted)

  • staged (boolean, optional) - Show staged changes instead of unstaged

  • theme (string, optional) - Color theme (default: "dracula")

Returns: PNG image with base64 encoding

batch_screenshot

Process multiple files in a single operation.

Parameters:

  • filePaths (string[], required) - Array of file paths

  • theme (string, optional) - Theme applied to all screenshots (default: "dracula")

Returns: Array of PNG images with success/failure status

Examples

Dracula Theme

Dracula Theme

Nord Theme

Nord Theme

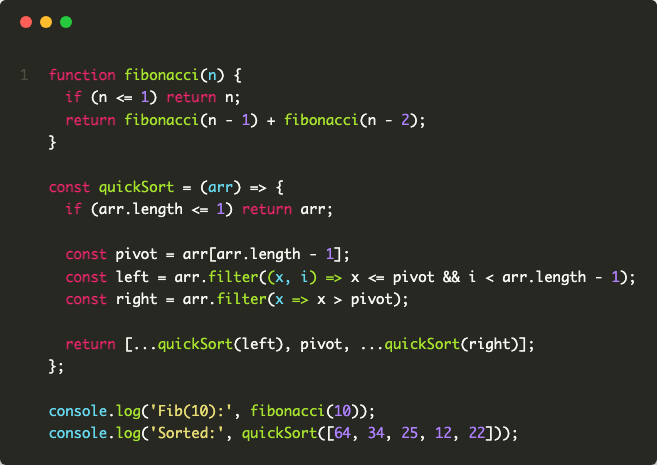

Monokai Theme

Monokai Theme

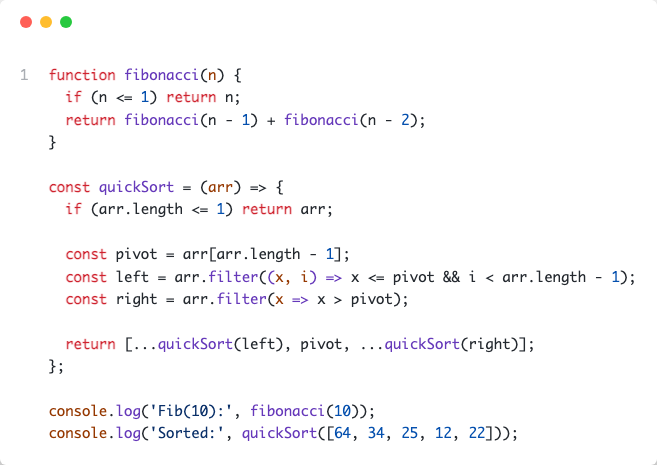

GitHub Light Theme

GitHub Light

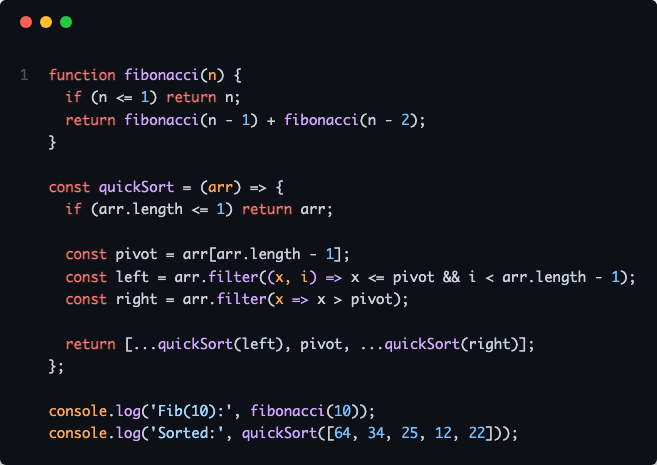

GitHub Dark Theme

GitHub Dark

Contributing

Contributions are welcome. Please follow these steps:

  1. Fork the repository

  2. Create a feature branch: git checkout -b feature/your-feature

  3. Commit changes: git commit -m 'Add your feature'

  4. Push to branch: git push origin feature/your-feature

  5. Submit a pull request

License

MIT License - Copyright (c) 2025 Moussaab Badla

See LICENSE file for details.

Acknowledgments

Built with Model Context Protocol, Playwright, and Highlight.js.


Repository: github.com/MoussaabBadla/code-screenshot-mcp
