English | 中文
DINO-X Official MCP Server — powered by the DINO-X and Grounding DINO models — brings fine-grained object detection and image understanding to your multimodal applications.
With DINO-X MCP, you can:
Fine-Grained Understanding: Full image detection, object detection, and region-level descriptions.
Structured Outputs: Get object categories, counts, locations, and attributes for VQA and multi-step reasoning tasks.
Composable: Works seamlessly with other MCP servers to build end-to-end visual agents or automation pipelines.
Related MCP server: Vision MCP Server
DINO-X MCP supports two transport modes:
Feature | STDIO (default) | Streamable HTTP |
Runtime | Local | Local or Cloud |
Transport | Standard I/O | HTTP (streaming responses) |
Input source |
|
|
Visualization | Supported (saves annotated images locally) | Not supported (for now) |
Any MCP-compatible client works, e.g.:
Apply on the DINO-X platform: Request API Key (new users get free quota).
Add to your MCP client config and replace with your API key:
{
"mcpServers": {
"dinox-mcp": {
"url": "https://mcp.deepdataspace.com/mcp?key=your-api-key"
}
}
}Install Node.js first
Download the installer from nodejs.org
Or use command:
# macOS / Linux
curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash
# or
wget -qO- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash
# load nvm into current shell (choose the one you use)
source ~/.bashrc || true
source ~/.zshrc || true
# install and use LTS Node.js
nvm install --lts
nvm use --lts
# Windows (one of the following)
winget install OpenJS.NodeJS.LTS
# or with Chocolatey (in admin PowerShell)
iwr -useb https://raw.githubusercontent.com/chocolatey/chocolatey/master/chocolateyInstall/InstallChocolatey.ps1 | iex
choco install nodejs-lts -yConfigure your MCP client:
{
"mcpServers": {
"dinox-mcp": {
"command": "npx",
"args": ["-y", "@deepdataspace/dinox-mcp"],
"env": {
"DINOX_API_KEY": "your-api-key-here",
"IMAGE_STORAGE_DIRECTORY": "/path/to/your/image/directory"
}
}
}
}Note: Replace your-api-key-here with your real key.
Make sure Node.js is installed (see Option B), then:
# clone
git clone https://github.com/IDEA-Research/DINO-X-MCP.git
cd DINO-X-MCP
# install deps
npm install
# build
npm run buildConfigure your MCP client:
{
"mcpServers": {
"dinox-mcp": {
"command": "node",
"args": ["/path/to/DINO-X-MCP/build/index.js"],
"env": {
"DINOX_API_KEY": "your-api-key-here",
"IMAGE_STORAGE_DIRECTORY": "/path/to/your/image/directory"
}
}
}
}Common flags
--http: start in Streamable HTTP mode (otherwise STDIO by default)
--stdio: force STDIO mode
--dinox-api-key=...: set API key
--enable-client-key: allow API key via URL ?key= (Streamable HTTP only)
--port=8080: HTTP port (default 3020)
Environment variables
DINOX_API_KEY (required/conditionally required): DINO-X platform API key
IMAGE_STORAGE_DIRECTORY (optional, STDIO): directory to save annotated images
AUTH_TOKEN (optional, HTTP): if set, client must send Authorization: Bearer <token>
Examples:
# STDIO (local)
node build/index.js --dinox-api-key=your-api-key
# Streamable HTTP (server provides a shared API key)
node build/index.js --http --dinox-api-key=your-api-key
# Streamable HTTP (custom port)
node build/index.js --http --dinox-api-key=your-api-key --port=8080
# Streamable HTTP (require client-provided API key via URL)
node build/index.js --http --enable-client-keyClient config when using ?key=:
{
"mcpServers": {
"dinox-mcp": {
"url": "http://localhost:3020/mcp?key=your-api-key"
}
}
}Using AUTH_TOKEN with a gateway that injects Authorization: Bearer <token>:
AUTH_TOKEN=my-token node build/index.js --http --enable-client-keyClient example with supergateway:
{
"mcpServers": {
"dinox-mcp": {
"command": "npx",
"args": [
"-y",
"supergateway",
"--streamableHttp",
"http://localhost:3020/mcp?key=your-api-key",
"--oauth2Bearer",
"my-token"
]
}
}
}Capability | Tool ID | Transport | Input | Output |
Full-scene object detection |
| STDIO / HTTP | Image URL | Category + bbox + (optional) captions |
Text-prompted object detection |
| STDIO / HTTP | Image URL + English nouns (dot-separated for multiple, e.g., | Target object bbox + (optional) captions |
Human pose estimation |
| STDIO / HTTP | Image URL | 17 keypoints + bbox + (optional) captions |
Visualization |
| STDIO only | Image URL + detection results array | Local path to annotated image |
🎯 Scenario | 📝 Input | ✨ Output |

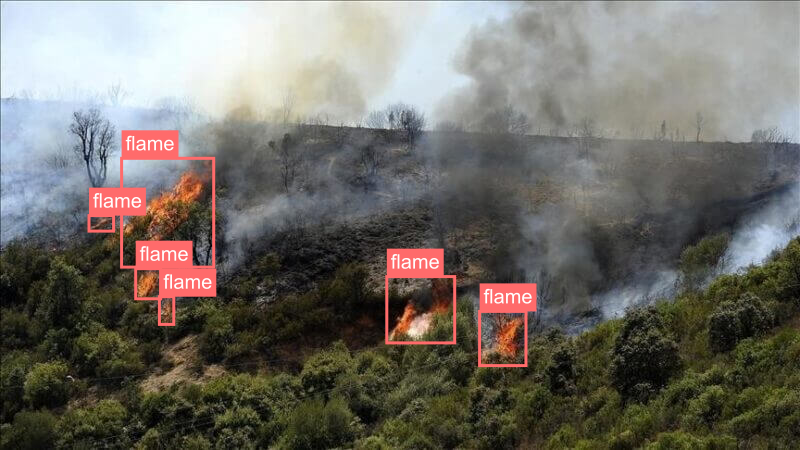

Detection & Localization | 💬 Prompt: | |

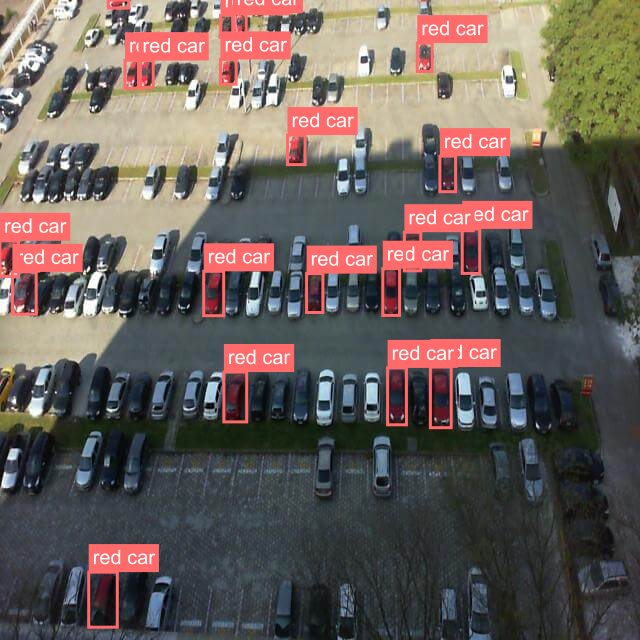

Object Counting | 💬 Prompt: | |
Feature Detection | 💬 Prompt: | |

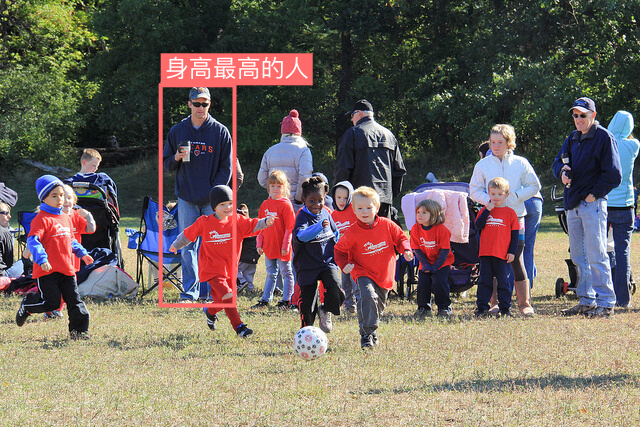

Attribute Reasoning | 💬 Prompt: | |
Full Scene Detection | 💬 Prompt: |
|

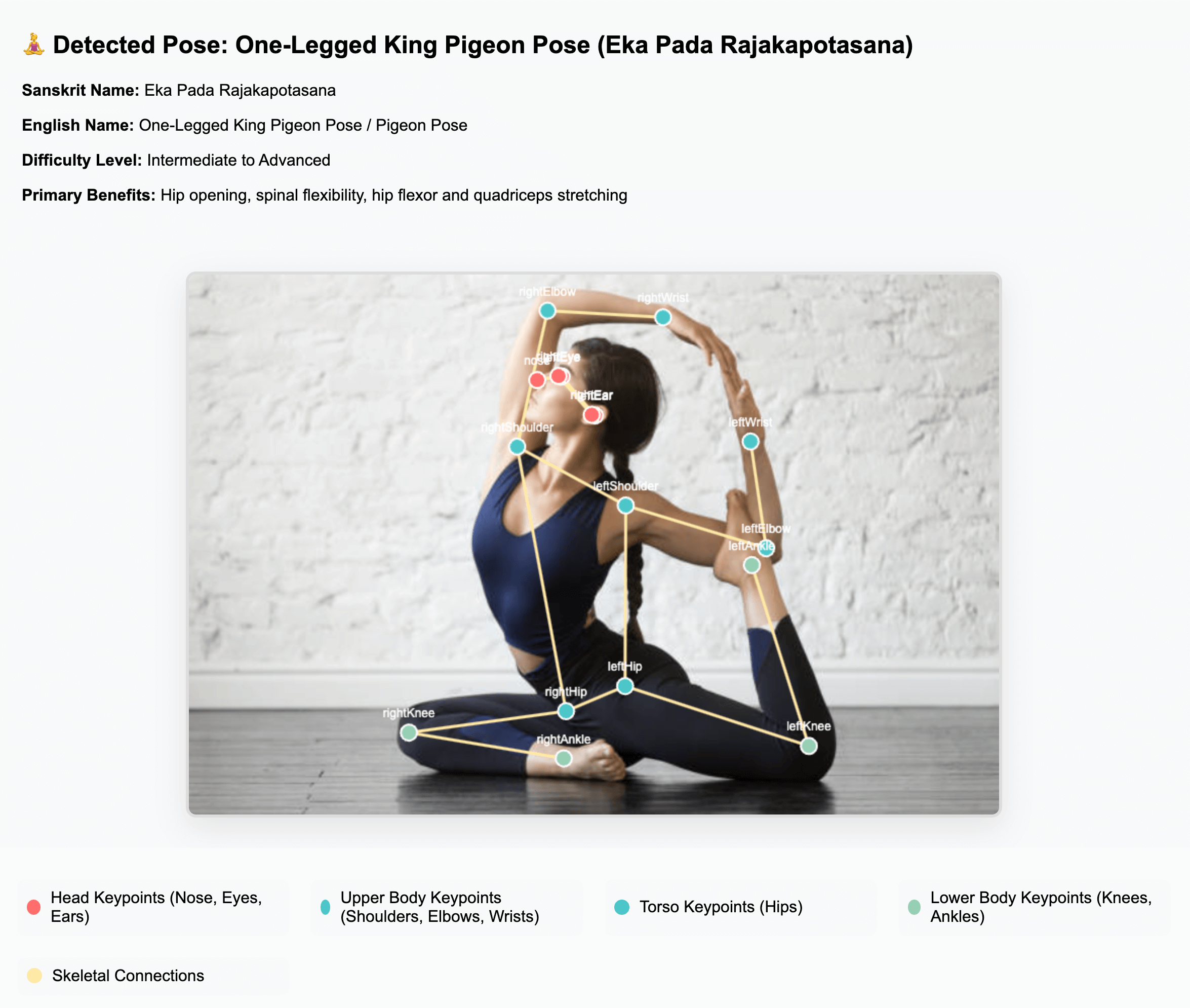

Pose Analysis | 💬 Prompt: |
Supported image sources?
STDIO: file:// and https://
Streamable HTTP: https:// only
Supported image formats?
jpg, jpeg, webp, png
Use watch mode to auto-rebuild during development:
npm run watchUse MCP Inspector for debugging:
npm run inspectorApache License 2.0
