LeanKG

Lightweight Knowledge Graph for AI-Assisted Development

LeanKG is a local-first knowledge graph that gives AI coding tools accurate codebase context. It indexes your code, builds dependency graphs, and exposes an MCP server so tools like Cursor, OpenCode, and Claude Code can query the knowledge graph directly. No cloud services, no external databases.

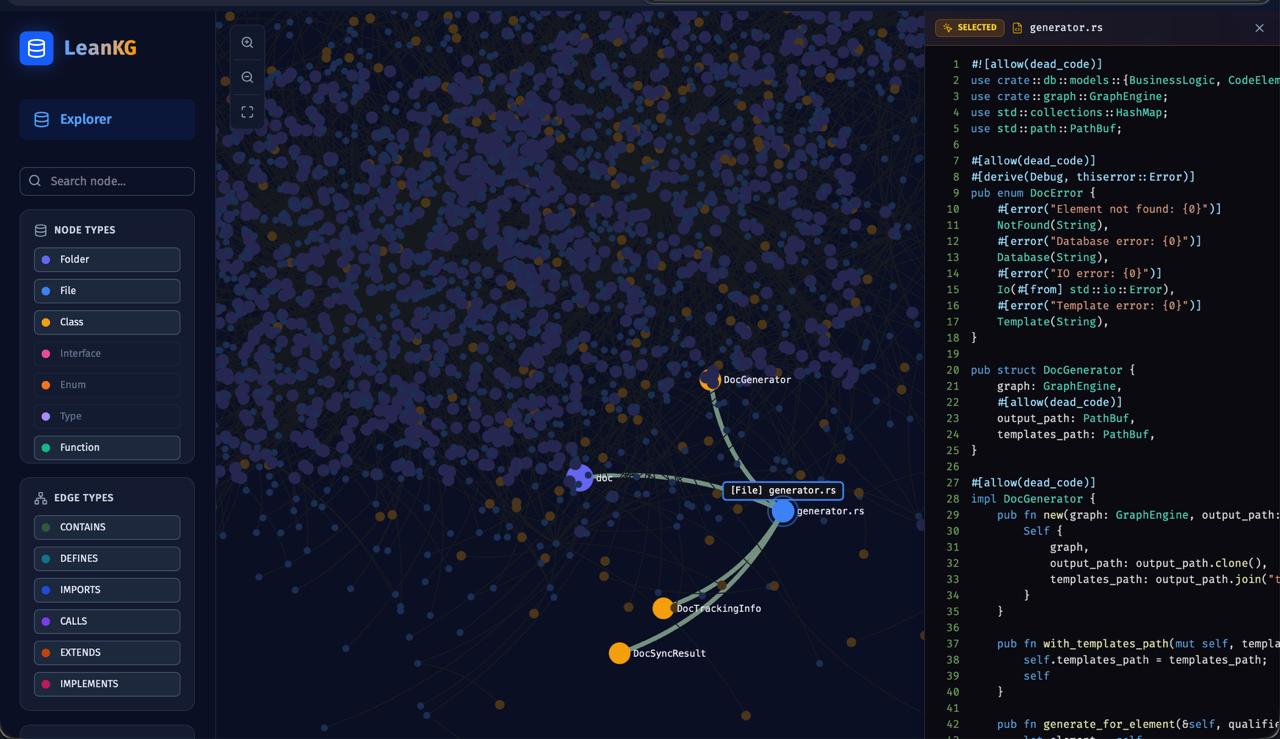

Visualize your knowledge graph with force-directed layout, WebGL rendering, and community clustering.

See docs/web-ui.md for more features.

Live Demo

Try LeanKG without installing: https://leankg.onrender.com

leankg web --port 9000

Related MCP server: CodeXRay

Installation

One-Line Install (Recommended)

curl -fsSL https://raw.githubusercontent.com/FreePeak/LeanKG/main/scripts/install.sh | bash -s -- <target>

Supported targets:

Examples:

curl -fsSL https://raw.githubusercontent.com/FreePeak/LeanKG/main/scripts/install.sh | bash -s -- cursor
curl -fsSL https://raw.githubusercontent.com/FreePeak/LeanKG/main/scripts/install.sh | bash -s -- claude

Install via Cargo or Build from Source

cargo install leankg && leankg --version

git clone https://github.com/FreePeak/LeanKG.git && cd LeanKG && cargo build --release

Docker (Recommended for Teams)

docker compose -f docker-compose.rocksdb.yml up

This starts the LeanKG MCP HTTP server on port 9699 with auto-indexing enabled. Requires Docker or OrbStack.

Quick Start

leankg init                              # Initialize LeanKG in your project
leankg index ./src                        # Index your codebase
leankg watch ./src                        # Auto-index on file changes
leankg impact src/main.rs --depth 3       # Calculate blast radius
leankg status                             # Check index status
leankg metrics                            # View token savings
leankg web                                # Start Web UI at http://localhost:8080
leankg export --format mermaid            # Export graph as Mermaid, DOT, or JSON
leankg quality --min-lines 50             # Find oversized functions
leankg detect-clusters                    # Identify functional code communities
leankg trace --all                        # Show feature-to-code traceability
leankg annotate src/main.rs::main -d "Entry point"  # Annotate code elements

# Run shell commands with RTK compression
leankg run -- cargo test -- --compress

# REST API server with auth
leankg api-serve --port 8081 --auth
leankg api-key create --name my-key

# Process management
leankg proc status                        # Show running LeanKG/Vite processes
leankg proc kill                          # Kill all LeanKG/Vite processes

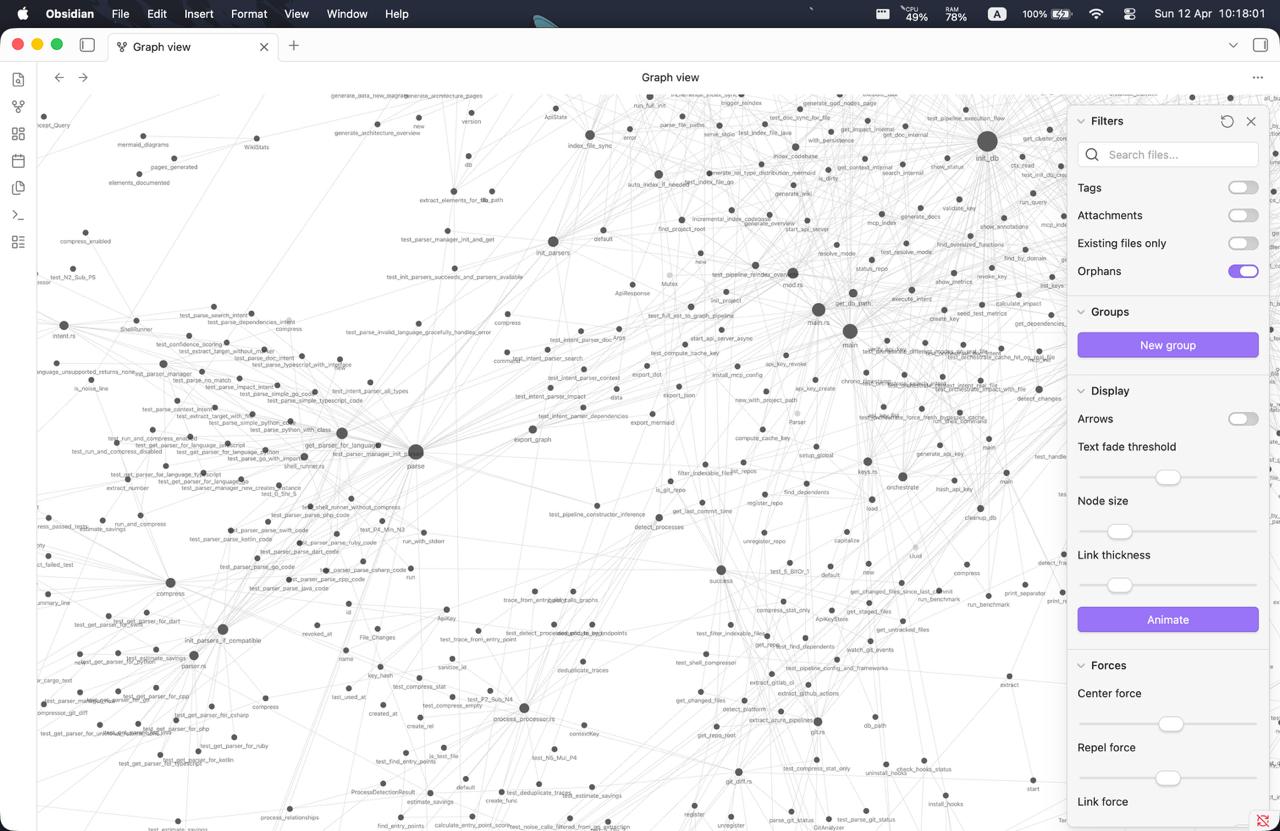

# Obsidian vault sync
leankg obsidian init                      # Initialize Obsidian vault structure
leankg obsidian push                      # Push LeanKG data to Obsidian notes
leankg obsidian pull                      # Pull annotation edits from Obsidian
leankg obsidian watch                     # Watch vault for changes and auto-pull
leankg obsidian status                    # Show vault status

# Microservice call graph (via Web UI)
leankg web                                # Start Web UI at http://localhost:8080
                                          # Then visit http://localhost:8080/services

# Multi-repo registry
leankg register my-project                # Register a repository
leankg list                               # List all registered repos
leankg setup                              # Configure MCP for all repos + install Claude hooks

See docs/cli-reference.md for all commands.

Semantic Search (Embeddings)

Optional feature: dense-vector retrieval + cross-encoder reranking + graph traversal. Off by default to keep the binary slim. Requires building with the embeddings Cargo feature.

Build & first-time setup

# 1. Build with the feature flag
cargo build --release --features embeddings

# 2. Pre-download models (~2.3 GB) — do this once per machine
./target/release/leankg embed --init

Models cache to ~/Library/Caches/leankg/models/ (macOS), ~/.cache/leankg/models/ (Linux), or %LOCALAPPDATA%\leankg\models (Windows).

Build the embedding index

leankg embed                          # incremental (default): only changed/new nodes
leankg embed --full                   # force re-embed every node
leankg embed --batch-size 8           # lower peak RSS on memory-constrained hosts

Index lives inside CozoDB as the embedding_vectors relation + native HNSW index (embedding_vectors:vec_idx, Cosine, f32, 384-dim). Incremental runs diff against the embedding_state table and skip rows whose content hash hasn't changed.

Query

# CLI one-shot (retrieve → rerank → traverse)
leankg semantic-context "embedding inference for semantic search"
leankg semantic-context "auth token validation" --env production --top-k 100
leankg semantic-context "..." --no-traverse       # skip Stage 4 graph enrichment
leankg semantic-context "..." --debug             # diagnostics: counts, latency

Via MCP, the kg_semantic_context tool exposes the same pipeline to AI tools.

Memory tuning

Peak RSS scales with --batch-size (ORT pre-allocates per-thread arenas). Defaults lowered to 32 in the current release. Use the table below if RSS is a problem:

Internals & design rationale

See src/embeddings/EMBEDDINGS.md for the module architecture, file map, data model, the embed/retrieve pipelines, operational gotchas, and the rationale for storing vectors natively in CozoDB's HNSW index.

Design philosophy for the retrieve→rerank→traverse flow is in docs/design/hybrid-retrieval-reranking.md.

Configuration (Environment Variables)

See INSTRUCTION.md for the full memory-tuning playbook.

Claude Code Setup

LeanKG auto-triggers in Claude Code sessions via lifecycle hooks that route search intents to LeanKG tools instead of native tools.

# Install LeanKG with Claude Code hooks and plugin
leankg setup

# Then restart Claude Code or run:
/reload-plugins

What leankg setup installs:

• .claude-plugin/ - Plugin manifest for Claude Code validation

• hooks/ - Full lifecycle hooks: Setup, SessionStart, UserPromptSubmit, PreToolUse, PostToolUse, Stop

• Adds leankg@local to enabledPlugins in ~/.claude/settings.json

Hook lifecycle:

• Setup - Version gating on startup

• SessionStart - Injects tool selection hierarchy into every session

• UserPromptSubmit - Initializes session context with LeanKG patterns

• PreToolUse - Nudges toward LeanKG when you use Grep/Read/Bash for code analysis

• PostToolUse - Logs LeanKG MCP tool usage for analytics

• Stop - Captures session summary for future context retrieval

How LeanKG Helps

graph LR
    subgraph "Without LeanKG"
        A1[AI Tool] -->|Full codebase context| B1[15,000-45,000 tokens]
        B1 --> A1
    end

    subgraph "With LeanKG"
        A2[AI Tool] -->|Targeted subgraph| C[LeanKG Graph]
        C -->|Context reduction| A2
    end

Without LeanKG: AI processes full context from files found via grep/search. With LeanKG: AI queries knowledge graph for targeted context. Token reduction varies by task complexity (see benchmark results).

Highlights

• Auto-Init -- Install script configures MCP, rules, skills, and hooks automatically

• Auto-Trigger -- Session hooks inject LeanKG context into every AI tool session

• Token Optimized -- Targeted subgraph retrieval vs full file scanning

• Impact Radius -- Compute blast radius before making changes

• Pre-Commit Risk Analysis -- detect_changes classifies risk as critical/high/medium/low

• Dependency Graph -- Build call graphs with IMPORTS, CALLS, TESTED_BY edges

• MCP Server -- Expose graph via MCP protocol for AI tool integration (40 tools)

• Orchestration -- Smart context routing with caching via natural language intent

• Community Detection -- Auto-detect functional clusters in your codebase

• Multi-Language -- Index Go, TypeScript, Python, Rust, Java, Kotlin, Ruby, PHP, Perl, R, Elixir, Bash with tree-sitter

• Android -- Extract XML layouts, resources, manifest relationships, and navigation graphs

• Service Topology -- Microservice call graph visualization

• Annotation Search -- Search code by @Entity, @HiltViewModel, and other annotations

• Graph Export -- Export as JSON, DOT, or Mermaid formats

• REST API -- Full REST API with auth and API key management

• RTK Compression -- Run shell commands with token-saving compression

See docs/architecture.md for system design and data model details.

Supported AI Tools

Note: Cursor requires per-project installation. The AI features work on a per-workspace basis, so LeanKG should be installed in each project directory where you want AI context injection.

See docs/agentic-instructions.md for detailed setup and auto-trigger behavior.

Context Metrics

Track token savings to understand LeanKG's efficiency.

leankg metrics --json              # View with JSON output
leankg metrics --since 7d           # Filter by time
leankg metrics --tool search_code   # Filter by tool

See docs/metrics.md for schema and examples.

Update

# Check current version
leankg version

# Update LeanKG binary (kills processes, removes old binary, installs hooks)
leankg update

# Or via install script
curl -fsSL https://raw.githubusercontent.com/FreePeak/LeanKG/main/scripts/install.sh | bash -s -- update

# Obsidian vault sync
leankg obsidian init                      # Initialize Obsidian vault
leankg obsidian push                      # Push LeanKG data to Obsidian notes
leankg obsidian pull                      # Pull annotation edits from Obsidian

Documentation

Troubleshooting

Troubleshooting

High RAM Usage on macOS

LeanKG uses memory-mapped I/O and in-memory caching which can consume significant RAM on macOS. Primary causes:

Quick fix - add to your shell profile:

export LEANKG_MMAP_SIZE=134217728   # 128MB instead of 256MB
export LEANKG_CACHE_MAX_TOKENS=100000  # 100K instead of 500K

See INSTRUCTION.md for detailed memory tuning and MCP server setup.

Embeddings feature (--features embeddings)

The optional embeddings pipeline (dense-vector retrieval + reranker) has its own failure modes. See src/embeddings/EMBEDDINGS.md for full operational notes. Common issues:

Database Lock Error

If you see database is locked (code 5), another LeanKG process is holding the database:

# Kill all leankg and vite processes
leankg-kill

# Or manually
pkill -9 -f "leankg"
pkill -9 -f "vite"

Process Management

leankg proc kill        # Kill all leankg and vite processes
leankg proc status      # Show running leankg/vite processes

Important: Always kill the web server before indexing to avoid database lock conflicts.

Performance Benchmarks

Load Test Results (100K nodes)

Run load tests:

cargo test --release load_test -- --nocapture

Unified A/B Benchmark (All Tools, Simple to Complex)

Measures latency, input/output token usage, and token efficiency across 19 test cases spanning all LeanKG tools (search, find, context, dependencies, impact radius, call graphs, ontology) at 3 complexity levels, with automated Markdown export.

# Run the unified benchmark (rebuild first if source changed)
cargo build --release
target/release/leankg benchmark-unified --project .

See benchmark/results/unified-benchmark-1782980096.md for the full report (JSON + Markdown).

A/B Benchmark Results (Legacy)

See tests/benchmark/results/clean-benchmark-2026-04-21.md for earlier A/B testing results comparing LeanKG vs baseline code search.

Requirements

• Rust 1.75+

• macOS or Linux

License

MIT
