mcp_mysql_server_pro
Introduction
mcp_mysql_server_pro is not just about MySQL CRUD operations, but also includes database anomaly analysis capabilities and makes it easy for developers to extend with custom tools.
Supports all Model Context Protocol (MCP) transfer modes (STDIO, SSE, Streamable Http)
Supports OAuth2.0
Supports multiple SQL execution, separated by ";"
Supports querying database table names and fields based on table comments
Supports SQL execution plan analysis
Supports Chinese field to pinyin conversion
Supports table lock analysis
Supports database health status analysis
Supports permission control with three roles: readonly, writer, and admin
"readonly": ["SELECT", "SHOW", "DESCRIBE", "EXPLAIN"], # Read-only permissions "writer": ["SELECT", "SHOW", "DESCRIBE", "EXPLAIN", "INSERT", "UPDATE", "DELETE"], # Read-write permissions "admin": ["SELECT", "SHOW", "DESCRIBE", "EXPLAIN", "INSERT", "UPDATE", "DELETE", "CREATE", "ALTER", "DROP", "TRUNCATE"] # Administrator permissionsSupports prompt template invocation
Tool List
Tool Name | Description |
execute_sql | SQL execution tool that can execute ["SELECT", "SHOW", "DESCRIBE", "EXPLAIN", "INSERT", "UPDATE", "DELETE", "CREATE", "ALTER", "DROP", "TRUNCATE"] commands based on permission configuration |
get_chinese_initials | Convert Chinese field names to pinyin initials |
get_db_health_running | Analyze MySQL health status (connection status, transaction status, running status, lock status detection) |
get_table_desc | Search for table structures in the database based on table names, supporting multi-table queries |
get_table_index | Search for table indexes in the database based on table names, supporting multi-table queries |
get_table_lock | Check if there are row-level locks or table-level locks in the current MySQL server |
get_table_name | Search for table names in the database based on table comments and descriptions |
get_db_health_index_usage | Get the index usage of the currently connected mysql database, including redundant index situations, poorly performing index situations, and the top 5 unused index situations with query times greater than 30 seconds |
optimize_sql | Professional SQL performance optimization tool, providing expert optimization suggestions based on MySQL execution plans, table structure information, table data volume, and table indexes. |
use_prompt_queryTableData | Use built-in prompts to let the model construct a chain call of tools in mcp (not a commonly used fixed tool, you need to modify the code to enable it, see this class for details) |
Prompt List
Prompt Name | Description |
analyzing-mysql-prompt | This is a prompt for analyzing MySQL-related issues |
query-table-data-prompt | This is a prompt for querying table data using tools. If description is empty, it will be initialized as a MySQL database query assistant |
Usage Instructions
Installation and Configuration
Install Package
Configure Environment Variables Create a
.envfile with the following content:
Run Service
mcp client
go to see see "Use uv to start the service" ^_^
Note:
The
.envfile should be placed in the directory where you run the command or use --envfile parameter to specify the pathYou can also set these variables directly in your environment
Make sure the database configuration is correct and can connect
Run with uvx, Client Configuration
This method can be used directly in MCP-supported clients, no need to download the source code. For example, Tongyi Qianwen plugin, trae editor, etc.
Local Development with Streamable Http mode
Use uv to start the service
Add the following content to your mcp client tools, such as cursor, cline, etc.
mcp json as follows:
Modify the .env file content to update the database connection information with your database details:
Start commands:
Local Development with SSE Mode
Use uv to start the service
Add the following content to your mcp client tools, such as cursor, cline, etc.
mcp json as follows:
Modify the .env file content to update the database connection information with your database details:
Start commands:
Local Development with STDIO Mode
Add the following content to your mcp client tools, such as cursor, cline, etc.
mcp json as follows:
Custom Tool Extensions
Add a new tool class in the handles package, inherit from BaseHandler, and implement get_tool_description and run_tool methods
Import the new tool in init.py to make it available in the server
OAuth2.0 Authentication
Start the authentication service. By default, it uses the built-in OAuth 2.0 password mode authentication. You can modify your own authentication service address in the env file.

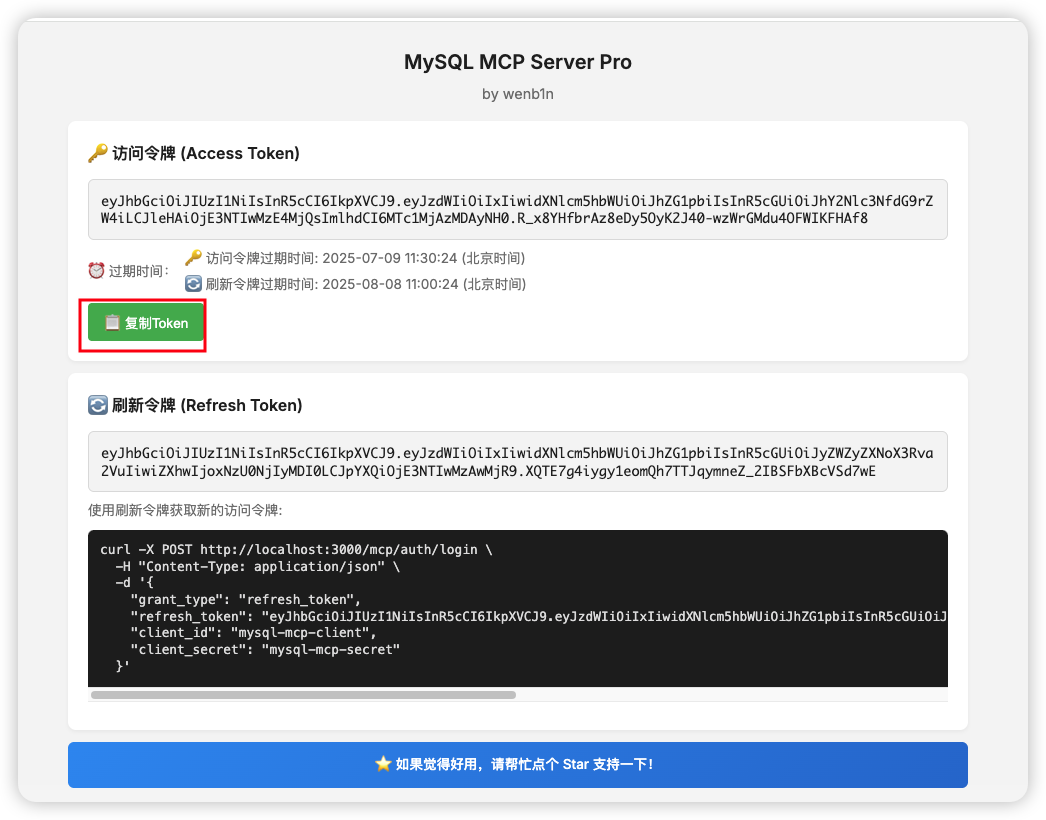

Visit the authentication service at http://localhost:3000/login. Default username and password are configured in the env file.
Copy the token and add it to the request headers, for example:
Examples

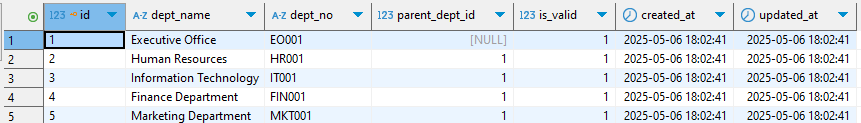

Create a new table and insert data, prompt format as follows:
Query data based on table comments, prompt as follows:
Analyze slow SQL, prompt as follows:
Analyze SQL deadlock issues, prompt as follows:

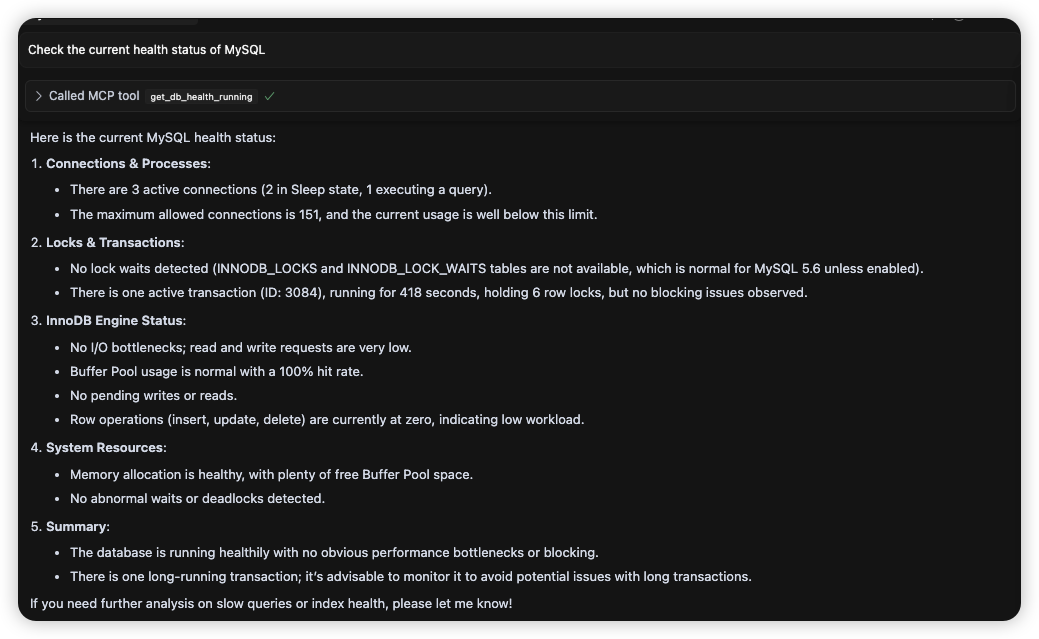

Analyze the health status prompt as follows
