MCP Application - Context Memory Updater

This application showcases context memory using Model Context Protocol (MCP) tools in an LLM-based system. It allows different users to store, retrieve, and update their travel preferences and other general memories with intelligence assistant through a chatinterface.

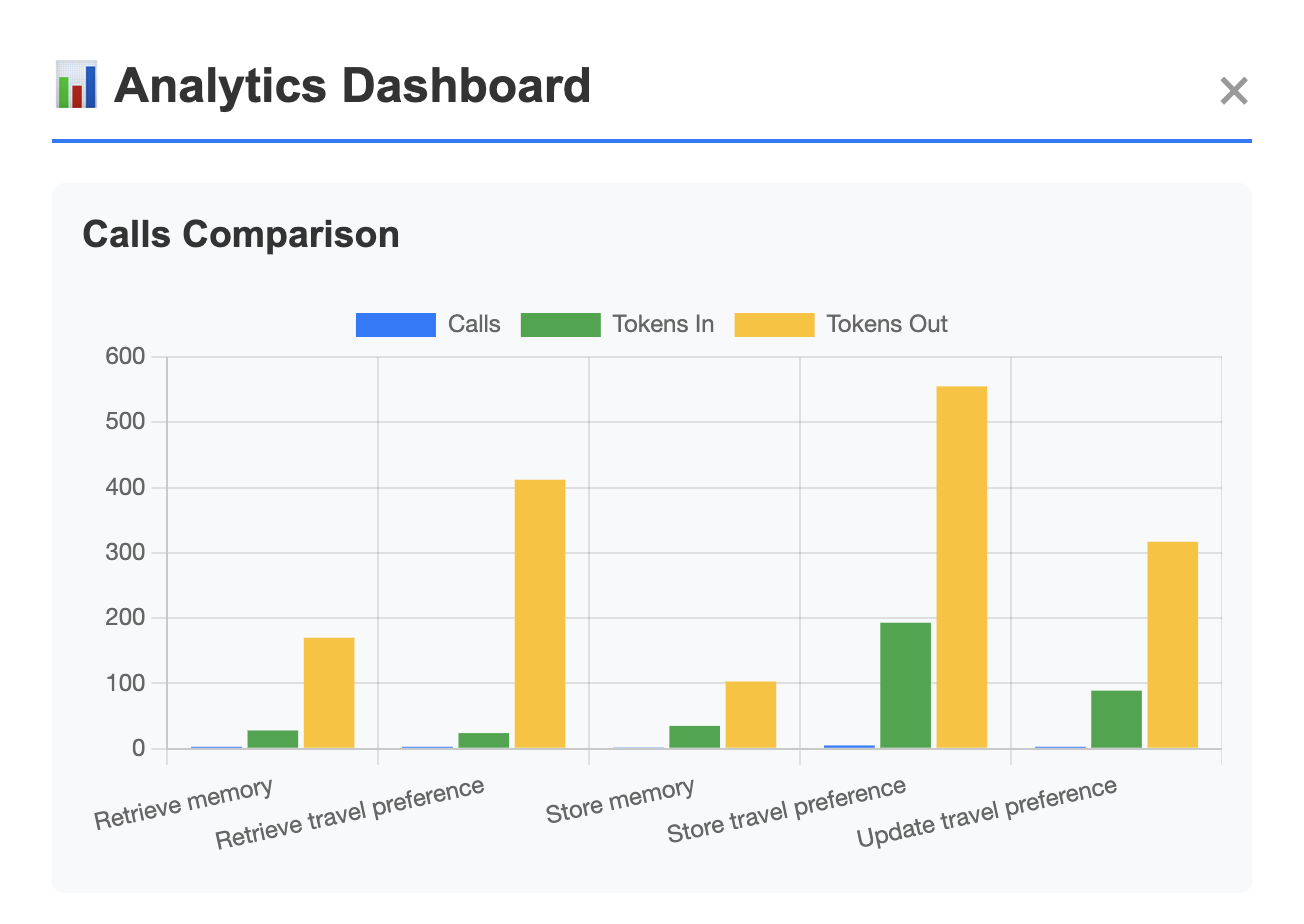

On the analytic side, the application summarizes tool usage statistics to support continuous improvement and cost control, answering questions such as which tool-call sequences happens the more frequently? or which tool incurs most tokens?

Table of Contents

1. System Design

   • MCP Server

     • Tools

   • MCP Client

     • Command-Line Client

     • Web Client

2. Setup, Development, and Usage

   • Environment Setup

   • Dependency Installation

   • Running MCP Server & Clients

   • Running Non-Containerized Clients

   • Available Endpoints

3. Tests

   • Unit Tests

   • Integration Tests (LLM-based)

   • End-to-End Scenario (Puppeteer)

4. Deployment

5. Future Work

6. Final Thoughts

7. Appendices: Prompt Testing

System Design

Key Design Rationale

1. Containerized MCP Server

   • Chosen over serverless to maintain persistent DB connections, stable multi-turn tool state, and reproducible deployment for both MCP server and gateway.

   • Provides lightweight process and network isolation, allowing the MCP server to run with minimal privileges and internal-only access.

2. Clear Server–Gateway Separation

   • MCP server handles tool execution and memory logic; the Python API Gateway manages browser-safe access, authentication, and LLM request shaping.

   • Prevents exposing secrets and keeps protocol logic clean.

3. Database Design

   • SQLite for portability and local testing; modular data access enables drop-in replacement with PostgreSQL for production.

4. Authentication & Isolation

   • Registration, token issuance, and strict per-user data isolation via user_id; architecture leaves room for RBAC/IAM extensions.

5. Unified Client Architecture

   • CLI and web clients share a single client_core, ensuring consistent MCP behavior without duplicating logic.

   • Web client only communicates through the gateway for security and simplicity.

   • Ease of Use: Both clients expose a simple chat interface, user memory retrieval, making interaction symmetric across environments.

   • LLM Client Adapter: A pluggable LLM adapter abstracts API calls, allowing the system to switch between different LLM providers without modifying client logic.

6. Tooling Structure

   • Memory, travel-preference, and external dummy tools model different MCP interaction patterns, CRUD state, retrieval, and simulated external actions, supporting robust LLM behavior testing.

7. Testability & Analytics

   • Built-in tool-usage analytics for understanding LLM behavior and token cost.

   • Multi-layer testing (unit, LLM integration, Puppeteer E2E) ensures reliability and controlled prompt evaluation.

8. Stack Choices

   • FastMCP for standardized MCP protocol and tool execution, LLM interoperability via Pydantic.

   • FastAPI for the simple, asynchronous-friendly API gateway.

   • Render for fast containerized-app hosting.

   • Pytest + Puppeteer for unit, integration, and end-to-end testing.

MCP Server

• Standardized, specific tools made available for LLM to utilize upon natural language query: CRUD operations for user's general memory and travel preferences

• Unified datamodel and data storage for context memory

• Containerized: more persistent, suitable for LLM integration than serverless deployment

Available Tools

The core engine that exposes standardized tools to the LLM.

• Context Tools: store_, retrieve_, update_, delete_ for both Travel Preferences and General Memory.

• External Service Simulation: Dummy tools for lookup_flights, book_hotels, etc., to test complex tool-chaining capabilities.

MCP Client

• Chat-based user interface, self-identification, individual context information

• Lightweight server analytics - how has MCP server been utilized by the client? - macro statistics of tool usage

• Two versions of client, sharing the same core functionality

Command-Line Client

• Native Python cli application with interactive chat loop

• No deployment, only connect to local MCP server and LLM API

Web Client

• Lightweight frontend that interacts with the single gateway, holding no secret keys and user information

• Single page application using vanilla JS

• Python API gateway for MCP & LLM API

• Containerized and deployable

• Alternative: heavier frontend JS frameworks as a one-stop solution to connect with LLM and MCP, which also requires its own deployment process & secret management, hence falling back to simple client-gateway solution

Setup, Development, and Usage

Update local environment secret key. Never hard-code one.

Local dependencies. Tested on Python 3.13. Using PyEnv to manage local Python version is recommended.

MCP Server & Clients

MCP server and available clients can operate in multiple options.

Option 1) Starting server without container.

Option 2) Starting servers with individual containers (mcp-server & web client) & host data sync.

Option 3) Building and starting all containers (mcp-server & web client) with docker-compose.

Non-Containerized Clients

Starting CLI client, only available for local use.

Either option should yield following endpoint URLs:

• MCP - http://127.0.0.1:8000

  • anonymous memory overview - http://127.0.0.1:8000/memory_overview

• Web-Client - http://127.0.0.1:8001

Tests

Unit testing whether MCP tools work correctly without LLM.

Integration testing whether LLM understands the data from, and can correctly interact with, MCP tools.

Testing End-to-End Scenario

Run Puppeteer to test a chat scenario visually.

Start testing scenario.

Deployment

Deploying on Render (see actions script).

• MCP - https://context-mcp-server.onrender.com/

  • anonymous memory overview - https://context-mcp-server.onrender.com/memory_overview

• Web-Client - https://context-web-client.onrender.com/

Future Work

There are several pending tasks on TODOs.

• scalable database: currently, I use SQLite to store MCP data. It's definitely not ideal. I can replace the database functions to use more robust database solution e.g., PostgreSQL or managed database services--only modify server_database.py.

• better user authorization: current simple token-based authentication may neither scale nor support role-based system. To achieve these requirements, I can implement IAM system that follows least-privilege principles, so each user or client only has access to the tools and actions they actually need.

• model performance test: I use gpt-4o-mini for its cost effectiveness. It should be tested whether switching to more advanced models worth the costs for this type of tasks. I can create semantically difficult dataset and questions to test this out.

Final Thoughts

I chose the MCP option out of curiosity because I've recently implemented an LLM document assitant for my old blog as a toy project, which has covered most required functionalities for the RAG option, and partially for the data-driven assistant option. I felt it's a good opportunity to try building an MCP server from scratch because I've only worked with MCP tools implemented by other people. However, it was quite an open-ended requirement, leaving room for interpretation. I hope I haven't misunderstood it by far :)

The most challenging problem I encountered was the rapidly changing API specifications of all the essential libraries and tools. This makes AI coding assistant very unreliable. Documentation does not provide a good support either. Trial-and-error, with very specific questions prompts on small and concise issues, is the best workaround in this case. Holistic prompting never works.

Appendices - Prompt Testing

Prompt plays important roles in MCP application. To ensure the prompt efficiency, I ran the test on different prompt versions that focus on different aspects: minimalist, exploratory, analytical, risk-awareness, and comprehensiveness. I create mock-up conversation scenarios, collect tool usage statistics and response success, and choose the best prompt as the initial version for the application.

I combine variant 1 (comprehensive) and variant 2 (analytical) because a well-balanced tool call distribution, reasonable expected responses, and acceptable tokens-out which reflect the LLM cost.
