💾 Synology MCP Server

Synology MCP Server

A Model Context Protocol (MCP) server for Synology NAS devices. Enables AI assistants to manage files and downloads through secure authentication and session management.

🌟 NEW: Unified server supports both Claude/Cursor (stdio) and Xiaozhi (WebSocket) simultaneously!

🚀 Quick Start with Docker

1️⃣ Setup Environment

# Clone repository git clone https://github.com/atom2ueki/mcp-server-synology.git cd mcp-server-synology # Create environment file cp env.example .env

2️⃣ Configure .env File

Basic Configuration (Claude/Cursor only):

Extended Configuration (Both Claude/Cursor + Xiaozhi):

# Required: Synology NAS connection SYNOLOGY_URL=http://192.168.1.100:5000 SYNOLOGY_USERNAME=your_username SYNOLOGY_PASSWORD=your_password # Optional: Auto-login on startup AUTO_LOGIN=true VERIFY_SSL=false # Enable Xiaozhi support ENABLE_XIAOZHI=true XIAOZHI_TOKEN=your_xiaozhi_token_here XIAOZHI_MCP_ENDPOINT=wss://api.xiaozhi.me/mcp/

3️⃣ Run with Docker

One simple command supports both modes:

# Claude/Cursor only mode (default if ENABLE_XIAOZHI not set) docker-compose up -d # Both Claude/Cursor + Xiaozhi mode (if ENABLE_XIAOZHI=true in .env) docker-compose up -d # Build and run docker-compose up -d --build

4️⃣ Alternative: Local Python

# Install dependencies pip install -r requirements.txt # Run with environment control python main.py

🔌 Client Setup

🤖 Claude Desktop

Add to your Claude Desktop configuration file:

macOS: ~/Library/Application Support/Claude/claude_desktop_config.json Windows: %APPDATA%\Claude\claude_desktop_config.json

{ "mcpServers": { "synology": { "command": "docker-compose", "args": [ "-f", "/path/to/your/mcp-server-synology/docker-compose.yml", "run", "--rm", "synology-mcp" ], "cwd": "/path/to/your/mcp-server-synology" } } }

↗️ Cursor

Add to your Cursor MCP settings:

🔄 Continue (VS Code Extension)

Add to your Continue configuration (.continue/config.json):

💻 Codeium

For Codeium's MCP support:

🐍 Alternative: Direct Python Execution

If you prefer not to use Docker:

{ "mcpServers": { "synology": { "command": "python", "args": ["main.py"], "cwd": "/path/to/your/mcp-server-synology", "env": { "SYNOLOGY_URL": "http://192.168.1.100:5000", "SYNOLOGY_USERNAME": "your_username", "SYNOLOGY_PASSWORD": "your_password", "AUTO_LOGIN": "true", "ENABLE_XIAOZHI": "false" } } } }

🌟 Xiaozhi Integration

New unified architecture supports both clients simultaneously!

How It Works

ENABLE_XIAOZHI=false (default): Standard MCP server for Claude/Cursor via stdio
ENABLE_XIAOZHI=true: Multi-client bridge supporting both:
- 📡 Xiaozhi: WebSocket connection
- 💻 Claude/Cursor: stdio connection

Setup Steps

Add to your .env file:

ENABLE_XIAOZHI=true XIAOZHI_TOKEN=your_xiaozhi_token_here

Run normally:

# Same command, different behavior based on environment python main.py # OR docker-compose up

Key Features

✅ Zero Configuration Conflicts: One server, multiple clients
✅ Parallel Operation: Both clients can work simultaneously
✅ All Tools Available: Xiaozhi gets access to all Synology MCP tools
✅ Backward Compatible: Existing setups work unchanged
✅ Auto-Reconnection: Handles WebSocket connection drops
✅ Environment Controlled: Simple boolean flag to enable/disable

Startup Messages

Claude/Cursor only mode:

🚀 Synology MCP Server ============================== 📌 Claude/Cursor only mode (ENABLE_XIAOZHI=false)

Both clients mode:

🚀 Synology MCP Server with Xiaozhi Bridge ================================================== 🌟 Supports BOTH Xiaozhi and Claude/Cursor simultaneously!

🛠️ Available MCP Tools

🔐 Authentication

synology_status - Check authentication status and active sessions
synology_login - Authenticate with Synology NAS (conditional)
synology_logout - Logout from session (conditional)

📁 File System Operations

list_shares - List all available NAS shares
list_directory - List directory contents with metadata
- path (required): Directory path starting with /
get_file_info - Get detailed file/directory information
- path (required): File path starting with /
search_files - Search files matching pattern
- path (required): Search directory
- pattern (required): Search pattern (e.g., *.pdf)
create_file - Create new files with content
- path (required): Full file path starting with /
- content (optional): File content (default: empty string)
- overwrite (optional): Overwrite existing files (default: false)
create_directory - Create new directories
- folder_path (required): Parent directory path starting with /
- name (required): New directory name
- force_parent (optional): Create parent directories if needed (default: false)
delete - Delete files or directories (auto-detects type)
- path (required): File/directory path starting with /
rename_file - Rename files or directories
- path (required): Current file path
- new_name (required): New filename
move_file - Move files to new location
- source_path (required): Source file path
- destination_path (required): Destination path
- overwrite (optional): Overwrite existing files

📥 Download Station Management

ds_get_info - Get Download Station information
ds_list_tasks - List all download tasks with status
- offset (optional): Pagination offset
- limit (optional): Max tasks to return
ds_create_task - Create new download task
- uri (required): Download URL or magnet link
- destination (optional): Download folder path
ds_pause_tasks - Pause download tasks
- task_ids (required): Array of task IDs
ds_resume_tasks - Resume paused tasks
- task_ids (required): Array of task IDs
ds_delete_tasks - Delete download tasks
- task_ids (required): Array of task IDs
- force_complete (optional): Force delete completed
ds_get_statistics - Get download/upload statistics

⚙️ Configuration Options

Variable	Required	Default	Description
`SYNOLOGY_URL`	Yes*	-	NAS base URL (e.g., `http://192.168.1.100:5000` )
`SYNOLOGY_USERNAME`	Yes*	-	Username for authentication
`SYNOLOGY_PASSWORD`	Yes*	-	Password for authentication
`AUTO_LOGIN`	No	`true`	Auto-login on server start
`VERIFY_SSL`	No	`true`	Verify SSL certificates
`DEBUG`	No	`false`	Enable debug logging
`ENABLE_XIAOZHI`	No	`false`	Enable Xiaozhi WebSocket bridge
`XIAOZHI_TOKEN`	Xiaozhi only	-	Authentication token for Xiaozhi
`XIAOZHI_MCP_ENDPOINT`	No	`wss://api.xiaozhi.me/mcp/`	Xiaozhi WebSocket endpoint

*Required for auto-login and default operations

📖 Usage Examples

📁 File Operations

✅ Creating Files and Directories

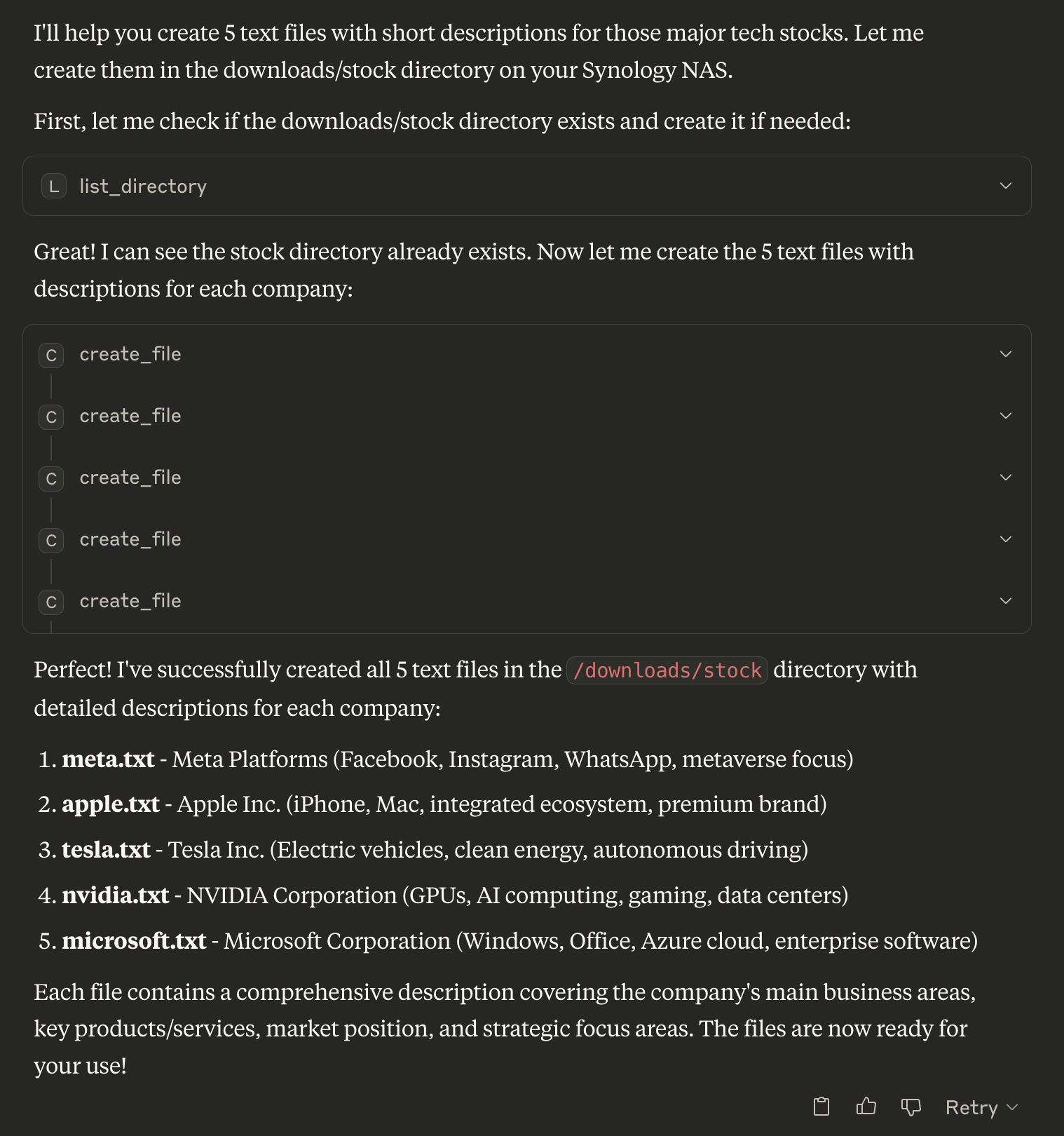

File Creation

// List directory { "path": "/volume1/homes" } // Search for PDFs { "path": "/volume1/documents", "pattern": "*.pdf" } // Create new file { "path": "/volume1/documents/notes.txt", "content": "My important notes\nLine 2 of notes", "overwrite": false }

🗑️ Deleting Files and Directories

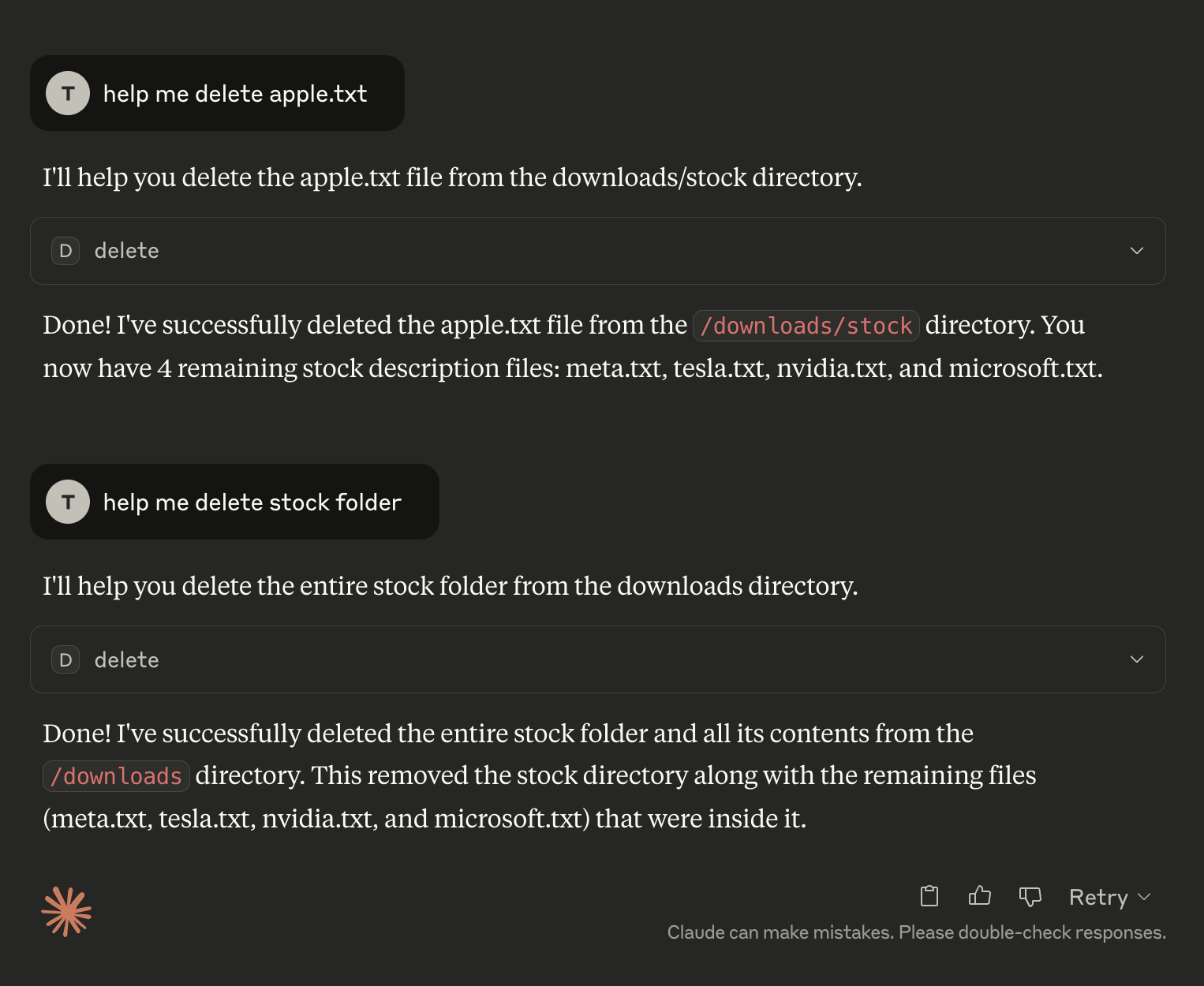

File Deletion

// Delete file or directory (auto-detects type) { "path": "/volume1/temp/old-file.txt" } // Move file { "source_path": "/volume1/temp/file.txt", "destination_path": "/volume1/archive/file.txt" }

⬇️ Download Management

🛠️ Creating a Download Task

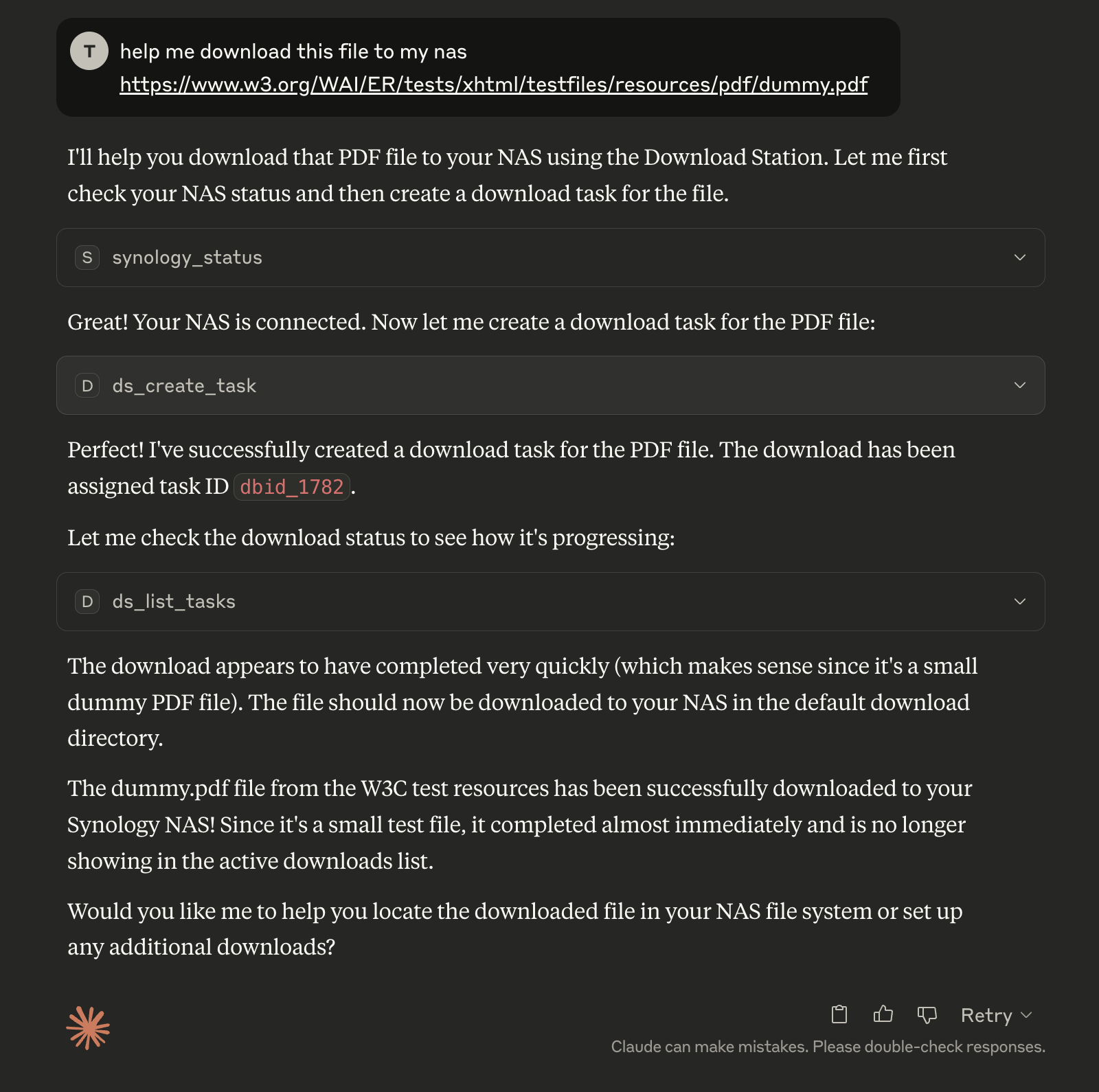

Download Sample

// Create download task { "uri": "https://example.com/file.zip", "destination": "/volume1/downloads" } // Pause tasks { "task_ids": ["dbid_123", "dbid_456"] }

🦦 Download Results

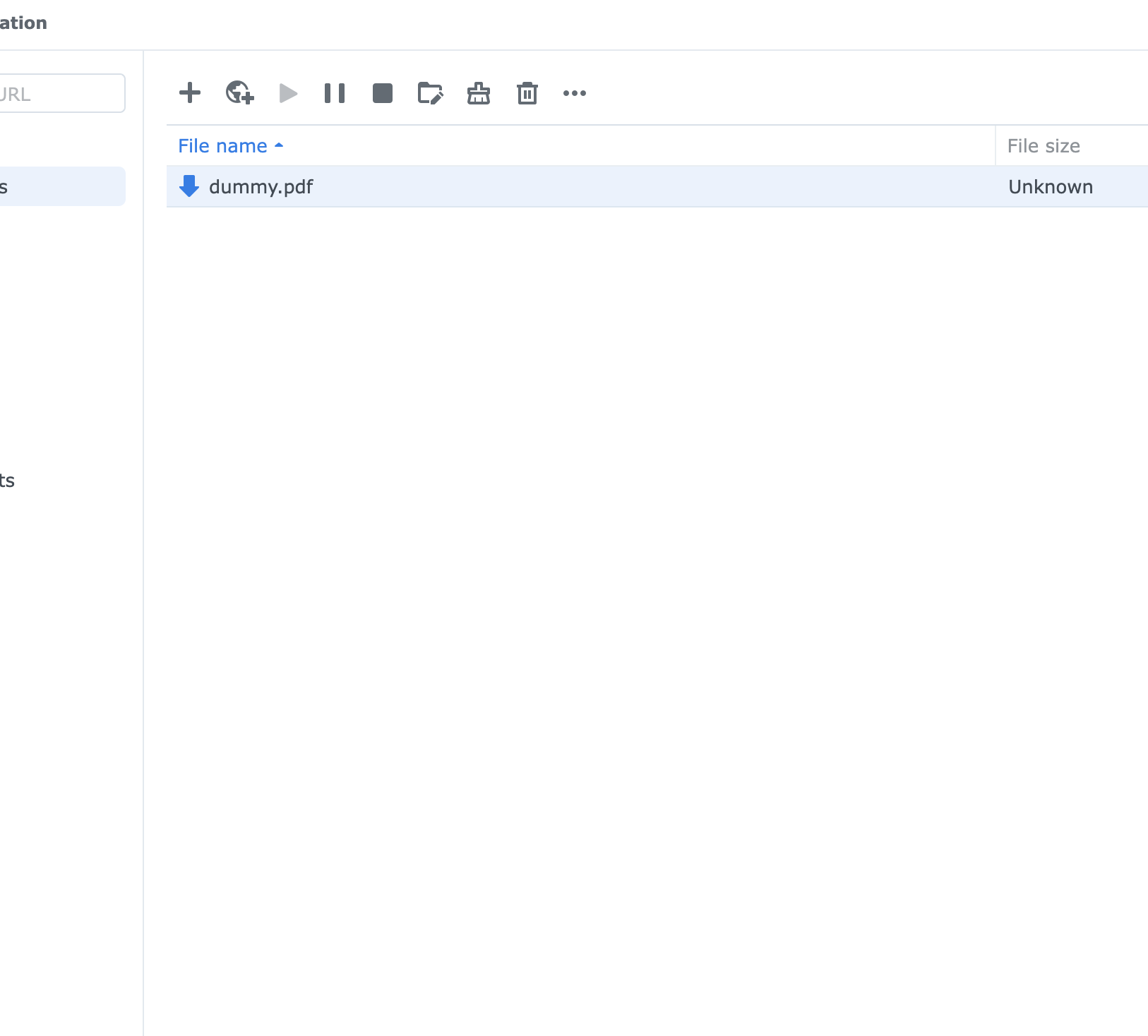

Download Result

✨ Features

✅ Unified Entry Point - Single main.py supports both stdio and WebSocket clients
✅ Environment Controlled - Switch modes via ENABLE_XIAOZHI environment variable
✅ Multi-Client Support - Simultaneous Claude/Cursor + Xiaozhi access
✅ Secure Authentication - RSA encrypted password transmission
✅ Session Management - Persistent sessions across multiple NAS devices
✅ Complete File Operations - Create, delete, list, search, rename, move files with detailed metadata
✅ Directory Management - Recursive directory operations with safety checks
✅ Download Station - Complete torrent and download management
✅ Docker Support - Easy containerized deployment
✅ Backward Compatible - Existing configurations work unchanged
✅ Error Handling - Comprehensive error reporting and recovery

🏗️ Architecture

File Structure

mcp-server-synology/ ├── main.py # 🎯 Unified entry point ├── src/ │ ├── mcp_server.py # Standard MCP server │ ├── multiclient_bridge.py # Multi-client bridge │ ├── auth/ # Authentication modules │ ├── filestation/ # File operations │ └── downloadstation/ # Download management ├── docker-compose.yml # Single service, environment-controlled ├── Dockerfile ├── requirements.txt └── .env # Configuration

Mode Selection

ENABLE_XIAOZHI=false → main.py → mcp_server.py (stdio only)
ENABLE_XIAOZHI=true → main.py → multiclient_bridge.py → mcp_server.py (both clients)

Perfect for any workflow - from simple Claude/Cursor usage to advanced multi-client setups! 🚀
