IBM AS400 ISeries MCP Server

by abstracta

IBM AS/400 ISeries MCP Server

This project implements a customizable MCP server to execute RTE protocol.

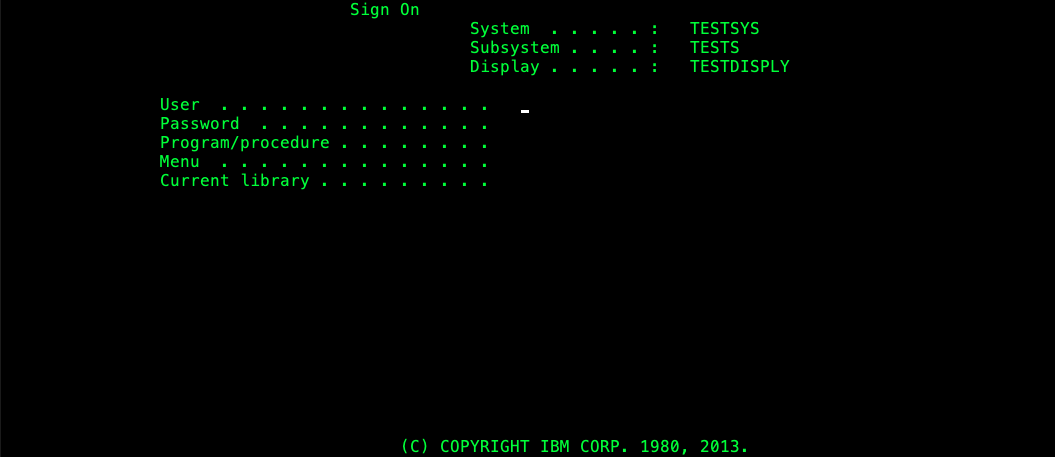

Example

demo

screen1

screen2

Development

Requirements

  • Java 21+*

Run

  • Compile project ./mvnw clean package
  • Run server on SSE mode
    java -jar target/rte-mcp-server-0.0.1-SNAPSHOT.jar
  • Run server on STDIO mode
    java -jar -Dspring.ai.mcp.server.stdio=true rte-mcp-server-0.0.1-SNAPSHOT.jar

RteUtils

The intention of this project is to be easily extensible. You can add your own MCP tools by using RteUtils class.

Also is needed to define the RTE connection parameters and the RTE flow in a yaml format.

RteUtils has the following methods implemented:

  • static RteProtocolClient connect(RteConfig config): Connects to the RTE server using the provided yaml.
  • static String executeSteps(RteProtocolClient client, List<RteStep> steps): Executes the provided steps on the RTE server and returns the screen result as a string using the provided yaml.

The method exposed as MCP tool should be annotated as @Tool and the class should be annotated as @Services like in the followig example:

@Service public class RteServiceLoginTool implements RteTool { private static final Logger logger = LoggerFactory.getLogger(RteServiceLoginTool.class); @Tool(description = "Execute an RTE transaction in a given server", name = "TN5250 Login") public String executeRteTransaction(String server, int port) { try { RteFlow flow = RteYamlLoader.load("/flow.yaml"); RteProtocolClient client = RteTool.connect(flow.getConfig(), server, port); return RteTool.executeSteps(client, flow.getSteps()); } catch (IOException | RteIOException | InterruptedException | TimeoutException e) { logger.error("Error executing RTE flow", e); return "Error executing RTE flow: " + e.getMessage(); } } }

The yaml defines the connection parameters and the steps to execute in the RTE server. This * yaml* file should have the following structure

config: server: localhost port: 2324 protocol: TN5250 terminalType: 'IBM-3477-FC: 27x132' sslType: None steps: - actions: - label: User input: TESTUSR - label: Password input: TESTPSW attentionKey: ENTER

Any number the steps can be defined in the yaml file.

  • server: The server address to connect to the RTE server.
  • port: The port to connect to the RTE server.
  • protocol: The supported protocols are TN5250, TN3270 and VT420
  • terminalType: The following table shows the supported terminal types for each protocol:
    ProtocolTerminal Type
    TN5250IBM-3477-FC: 27x132
    IBM-3179-2: 24x80
    TN3270IBM-3278-M2: 24x80
    IBM-3278-M2-E: 24x80
    IBM-3278-M3: 32x80
    IBM-3278-M3-E: 32x80
    IBM-3278-M4: 43x80
    IBM-3278-M4-E: 43x80
    IBM-3278-M5: 27x132
    IBM-3278-M5-E: 27x132
    VT420VT420-7: 24x80
  • sslType: The supported ssl types are None TLS and SSLv3.
  • steps: A list of actions representing the steps to execute in the RTE server.
  • actions: All the actions to execute in the current screen, any number of pairs label/input could be added.
    • label: The label of the field to fill in the RTE screen.
    • input: The value to fill in the field.
    • attentionKey: The key to press after filling the fields, it can be ENTER, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, F13, F14, F15, F16, F17, F18, F19, F20, F21, F22, F23, F24, ATTN, CLEAR, SYSRQ, RESET, ROLL_UP, ROLL_DN, PA1, PA2 or PA3.

Testing

An example of integration test is provided in the RteServiceLoginToolTest class, this test uses the MCPClient validate the list of tools and execute it.

note: to test the behaving of to tool is recommended to generate a dump of the RTE flow to be executed and mock it using wiresham

More information on how to test and debug the server could be found here

-
security - not tested
A
license - permissive license
-
quality - not tested

remote-capable server

The server can be hosted and run remotely because it primarily relies on remote services or has no dependency on the local environment.

This project implements a customizable MCP server to execute RTE protocol.

The intention of this project is to be easily extensible. You can add your own MCP tools by using RteUtils class.

Also is needed to define the RTE connection parameters and the RTE flow in a yaml format.

  1. Example
    1. Development
      1. Requirements
      2. Run
      3. RteUtils
    2. Testing
