Android MCP Toolkit for AI Agents

Small MCP server with two tools:

• Fast SVG → Android VectorDrawable conversion (cached, file or inline).

• adb logcat reader with package/pid/tag filters for quick crash triage.

Why this exists

The Mission: Bringing Native Android to the AI Agent Era

While the AI ecosystem flourishes with web-first tools, Android development often feels left behind. This MCP server is my answer to that gap—a dedicated bridge connecting AI Agents directly to the Android toolchain.

⚡ Zero-Friction Asset Conversion: Convert SVGs to VectorDrawables instantly without the overhead of launching Android Studio.

🔍 Direct Diagnostic Access: Empower agents to pull, filter, and analyze adb logcat streams (by package, PID, or tag) in real-time.

🤖 Agent-Native Architecture: Deliver structured, scriptable outputs that LLMs can parse and act upon efficiently.

🚀 Built for Extensibility: A solid foundation designed to grow, paving the way for future utilities like bitmap helpers and asset validation.

Pairing ideas

• Figma MCP: grab SVGs from designs, feed to convert-svg-to-android-drawable to get XML for Android resources.

• Debugging: while running the app, call read-adb-logcat with package name or tag to capture crashes and filtered logs without leaving the MCP client.

Previews

SVG to VectorDrawable

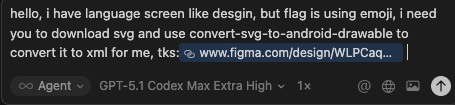

• Figma request → SVG extraction


• Flag conversion preview (single)


• Batch flag review (side-by-side)


• Batch run via MCP (console)


ADB logcat tool

• Crash capture prompt (inputs + filters)


• Response preview (summarized logcat)


Current tools

• convert-svg-to-android-drawable

  • Inputs: svg (inline) or svgPath (file path). Optional: outputPath, floatPrecision (default 2), fillBlack (default false), xmlTag (default false), tint, cache (default true).

  • Output: VectorDrawable XML text; also writes to disk when outputPath is provided.

  • Performance: LRU cache (32 entries) keyed by SVG + options plus fast reuse in-session.

  • Converter: vendored fork in vendor/svg2vectordrawable with fixes for rgb()/rgba(), hsl()/hsla(), and named colors. Upstream license: vendor/svg2vectordrawable/LICENSE (MIT).

• read-adb-logcat

  • Inputs: packageName (resolve pid via adb shell pidof -s), pid (explicit), tag, priority (V|D|I|W|E|F|S, default V), maxLines (tail count, default 200, max 2000), timeoutMs (default 5000, max 15000).

  • Behavior: Runs adb logcat -d -t <maxLines> with optional --pid=<pid> and -s tag:priority.

  • Output: Returns the logcat text; if no lines are returned, responds with a short message.

  • Notes: Requires adb available in PATH and a connected device/emulator. Provide at least one of packageName, pid, or tag to scope logs.

• get-pid-by-package

  • Inputs: packageName (required), timeoutMs (default 5000, max 15000).

  • Behavior: Resolves pid via adb shell pidof -s <package>.

  • Notes: Use this first, then pass pid to other logcat tools for noise-free filtering.

• get-current-activity

  • Inputs: timeoutMs (default 5000, max 15000).

  • Behavior: Parses adb shell dumpsys window for mCurrentFocus / mFocusedApp to reveal the currently focused window (useful even in single-activity setups to confirm top window).

• fetch-crash-stacktrace

  • Inputs: packageName (optional, resolves pid), maxLines (default 400, max 2000), timeoutMs (default 5000, max 15000).

  • Behavior: Pulls crash buffer via adb logcat -b crash -d -t <maxLines>; filters by --pid when package is provided.

• check-anr-state

  • Inputs: maxLines (default 400, max 2000), timeoutMs (default 5000, max 15000).

  • Behavior: Fetches ActivityManager:E *:S (recent ANR logs) and best-effort reads /data/anr/traces.txt (stat + tail 200 lines). May require root/debuggable.

• clear-logcat-buffer

  • Inputs: timeoutMs (default 5000, max 15000).

  • Behavior: Runs adb logcat -c to clear buffers before a new scenario.

Roadmap (planned)

• Additional MCP tools for Android assets (e.g., batch conversions, validations, optimizers).

• Optional resource prompts for common Android drawables/templates.

• Upcoming MCP utilities (planned):

  • Logcat reader: stream and filter Android logcat output via MCP.

  • Asset checkers: flag common drawable issues (size, alpha, color profile).

  • Batch conversions: multi-SVG to VectorDrawable with consistent options.

  • Template prompts: quick-start drawable/XML snippets for common patterns.

Quick start

• npm install

• npm run build

• node dist/index.js (stdio MCP server)

Run via npx

• Global: npx android-mcp-toolkit

Use in Cursor (MCP config)

Add to your Cursor settings JSON:

The npx call downloads the published package; no local path required.

Quick install via Cursor deep link:

• cursor://anysphere.cursor-deeplink/mcp/install?name=android-mcp-toolkit&config=eyJjb21tYW5kIjoibnB4IC15IGFuZHJvaWQtbWNwLXRvb2xraXQifQ%3D%3D

Examples

• Input SVG: sample_svg.svg

• Output VectorDrawable: examples/sample_svg.xml

Notes

• Transport: stdio via @modelcontextprotocol/sdk.

• Base deps kept minimal; everything needed to convert SVGs is vendored/included.

Contact

• nam.nv205106@gmail.com
