MCP-RLM

Recursive Language Model Agent

Infinite Context Reasoning for Large Language Models

MIT License Python 3.10+ arXiv MCP

Features • Installation • Configuration • Usage • Architecture

📋 Overview

MCP-RLM is an open-source implementation of the Recursive Language Models (RLMs) architecture introduced by researchers at MIT CSAIL (Zhang et al., 2025). It enables LLMs to process documents far beyond their context window limits through programmatic decomposition and recursive querying.

The Challenge

Traditional LLM Approach

MCP-RLM Approach

❌ Limited to 4K-128K token context windows

✅ Handles 10M+ tokens seamlessly

❌ Context degradation ("lost in the middle")

✅ Maintains accuracy through chunked analysis

❌ Expensive for long documents ($15/1M tokens)

✅ Cost-effective ($3/1M tokens, 80% savings)

❌ Single-pass processing bottleneck

✅ Parallel recursive decomposition

✨ Features

Core Capabilities

  • Infinite Context Processing - Handle documents with millions of tokens

  • Multi-Provider Support - OpenRouter, OpenAI, Anthropic, Ollama

  • Cost Optimization - Two-tier architecture reduces costs by 70-80%

  • High Accuracy - Isolated chunk analysis prevents hallucinations

Technical Highlights

  • MCP Protocol Integration - Works with Claude Desktop, Cursor, etc.

  • Flexible Provider System - Mix and match LLM providers

  • Python REPL Engine - Dynamic code generation for query planning

  • Free Tier Available - Use OpenRouter's free models

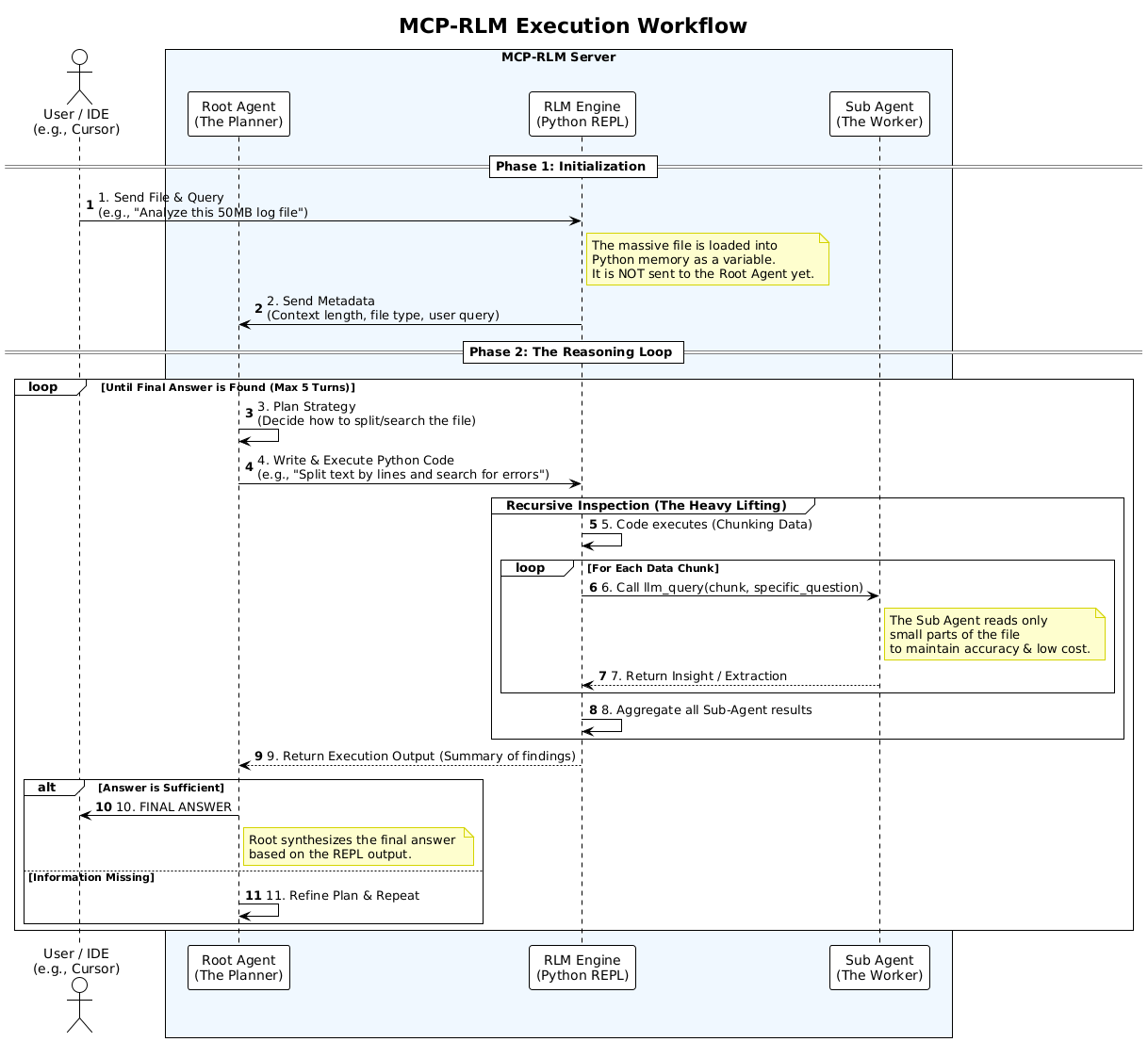

🏗 Architecture

MCP-RLM employs a two-tier agent system that separates strategic planning from execution:

graph TB subgraph Input A[User Query] B[Large Document<br/>10M+ tokens] end subgraph "Root Agent (Planner)" C[Analyze Metadata] D[Generate Strategy] E[Write Python Code] end subgraph "Execution Layer" F[Python REPL] G[Chunk Manager] end subgraph "Sub Agents (Workers)" H1[Worker 1] H2[Worker 2] H3[Worker N] end subgraph Output I[Aggregated Results] J[Final Answer] end A --> C B --> C C --> D D --> E E --> F F --> G G --> H1 G --> H2 G --> H3 H1 --> I H2 --> I H3 --> I I --> J style A fill:#e3f2fd style B fill:#e3f2fd style C fill:#fff9c4 style D fill:#fff9c4 style E fill:#fff9c4 style F fill:#f3e5f5 style G fill:#f3e5f5 style H1 fill:#e8f5e9 style H2 fill:#e8f5e9 style H3 fill:#e8f5e9 style I fill:#fce4ec style J fill:#fce4ec

Agent Roles

Agent

Responsibility

Characteristics

Model Recommendations

Root Agent

Strategic planning and code generation

• Views metadata only

• Generates Python strategies

• Called 5-10 times per query

• Claude 3.5 Sonnet

• GPT-4o

• Mistral Large

Sub Agent

Chunk-level data extraction

• Reads small segments

• Extracts specific info

• Called 100-1000+ times

• GPT-4o-mini

• Claude Haiku

• Qwen 2.5 (free)

🚀 Installation

Prerequisites

# Required - Python 3.10 or higher - pip package manager # API Keys (choose at least one) - OpenRouter API key (recommended for free tier) - OpenAI API key - Anthropic API key - Ollama (for local deployment)

Quick Start

# Clone the repository git clone https://github.com/MuhammadIndar/MCP-RLM.git cd MCP-RLM # Create virtual environment python -m venv venv # Activate virtual environment # On Linux/macOS: source venv/bin/activate # On Windows: venv\Scripts\activate # Install dependencies pip install -r requirements.txt # Configure environment cp .env.EXAMPLE .env # Edit .env with your API keys # Start the server python server.py

Expected Output:

MCP RLM Server Started... Listening on stdio...

⚙ Configuration

1. Environment Setup

Copy the example environment file:

cp .env.EXAMPLE .env

Edit .env with your credentials:

# OpenRouter (Recommended - includes free tier) OPENROUTER_API_KEY=sk-or-v1-xxxxx # OpenAI Official OPENAI_API_KEY=sk-proj-xxxxx # Anthropic Official ANTHROPIC_API_KEY=sk-ant-xxxxx # Ollama Local (optional, set to 'dummy' if not used) OLLAMA_API_KEY=dummy

2. Provider Configuration

The config.yaml file defines available LLM providers:

providers: openrouter: type: "openai_compatible" base_url: "https://openrouter.ai/api/v1" api_key_env: "OPENROUTER_API_KEY" ollama_local: type: "openai_compatible" base_url: "http://localhost:11434/v1" api_key_env: "OLLAMA_API_KEY" openai_official: type: "openai_compatible" base_url: "https://api.openai.com/v1" api_key_env: "OPENAI_API_KEY" anthropic_official: type: "anthropic" api_key_env: "ANTHROPIC_API_KEY"

3. Agent Configuration

Configure which models power each agent:

agents: root: provider_ref: "openrouter" model: "anthropic/claude-3.5-sonnet" temperature: 0.0 max_tokens: 4096 sub: provider_ref: "openrouter" model: "qwen/qwen-2.5-vl-7b-instruct:free" temperature: 0.0 max_tokens: 1000 system: max_loops: 5 # Maximum refinement iterations

Recommended Configurations

💻 MCP Client Integration

Supported Clients

MCP-RLM integrates with any MCP-compatible client:

Client

Platform

Use Case

Claude Desktop

Desktop App

General-purpose AI assistant

Cursor

IDE

Code analysis and development

Antigravity

IDE

AI-powered development

Configuration Instructions

1. Locate Configuration File

  • macOS: ~/Library/Application Support/Claude/claude_desktop_config.json

  • Windows: %APPDATA%\Claude\claude_desktop_config.json

2. Add Server Configuration

{ "mcpServers": { "rlm-researcher": { "command": "/absolute/path/to/MCP-RLM/venv/bin/python", "args": ["/absolute/path/to/MCP-RLM/server.py"] } } }

3. Restart Claude Desktop

The analyze_massive_document tool will now be available.

Example Usage:

Use the analyze_massive_document tool to read /path/to/large_log.txt and find all ERROR entries from the last 24 hours

1. Open MCP Settings

  • Navigate to Settings → Features → MCP

2. Add New Server

  • Click + Add New MCP Server

  • Fill in the configuration:

Field

Value

Name

RLM-Researcher

Type

stdio

Command

/absolute/path/to/MCP-RLM/venv/bin/python

Args

["/absolute/path/to/MCP-RLM/server.py"]

3. Save and Verify

  • Green indicator = Connected ✅

  • Red indicator = Configuration error ❌

Option A: Via UI

  1. Click the ... menu in the agent panel

  2. Select Manage MCP Servers

  3. Add server using the same configuration as Cursor

Option B: Manual Configuration

Edit ~/.gemini/antigravity/mcp_config.json:

{ "mcpServers": { "rlm-researcher": { "command": "/absolute/path/to/MCP-RLM/venv/bin/python", "args": ["/absolute/path/to/MCP-RLM/server.py"], "enabled": true } } }

📖 Usage

Available Tool

analyze_massive_document(file_path: str, query: str)

Analyzes large documents using recursive decomposition.

Parameters:

  • file_path (string): Absolute path to the document

  • query (string): Natural language query about the document

Returns: Analysis results as text

Example Queries

# Log Analysis "Analyze /var/log/nginx/access.log and identify the top 10 IP addresses making requests, along with their request patterns" # Codebase Security Audit "Scan the entire /src directory and find all instances where user input is directly used in SQL queries without sanitization" # Research Paper Synthesis "Read all PDF files in /papers/machine-learning/ and summarize the common evaluation metrics used across studies" # Configuration Validation "Parse /etc/config/*.yaml files and verify that all required security parameters are present and properly configured"

Performance Metrics

Based on testing with OpenRouter free tier models:

Document Size

Sub-Agent Calls

Processing Time

Cost (Free Tier)

10K tokens

~10

10 seconds

$0.00

100K tokens

~100

1 minute

$0.00

1M tokens

~500

5 minutes

$0.00

10M tokens

~2000

20 minutes

$0.00

Note: Times vary based on model speed and network latency

📁 Project Structure

MCP-RLM/ ├── assets/ │ └── RLM.png # Architecture diagram │ ├── .env.EXAMPLE # Environment variables template ├── .gitignore # Git ignore patterns ├── LICENSE # MIT License ├── README.md # This documentation ├── config.yaml # Provider & agent configuration ├── requirements.txt # Python dependencies │ ├── server.py # MCP server entry point ├── rlm_engine.py # Core RLM recursive logic ├── llm_factory.py # Multi-provider LLM abstraction └── prompts.py # System prompts for agents

Core Components

File

Purpose

server.py

MCP server implementation with FastMCP

rlm_engine.py

Recursive execution engine with Python REPL

llm_factory.py

Unified interface for OpenAI/Anthropic/Ollama

prompts.py

System prompt for Root Agent strategy

config.yaml

Provider and agent configuration

🔬 Research Foundation

This implementation is based on cutting-edge research from MIT CSAIL:

Recursive Language Models
Alex L. Zhang, Tim Kraska, Omar Khattab
MIT Computer Science & Artificial Intelligence Laboratory, 2025
📄 arXiv:2512.24601

Key Contributions

Concept

Description

Programmatic Decomposition

Treat long prompts as external databases accessible via code

Recursive Self-Querying

Break complex queries into manageable sub-problems

Two-Tier Architecture

Separate strategic planning from execution for cost efficiency

Infinite Scaling

Process documents orders of magnitude larger than context windows

Performance Gains

According to the paper, RLM achieves:

  • 94% accuracy on needle-in-haystack tasks (vs 23% for standard LLMs)

  • 79% cost reduction compared to loading full context

  • Linear scaling with document size instead of quadratic

🤝 Contributing

Contributions are welcome! Here's how you can help:

  1. Fork the repository

  2. Create a feature branch (git checkout -b feature/amazing-feature)

  3. Commit your changes (git commit -m 'Add amazing feature')

  4. Push to the branch (git push origin feature/amazing-feature)

  5. Open a Pull Request

Development Setup

# Install development dependencies pip install -r requirements.txt # Run linting flake8 *.py # Run type checking mypy *.py

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

MIT License - Copyright (c) 2025 MCP-RLM Contributors

Acknowledgments

  • MIT CSAIL - Original RLM research and theoretical foundation

  • Anthropic - Model Context Protocol specification and Claude models

  • OpenRouter - Free tier access to multiple LLM providers

  • Ollama - Local LLM deployment infrastructure

📞 Support

If you find this project useful, please consider giving it a ⭐

GitHub stars GitHub forks
