revit-mcp

English | 简体中文

Description

revit-mcp allows you to interact with Revit using the MCP protocol through MCP-supported clients (such as Claude, Cline, etc.).

This project is the server side (providing Tools to AI), and you need to use revit-mcp-plugin (driving Revit) in conjunction.

Join Discord | QQ Group

GitHub Copilot Compatibility

This MCP server has been updated to be fully compatible with GitHub Copilot. The tool schemas now properly include the required items property for array parameters, resolving validation errors that previously occurred when using array-type parameters with GitHub Copilot's MCP client.

Allow AI to get data from the Revit project
Allow AI to drive Revit to create, modify, and delete elements
Send AI-generated code to Revit to execute (may not be successful, successful rate is higher in some simple scenarios with clear requirements)

Requirements

nodejs 18+

Complete installation environment still needs to consider the needs of revit-mcp-plugin, please refer to revit-mcp-plugin

Installation

1. Build local MCP service

Install dependencies

npm install

Build

npm run build

2. Client configuration

Claude client

Claude client -> Settings > Developer > Edit Config > claude_desktop_config.json

{ "mcpServers": { "revit-mcp": { "command": "node", "args": ["<path to the built file>\\build\\index.js"] } } }

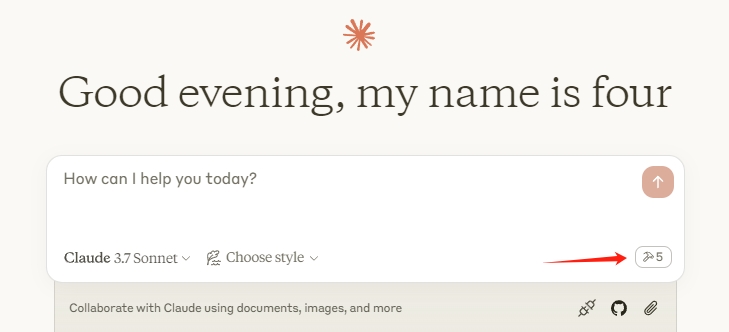

Restart the Claude client. When you see the hammer icon, it means the connection to the MCP service is normal.

GitHub Copilot

GitHub Copilot supports MCP servers natively. Configure the server in your VS Code settings or workspace configuration:

{ "mcp": { "servers": { "revit-mcp": { "command": "node", "args": ["<path to the built file>\\build\\index.js"] } } } }

Restart VS Code or reload the window to apply the configuration.

claude

Framework

flowchart LR CladueDesktop --> revit-mcp --> SocketService--commandName-->CommandlSet--command-->CommandExecute CommandManager --> CommandlSet CommandExecute --executeResult--> SocketService CommandProject1 --> CommandManager CommandProject2 --> CommandManager CommandProject... --> CommandManager subgraph ide1 [MCPClient] CladueDesktop end subgraph ide2 [MCPServer] revit-mcp end subgraph ide3 [Revit] subgraph ide3.1 [revit-mcp-plugin] SocketService CommandlSet CommandManager CommandExecute end end

Supported Tools

Name	Description
get_current_view_info	Get current view info
get_current_view_elements	Get current view elements
get_available_family_types	Get available family types in current project
get_selected_elements	Get selected elements
create_point_based_element	Create point based element (door, window, furniture)
create_line_based_element	Create line based element (wall, beam, pipe)
create_surface_based_element	Create surface based element (floor, ceiling)
delete_elements	Delete elements
reset_model	Reset model (delete process model when executing continuous dialog)
modify_element	Modify element's properties (instance parameters)
search_modules	Search for available modules
use_module	Use module
send_code_to_revit	Send code to Revit to execute
color_splash	Color elements based on a parameter value
tag_walls	Tag all walls in view
