Bio-OS MCP Server

A Model Context Protocol (MCP) based tool and prompt server for Bio-OS that provides workflow management and Docker image building capabilities.

Usage

We recommend using the CLINE extension for VSCode to interact with this MCP tool. There are two deployment options available: standalone installation on your local machine or using Code Server in a Miracle Cloud IES instance. Choose the option that best suits your needs.

Local Installation (Using MCP through local VSCode)

Prerequisites

Bio-OS MCP Server requires the following dependencies:

1. Install uv (Python package manager):

2. Install Cromwell (Workflow execution engine):

Installation

Clone the Bio-OS MCP Server repository:

Configuration

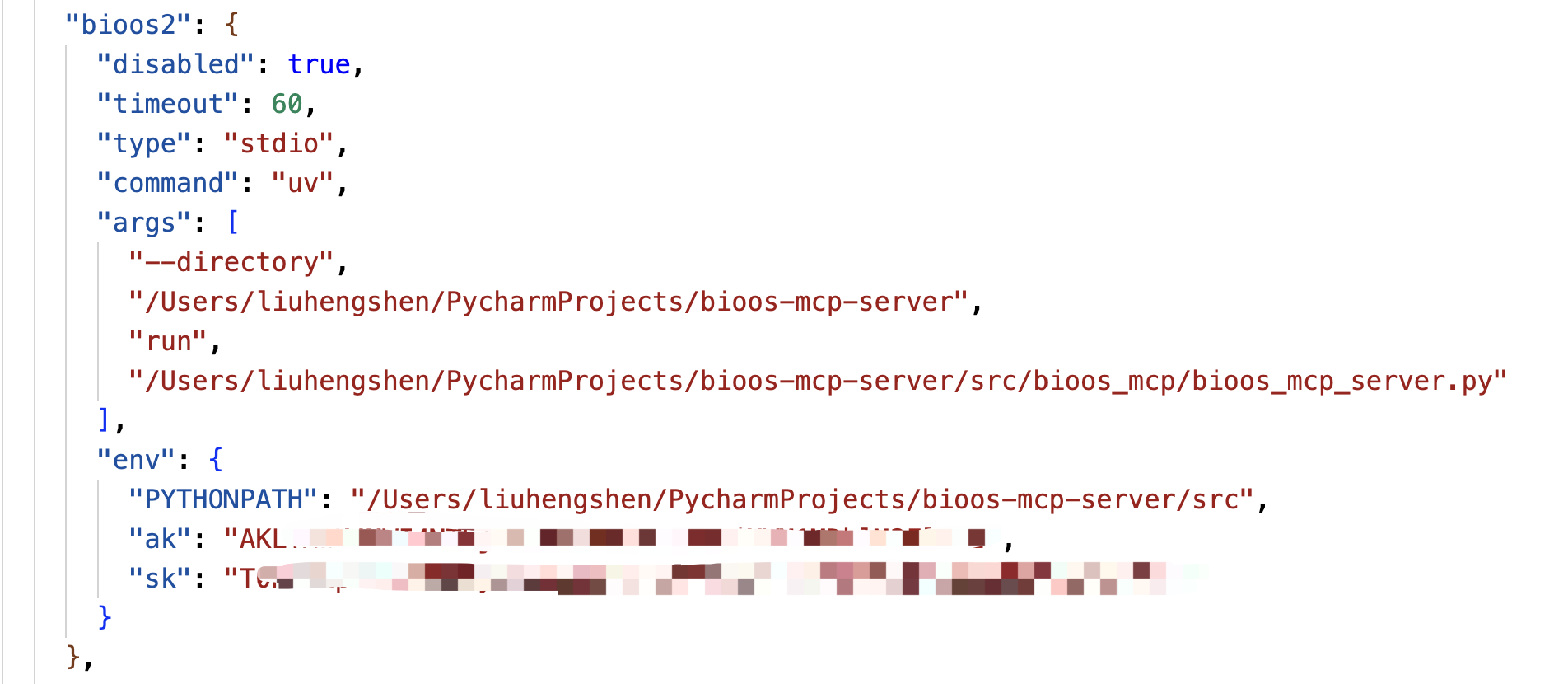

Configure the Bio-OS MCP Server script path in CLINE's MCP settings. Replace the placeholders with absolute paths to your installation:

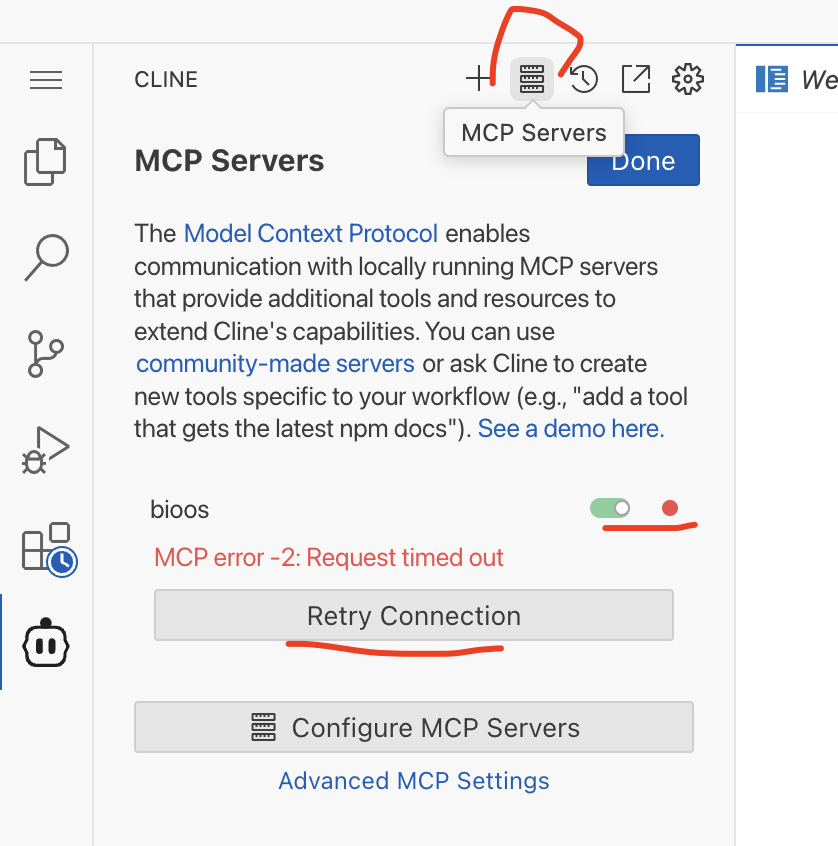

Follow the configuration process shown below. The Bio-OS MCP Server is ready to use when the status turns green. If the connection is unstable, click "Retry Connection":

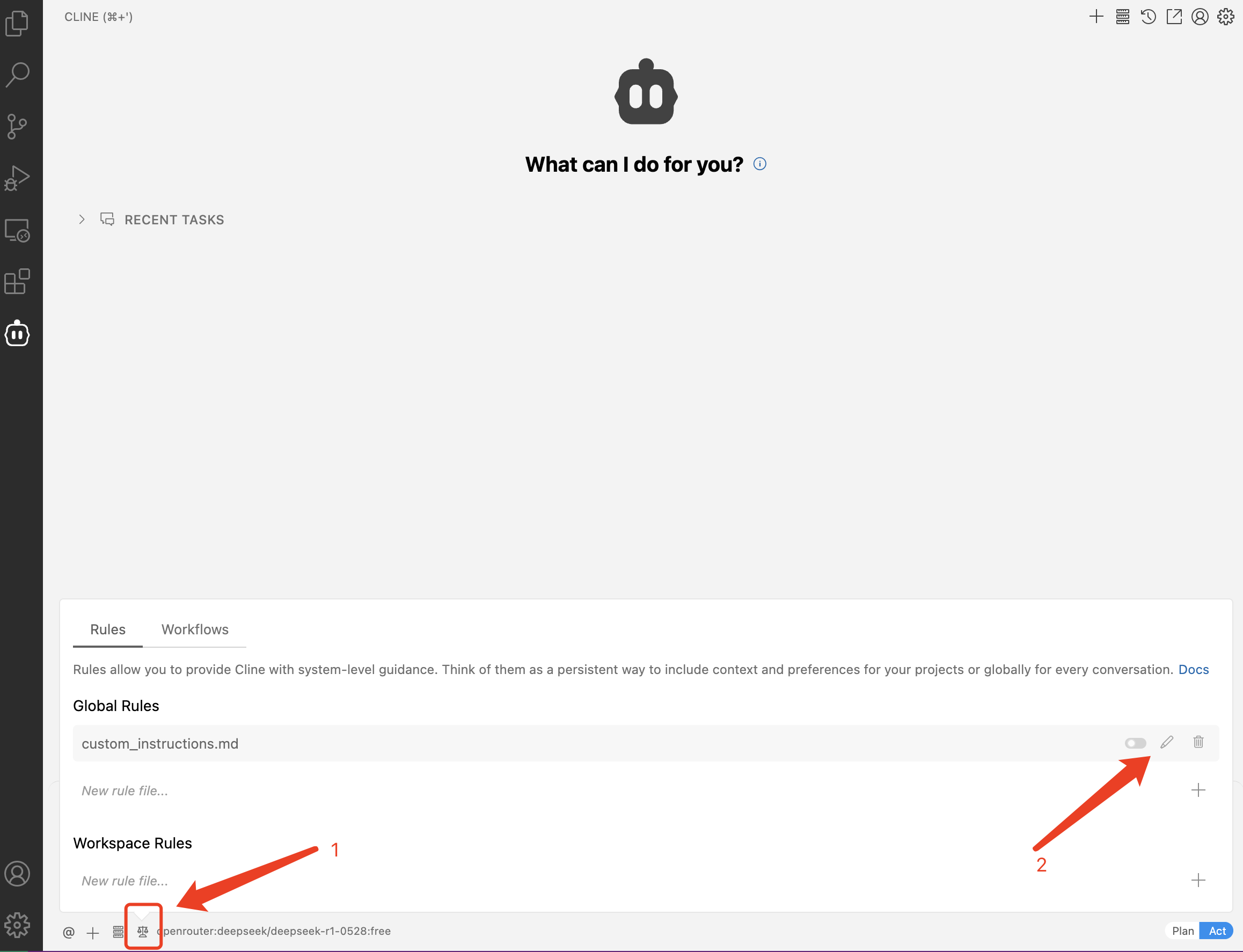

Since CLINE does not yet support MCP Prompts, copy the contents of bioos-mcp-prompt.md into CLINE's Custom Instructions for optimal experience:

After completing the configuration, you can begin using the Bio-OS MCP Server for development.

Cloud Installation (Using MCP through Code Server in Miracle Cloud)

For Miracle Cloud users, we provide a pre-configured Docker image with all Bio-OS MCP Server dependencies. Follow these steps:

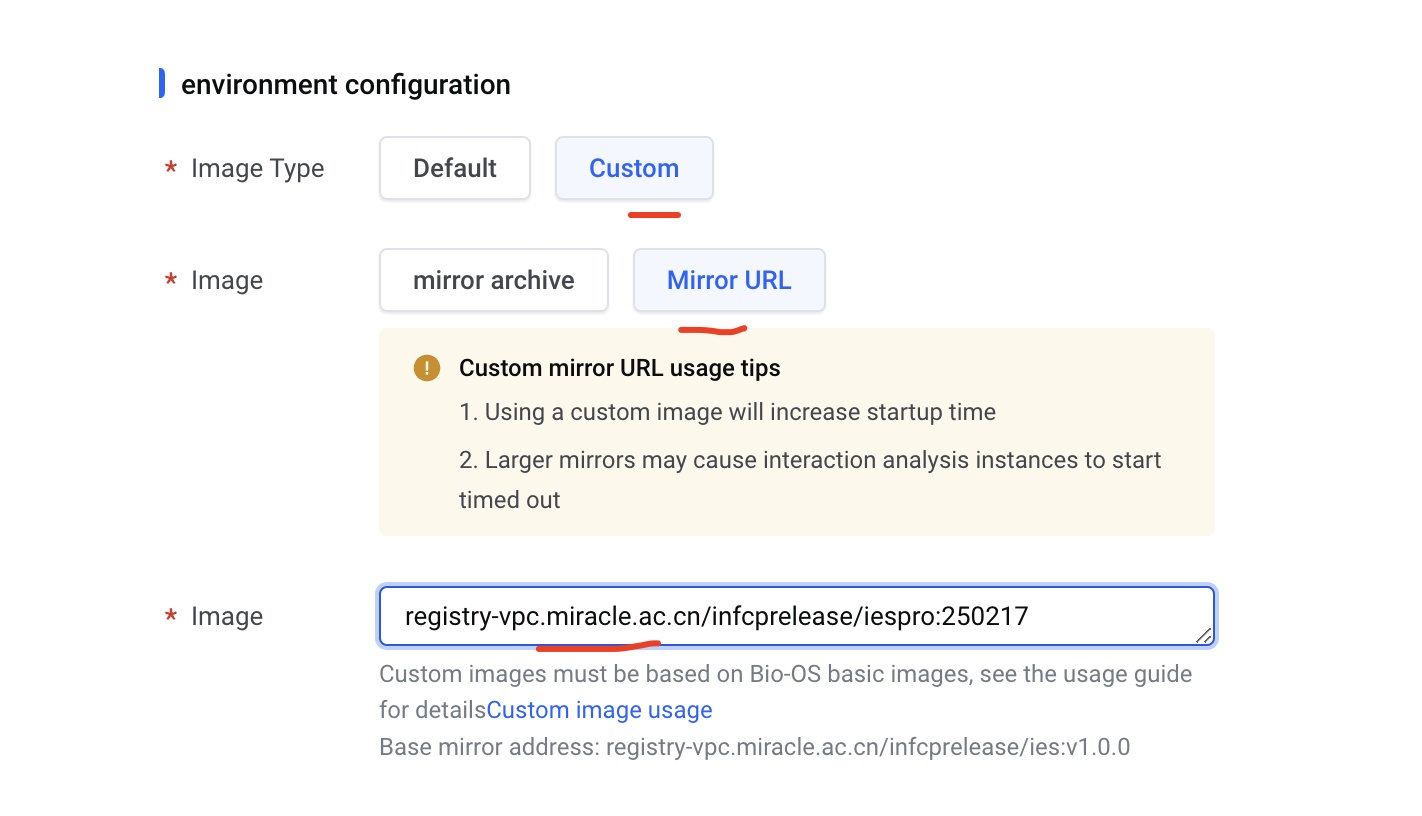

1. Launch an IES instance using the image: registry-vpc.miracle.ac.cn/infcprelease/iespro:250217

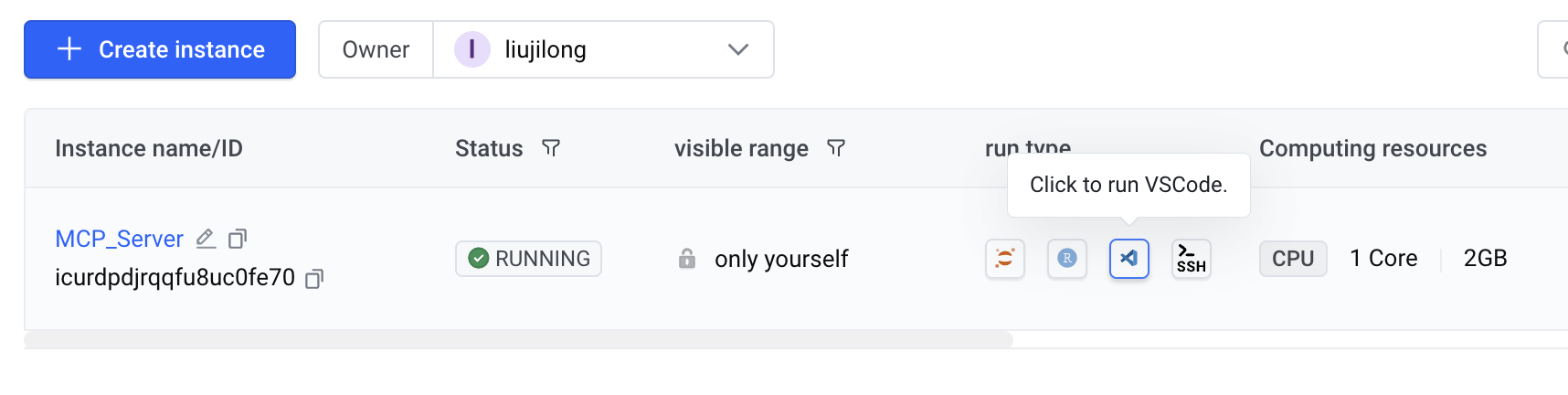

2. Select "Open with VSCode" to access the development environment:

Configuration in Code Server

1. Click the CLINE icon in the left sidebar and configure your LLM model credentials:

2. Navigate to CLINE's MCP configuration page and verify that Bio-OS MCP Server is properly connected. Use "Retry Connection" if needed:

Once configured, you can begin development with Bio-OS MCP Server.

Features

1. Workflow Management

• Submit and monitor workflows

• Upload WDL workflows

• Validate WDL scripts

• Generate input file templates

2. Docker Image Management

• Build Docker images

• Check build status

• Monitor build progress

• Retrieve build logs

API Reference

Tools

1. submit_workflow

   • Function: Submit Bio-OS workflow

   • Parameters:

     • ak: Access Key

     • sk: Secret Key

     • workspace_name: Workspace name

     • workflow_name: Workflow name

     • input_json: Input JSON file path

2. import_workflow

   • Function: Upload WDL workflow to Bio-OS system

   • Parameters:

     • ak: Access Key

     • sk: Secret Key

     • workspace_name: Workspace name

     • workflow_name: Workflow name

     • workflow_source: WDL file path

     • workflow_desc: Workflow description

3. validate_wdl

   • Function: Validate WDL workflow script

   • Parameters:

     • wdl_path: WDL file path

4. generate_inputs

   • Function: Generate WDL input file template

   • Parameters:

     • wdl_path: WDL file path

5. build_docker_image

   • Function: Build Docker image

   • Parameters:

     • registry: Image registry address

     • namespace_name: Namespace

     • repo_name: Repository name

     • tag: Version tag

     • source_path: Dockerfile or archive path

6. check_build_status

   • Function: Check Docker image build status

   • Parameters:

     • task_id: Build task ID

Prompts (Not supported in Cline yet)

1. wdl_development_workflow_prompt

   • Function: Generate complete guidance for WDL workflow development

   • Content:

     • WDL script development steps

     • Task structure guidelines

     • Runtime configuration requirements

     • Docker image preparation guide

2. wdl_runtime_prompt

   • Function: Generate WDL runtime configuration template

   • Content:

     • Required docker image configuration

     • Memory settings (default: 8 GB)

     • Disk settings (default: 20 GB)

     • CPU settings (default: 4)

3. workflow_input_prompt

   • Function: Generate workflow input preparation guide

   • Content:

     • Input file preparation steps

     • Parameter validation guidelines

     • File path requirements

4. workflow_submission_prompt

   • Function: Generate workflow submission template

   • Content:

     • Required credentials (ak/sk)

     • Workspace configuration

     • Input file requirements

5. docker_build_prompt

   • Function: Generate Docker build process guide

   • Content:

     • Dockerfile generation steps

     • Build configuration requirements

     • Image registry settings

     • Build status monitoring guide

Note: Prompts are currently not supported in Cline environment. These prompts are only available when using the MCP server directly or through Claude Desktop.

✅ Certified by MCPHub

This server is officially certified by MCPHub. Verify certification status on our MCPHub profile page.

Contributing

Issues and Pull Requests are welcome.

License

MIT License
